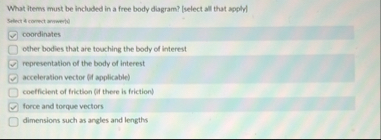

## Answer Analysis The question asks which items **must** be included in a free body diagram (FBD). Let's review each option: ### Must be included: - **Representation of the body of interest**: YES — You must show the object being analyzed. - **Force and torque vectors**: YES — All external forces (and torques, if relevant) acting on the body must be shown. - **Other bodies that are touching the body of interest**: YES — *But* in the form of the forces they exert, not as detailed objects themselves. Usually, only the forces are drawn, not the other bodies. ### Sometimes included (optional based on context): - **Acceleration vector (if applicable)**: OPTIONAL — Sometimes shown to clarify direction of motion, but not required for a FBD. - **Coordinates**: OPTIONAL — Sometimes axes are added for clarity, but not always required. - **Coefficient of friction (if there is friction)**: OPTIONAL — Usually, the frictional force is shown, not the coefficient itself. - **Dimensions such as angles and lengths**: OPTIONAL — Only if needed for problem-solving, not a strict requirement. --- ## Correct Choices (Must Include) - **Representation of the body of interest** - **Force and torque vectors** *Other options are either not required or only included if helpful for problem-solving.* --- ## Free Body Diagram Essentials A proper free body diagram must include: 1. **The isolated body/object** (representation of the body of interest). 2. **All external forces (and torques, if applicable)** acting on the body, shown as arrows. 3. Optionally, a **coordinate system**, **acceleration vector**, or **dimensions** if needed for clarity. --- ### **Summary Table** | Item | Must Include? | |------------------------------------------------|---------------| | Representation of the body of interest | Yes | | Force and torque vectors | Yes | | Other bodies touching the body (as objects) | No (show forces instead) | | Acceleration vector (if applicable) | Optional | | Coordinates | Optional | | Coefficient of friction (if there is friction) | Optional | | Dimensions such as angles and lengths | Optional |

# Free Body Diagram Essentials ## 1. Introduction A free body diagram (FBD) is a graphical representation used in physics and engineering to visualize the forces acting on a body. It isolates the object of interest, allowing for the analysis of the forces and torques that influence its motion. The essential components of an FBD include: - **Representation of the body**: The object being analyzed is depicted as a simple shape. - **Forces and torques**: All external forces acting on the body are represented as arrows, indicating both magnitude and direction. - **Contact interactions**: Forces from other bodies that are in contact with the object of interest. Understanding these components is crucial for accurately constructing an FBD and solving problems related to dynamics and statics. ### Explanation The introduction establishes the fundamental aspects of free body diagrams, highlighting their importance in simplifying complex physical interactions. By isolating an object and clearly illustrating the forces at play, an FBD provides a clear framework for applying Newton's laws of motion and solving for unknowns such as acceleration, tension, or friction. ## 2. Identifying the Correct Option Among the Choices The correct choices that must be included in a free body diagram are: - **Representation of the body of interest** - **Force and torque vectors** ### Explanation These components are critical for a comprehensive FBD. The representation of the body provides a clear visual reference, while the force and torque vectors convey the external influences acting on the body. This information is essential for conducting further analysis, such as applying Newton's second law (\( F = ma \)). ## 3. Analysis of Why Other Options Are Incorrect The options that do not need to be included in a free body diagram are: - **Coordinates**: While helpful for clarity, they are not essential for the FBD itself. - **Acceleration vector (if applicable)**: Not required; FBDs focus on forces, not motion. - **Coefficient of friction (if there is friction)**: It is not depicted in the FBD; the frictional force itself is illustrated instead. - **Dimensions such as angles and lengths**: These are not necessary unless they are needed for specific calculations. ### Explanation Each of these options is either optional or related to additional calculations rather than the fundamental purpose of an FBD. An FBD's primary role is to depict forces acting on a body, and additional contextual information may be provided as required for specific problems. ## Conclusion In summary, a free body diagram must include a representation of the body of interest and the force and torque vectors acting on it. Options such as coordinates, acceleration vectors, coefficients of friction, and dimensions are not mandatory but may enhance clarity in specific contexts. Understanding these requirements ensures the effective use of free body diagrams in problem-solving within physics and engineering.
