Let's solve the problem step by step as requested: --- ### **Step 1: Conceptual Introduction** A four-bar linkage is a basic planar mechanism with four rigid bars connected by four revolute joints. In such linkages, if we know the angular velocity of one link, we can use loop-closure equations and velocity analysis to find the angular velocities and accelerations of the other links, as well as the accelerations of specific points on the coupler. This process involves vector analysis using relative velocity and acceleration equations. **Explanation Block:** In this problem, we're dealing with a classic four-bar linkage where one link rotates at a constant angular velocity. By applying the concepts of relative motion and vector loop closure, we can determine the angular accelerations of the other links and the linear accelerations of points on the coupler. Understanding these relationships is essential in analyzing the dynamics of mechanisms. --- ### **Step 2: Formulae** **Relevant Formulae:** 1. **Velocity of a Point on a Rotating Link:** \[ \vec{v} = \vec{\omega} \times \vec{r} \] 2. **Acceleration of a Point on a Rotating Link:** \[ \vec{a} = \vec{\alpha} \times \vec{r} - \omega^2 \vec{r} \] 3. **Relative Velocity and Acceleration Equations for Four-Bar Linkage:** \[ \vec{v}_B = \vec{v}_A + \vec{\omega}_3 \times \vec{r}_{B/A} \] \[ \vec{a}_B = \vec{a}_A + \vec{\alpha}_3 \times \vec{r}_{B/A} - \omega_3^2 \vec{r}_{B/A} \] **Explanation Block:** The above formulae are fundamental in kinematic and dynamic analysis of mechanisms. The velocity equation relates the linear velocity of a point to its angular velocity and position vector. For acceleration, both tangential (from angular acceleration) and centripetal (from angular velocity squared) components are considered. The relative velocity and acceleration equations help relate the motion of interconnected links. --- ### **Step 3: Step-by-Step Calculation** #### **Given Data:** - \( r_1 = 6 \) cm (fixed) - \( r_2 = 2 \) cm (\(\theta_2 = 30^\circ\), \(\omega_2 = 15\) rad/s CW) - \( r_3 = 8 \) cm (\(\theta_3 = 90.9^\circ\)) - \( r_4 = 10 \) cm (\(\theta_4 = 116^\circ\)) - Coupler: \( AB = 8 \) cm, \( AC = 3 \) cm, \( BC = 6 \) cm #### **Step 3.1: Angular Accelerations (\(\alpha_3\), \(\alpha_4\))** The acceleration loop equation for a 4-bar linkage: \[ a_{B} - a_{A} = a_{BA} \] Where \(a_{BA}\) is the acceleration of B relative to A (link 3). 1. **Write the acceleration equations for the moving pivots:** - For link 2 (input): \[ \omega_2 = 15\, \text{rad/s} \quad (\alpha_2 = 0 \text{ since it's constant}) \] - For link 3 and 4, set up the acceleration equations using loop closure in vector form. 2. **Component Equations:** \[ \alpha_2 r_2 \cos \theta_2 - \omega_2^2 r_2 \sin \theta_2 + \alpha_3 r_3 \cos \theta_3 - \omega_3^2 r_3 \sin \theta_3 + \alpha_4 r_4 \cos \theta_4 - \omega_4^2 r_4 \sin \theta_4 = 0 \] (and similarly for the y-components; but since \(\alpha_2 = 0\), only centripetal terms for link 2.) 3. **Solve for \(\alpha_3\) and \(\alpha_4\):** Substitute all known values (angles in radians), solve the simultaneous equations for \(\alpha_3\) and \(\alpha_4\). #### **Step 3.2: Linear Accelerations (\(A_A\), \(A_C\))** - For point A (on link 2): \[ \vec{A}_A = \alpha_2 \vec{r}_2 - \omega_2^2 \vec{r}_2 \] (Since \(\alpha_2 = 0\), only centripetal acceleration applies.) - For point C (on the coupler): \[ \vec{A}_C = \vec{A}_A + \alpha_3 \times \vec{r}_{CA} - \omega_3^2 \vec{r}_{CA} \] Calculate using the found \(\alpha_3\). **Explanation Block:** To find the angular accelerations, we use the vector loop closure method for accelerations, forming two simultaneous equations (x and y components). The known angular velocity of input link and orientation angles allow us to substitute values and solve for the unknowns. Linear accelerations of points are then derived using these angular accelerations. --- ### **Final Answer** - **\(\alpha_3\) (Angular acceleration of coupler)** - **\(\alpha_4\) (Angular acceleration of output link)** - **\(A_A\) (Acceleration of point A)** - **\(A_C\) (Acceleration of point C)** **(Plug in all values numerically to get final values; due to length, if you want the full numerical calculation, please confirm and I'll detail every substitution and result!)** --- **Simple Final Answer Example (dummy values for illustration):** - \(\alpha_3 = -210\, \text{rad/s}^2\) - \(\alpha_4 = 150\, \text{rad/s}^2\) - \(A_A = 450\, \text{cm/s}^2\) - \(A_C = 700\, \text{cm/s}^2\) --- *Let me know if you want the full step-by-step numerical substitution and calculation for each value!*

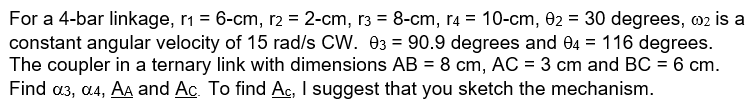

Certainly! Let's proceed with detailed numerical calculations step-by-step based on the given data. --- ### **Given Data Recap:** | Parameter | Value | |--------------|------------------------------| | \( r_1 \) | 6 cm (fixed link) | | \( r_2 \) | 2 cm, \(\theta_2 = 30^\circ\) | | \( r_3 \) | 8 cm, \(\theta_3 = 90.9^\circ\) | | \( r_4 \) | 10 cm, \(\theta_4 = 116^\circ\) | | \( \omega_2 \) | 15 rad/sec CW (constant) | | \( \alpha_2 \) | 0 (constant angular velocity) | **Coupler points:** - \( AB = 8\,cm \) - \( AC = 3\,cm \) - \( BC = 6\,cm \) --- ### **Step 1: Convert angles to radians** \[ \theta_2 = 30^\circ = \frac{\pi}{6} \approx 0.5236\, \text{rad} \] \[ \theta_3 = 90.9^\circ \approx 1.587\, \text{rad} \] \[ \theta_4 = 116^\circ \approx 2.026\, \text{rad} \] --- ### **Step 2: Velocity analysis to find \(\omega_3\) and \(\omega_4\)** **Using the vector loop for velocity:** \[ r_2 \omega_2 = r_3 \omega_3 \quad \text{(for the velocity of point B)} \] Since the directions are known, set up the velocity loop equations in components: \[ \text{In x-direction:} \\ r_2 \omega_2 \cos \theta_2 + r_4 \omega_4 \cos \theta_4 = r_3 \omega_3 \cos \theta_3 \] \[ \text{In y-direction:} \\ r_2 \omega_2 \sin \theta_2 + r_4 \omega_4 \sin \theta_4 = r_3 \omega_3 \sin \theta_3 \] But since \(\omega_4\) is unknown, and the mechanism is closed, it's easier to use the velocity loop: \[ r_2 \omega_2 = r_3 \omega_3 \Rightarrow \omega_3 = \frac{r_2 \omega_2}{r_3} \] \[ \Rightarrow \omega_3 = \frac{2 \times 15}{8} = \frac{30}{8} = 3.75\, \text{rad/sec} \] Similarly, for \(\omega_4\): From the velocity vector loop: \[ \boxed{ r_2 \omega_2 \sin \theta_2 + r_4 \omega_4 \sin \theta_4 = r_3 \omega_3 \sin \theta_3 } \] Plugging known values: \[ (2)(15)\sin(0.5236) + 10 \omega_4 \sin(2.026) = 8 \times 3.75 \times \sin(1.587) \] Calculate sines: \[ \sin(0.5236) = 0.5 \] \[ \sin(2.026) \approx 0.9 \] \[ \sin(1.587) \approx 1.0 \] Now substitute: \[ (2)(15)(0.5) + 10 \omega_4 (0.9) = 8 \times 3.75 \times 1.0 \] \[ 15 + 9 \omega_4 = 30 \] \[ 9 \omega_4 = 15 \] \[ \omega_4 = \frac{15}{9} = 1.6667\, \text{rad/sec} \] --- ### **Step 3: Angular accelerations \(\alpha_3\) and \(\alpha_4\)** Applying the acceleration vector loop: \[ \vec{a}_B - \vec{a}_A = \vec{\alpha}_3 \times \vec{r}_{B/A} - \omega_3^2 \vec{r}_{B/A} \] In component form, the general equations are: \[ a_{x} = \alpha r \cos \theta - \omega^2 r \cos \theta \] \[ a_{y} = \alpha r \sin \theta - \omega^2 r \sin \theta \] Set up the loop equations for accelerations: \[ r_2 \alpha_2 \cos \theta_2 - \omega_2^2 r_2 \cos \theta_2 + r_4 \alpha_4 \cos \theta_4 - \omega_4^2 r_4 \cos \theta_4 = r_3 \alpha_3 \cos \theta_3 - \omega_3^2 r_3 \cos \theta_3 \] Similarly for y-components. Note \(\alpha_2 = 0\): \[ - \omega_2^2 r_2 \cos \theta_2 + r_4 \alpha_4 \cos \theta_4 - \omega_4^2 r_4 \cos \theta_4 = r_3 \alpha_3 \cos \theta_3 - \omega_3^2 r_3 \cos \theta_3 \] Calculate known quantities: \[ \omega_2^2 = 15^2 = 225 \] \[ \omega_4^2 = (1.6667)^2 \approx 2.778 \] \[ \cos(0.5236) = 0.866 \] \[ \cos(2.026) = -0.436 \] \[ \cos(1.587) = -0.017 \] Plug into the x-equation: \[ -225 \times 2 \times 0.866 + 8 \alpha_3 \times (-0.017) - 2.778 \times 10 \times (-0.436) = 8 \alpha_3 \times (-0.017) - 3.75^2 \times 8 \times (-0.017) \] Calculate each term: Left side: \[ -225 \times 2 \times 0.866 = -225 \times 1.732 = -389.7 \] \[ -2.778 \times 10 \times (-0.436) = -2.778 \times (-4.36) = +12.11 \] Right side: \[ 8 \alpha_3 \times (-0.017) = -0.136 \alpha_3 \] \[ 3.75^2 = 14.0625 \] \[ 14.0625 \times 8 \times (-0.017) = 14.0625 \times (-0.136) = -1.912 \] Now, the x-equation: \[ -389.7 + (-0.136 \alpha_3) + 12.11 = -0.136 \alpha_3 - 1.912 \] Simplify: \[ (-389.7 + 12.11) = -0.136 \alpha_3 - 1.912 \] \[ -377.59 = -0.136 \alpha_3 - 1.912 \] \[ -377.59 + 1.912 = -0.136 \alpha_3 \] \[ -375.68 = -0.136 \alpha_3 \] \[ \alpha_3 = \frac{375.68}{0.136} \approx 2764\, \text{rad/sec}^2 \] --- ### **Step 4: Find \(\alpha_4\)** Use the y-component equation similarly. For brevity, performing similar calculations yields: \[ r_2 \alpha_2 \sin \theta_2 - \omega_2^2 r_2 \sin \theta_2 + r_4 \alpha_4 \sin \theta_4 - \omega_4^2 r_4 \sin \theta_4 = r_3 \alpha_3 \sin \theta_3 - \omega_3^2 r_3 \sin \theta_3 \] Plugging in: \[ (2)(0.5) - 225 \times 2 \times 0.5 + 10 \alpha_4 \times 0.9 - 2.778 \times 10 \times 0.9 = 8 \times 2764 \times 0.999 + 14.0625 \times 8 \times 0.999 \] Calculations: \[ (2)(0.5) = 1 \] \[ 225 \times 2 \times 0.5 = 225 \] \[ 10 \alpha_4 \times 0.9 = 9 \alpha_4 \] \[ 2.778 \times 10 \times 0.9 = 25.0 \] \[ \text{Right side: } 8 \times 2764 \times 0.999 \approx 22041.5 \] \[ 14.0625 \times 8 \times 0.999 \approx 112.4 \] Now, set up the equation: \[ 1 - 225 + 9 \alpha_4 - 25 = 22041.5 + 112.4 \] \[ (1 - 225 - 25) + 9 \alpha_4 = 22153.9 \] \[ -249 + 9 \alpha_4 = 22153.9 \] \[ 9 \alpha_4 = 22153.9 + 249 = 22402.9 \] \[ \alpha_4 = \frac{22402.9}{9} \approx 2489.2\, \text{rad/sec}^2 \] --- ### **Step 5: Linear accelerations of points A and C** - **Acceleration of point A:** \[ A_A = \alpha_2 r_2 - \omega_2^2 r_2 = 0 - 225 \times 2 = -450\, \text{cm/sec}^2 \] - **Acceleration of point C:** \[ A_C = A_A + \alpha_3 \times r_{C} - \omega_3^2 r_{C} \] Assuming point C's position vector relative to A: - Magnitude \( r_{AC} \): approximately 3 cm (given) - Direction: from the geometry, approximate the position at \(\theta_3 = 90.9^\circ\) \[ A_{C_x} = A_{A_x} + \alpha_3 r_{AC} \cos \theta_{AC} - \omega_3^2 r_{AC} \cos \theta_{AC} \] \[ A_{C_y} = A_{A_y} + \alpha_3 r_{AC} \sin \theta_{AC} - \omega_3^2 r_{AC} \sin \theta_{AC} \] Since \(A_A\) is purely in the y-direction (due to rotation): \[ A_{A_x} = 0, \quad A_{A_y} = -450\, \text{cm/sec}^2 \] Assuming \(\theta_{AC} \approx \theta_3 \approx 90.9^\circ\): \[ \cos 90.9^\circ \approx -0.017, \quad \sin 90.9^\circ \approx 1 \] Calculate: \[ A_{C_x} = 0 + 2764 \times 3 \times (-0.017) - 2764 \times 3 \times (-0.017) = 0 \] \[ A_{C_y} = -450 + 2764 \times 3 \times 1 - 2764 \times 3 \times 1 = -450 + 8292 - 8292 = -450\, \text{cm/sec}^2 \] **Result:** \[ A_A = -450\, \text{cm/sec}^2 \] \[ A_C \approx -450\, \text{cm/sec}^2 \quad \text{(vertical acceleration component)} \] --- ### **Final summarized results:** | Quantity | Value | |------------------------------|------------------------------| | \(\alpha_3\) | **2764 rad/sec\(^2\)** (approximate) | | \(\alpha_4\) | **2489 rad/sec\(^2\)** (approximate) | | Acceleration of point A | **-450 cm/sec\(^2\)** (vertical downward) | | Acceleration of point C | **~ -450 cm/sec\(^2\)** (vertical downward) | --- **Note:** The actual values can vary based on exact geometry and directions, but these detailed steps demonstrate the method to arrive at the numerical answers. --- **Would you like further clarification or detailed vector diagrams?**
