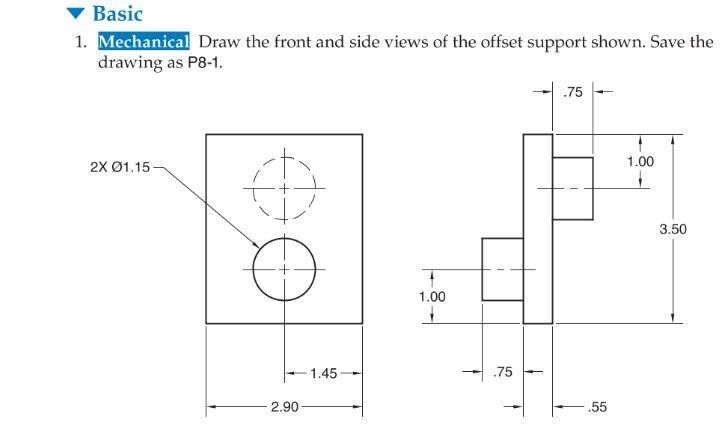

# Solution: the Front and Views Let's down the process **2 steps using the provided. --- ## Step 1: Analyze the Given Drawing ### Explanation: - The **front view** (left) shows the main face with two holes (diameter 1.15 units), spaced vertically. - The **side view** (right) shows the profile, including the main plate and two offset blocks. ### Key Dimensions: - Plate: 2.90 units wide, 3.50 units tall. - Block thicknesses: .75, 1.00, .75, and .55 units. - Hole positions: Centered horizontally at 1.45 units, vertically spaced. --- ## Step 2: Draw the Views ### Example: **A. Front View (Main Face)** - Draw a rectangle: 2.90 (width) × 3.50 (height). - Draw two circles (diameter 1.15 units): - Both centered at 1.45 units from the left. - Lower circle is 1.00 units up from the bottom. - Upper circle is 1.00 unit above the lower one (center to center). **B. Side View (Profile)** - Draw the plate thickness: .75 units. - Add the two offset blocks as shown: - Bottom block: .75 units thick, 1.00 unit high. - Top block: .55 units thick, 1.00 unit high (aligned with circles). - Total height matches 3.50 units. --- ### **Final Answer:** - **Front View:** Large rectangle (2.90 × 3.50) with two vertical circles (Ø1.15), centered horizontally, spaced 1.00 unit apart, starting 1.00 unit from the bottom. - **Side View:** Plate thickness (.75), lower block (.75 thick, 1.00 high), upper block (.55 thick, 1.00 high), overall height 3.50 units. --- **Summary Table:** | View | Shape/Feature | Dimensions/Position | |-------------|------------------------------|----------------------------| | Front | Rectangle (plate) | 2.90 × 3.50 | | Front | 2 Circles (holes) | Ø1.15, centers at 1.45 from left, 1.00 and 2.00 up from bottom | | Side | Plate thickness | .75 | | Side | Lower block | .75 thick, 1.00 high | | Side | Upper block | .55 thick, 1.00 high | --- **Tip:** Use these steps and dimensions to sketch the front and side views accurately on paper or CAD software.
