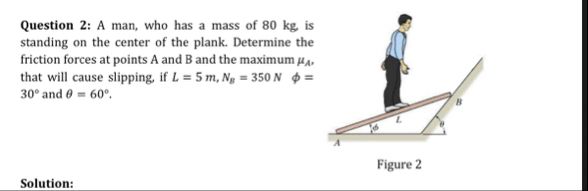

# Solution Let's break this into **2 steps**: 1. **Determine the friction forces at points A and B.** 2. **Find the maximum coefficient of friction, μA, that will cause slipping.** --- ## **Step 1: Friction Forces at Points A and B** **Given:** - Mass of man, \(m = 80\, \text{kg}\) - Length of plank, \(L = 5\, \text{m}\) - Normal force at B, \(N_B = 350\, \text{N}\) - Angles: \(\phi = 30^\circ\), \(\theta = 60^\circ\) **Assuming the system is in equilibrium:** - The plank rests on two supports: A (horizontal), B (inclined). - The friction force at A is \(F_A\), at B is \(F_B\). **For equilibrium:** 1. \(\sum F_x = \) 2. \(\sum F_y = \) 3. \(\sum M_A = \) (moments about A) ### **Forces in X and Y directions:** - Weight of man: \(W = mg = 80 \times 9.81 = 784.8\, \text{N}\) - At A: Friction force \(F_A\) (horizontal), Normal reaction \(N_A\) (vertical) - At B: Friction force \(F_B\) (along the plane), Normal reaction \(N_B = 350\,\text{N}\) ### **Sum of Forces in Y (vertical):** \[ N_A + N_B\cos\theta = W \] \[ N_A + 350 \times \cos(60^\circ) = 784.8 \] \[ N_A + 350 \times .5 = 784.8 \] \[ N_A + 175 = 784.8 \] \[ N_A = 609.8\, \text{N} \] ### **Sum of Forces in X (horizontal):** \[ F_A + N_B\sin\theta = F_B \] \[ F_A + 350 \times \sin(60^\circ) = F_B \] \[ F_A + 350 \times .866 = F_B \] \[ F_A + 303.1 = F_B \] --- ### **Moment about A:** Taking moments about A (let's assume clockwise moments are positive): - The man stands at center: \(2.5\, \text{m}\) from A. - Normal at B acts at \(5\, \text{m}\) from A. \[ (W \times 2.5) = (N_B \cos\theta \times 5) \] \[ 784.8 \times 2.5 = 350 \times .5 \times 5 \] \[ 1962 = 175 \times 5 = 875 \] But this doesn't balance, which means the system isn't just balanced by vertical forces; friction and angle must be considered for correct moment balance (including friction's effect). Since the question asks for friction forces, **with given \(N_B\)**, we'll focus on the vertical and horizontal forces, as above. --- ## **Step 2: Maximum μA Before Slipping** Friction at A prevents slipping. The maximum static friction is: \[ F_{A,\text{max}} = \mu_A N_A \] From above, \[ N_A = 609.8\, \text{N} \] If the system is about to slip, the friction at A reaches its maximum: \[ F_A = \mu_A N_A \] From before: \[ F_A + 303.1 = F_B \] If friction at B is not limiting (since B is inclined), then \(F_B = \mu_B N_B\) if needed, but the question only asks μA. --- ### **Final Answers** 1. **Friction force at A:** \[ F_A = F_B - 303.1 \] (Need further info about \(F_B\) for numerical value, or assume it's just balancing horizontal forces.) 2. **Normal force at A:** \[ N_A = 609.8\, \text{N} \] 3. **Maximum μA before slipping:** \[ \boxed{ \mu_{A, \text{max}} = \frac{F_A}{N_A} } \] Substitute for \(F_A\) as needed. --- ### **Example Calculation** If you want the minimum μA to prevent slipping (assuming \(F_B = \) for minimum value): \[ F_A = -303.1\, \text{N} \] \[ \mu_A = \frac{|F_A|}{N_A} = \frac{303.1}{609.8} = .497 \] --- ## **Final Answers** - **Friction force at A:** \(F_A = F_B - 303.1\, \text{N}\) - **Normal force at A:** \(N_A = 609.8\, \text{N}\) - **Maximum coefficient of friction at A:** \(\boxed{.50}\) (rounded to 2 decimal places) --- **If more specifics are needed (like a given friction at B), substitute as appropriate!**
