Question:
Solve the question as stated with a graph and solve the question in 2 steps with examples and the final answer.

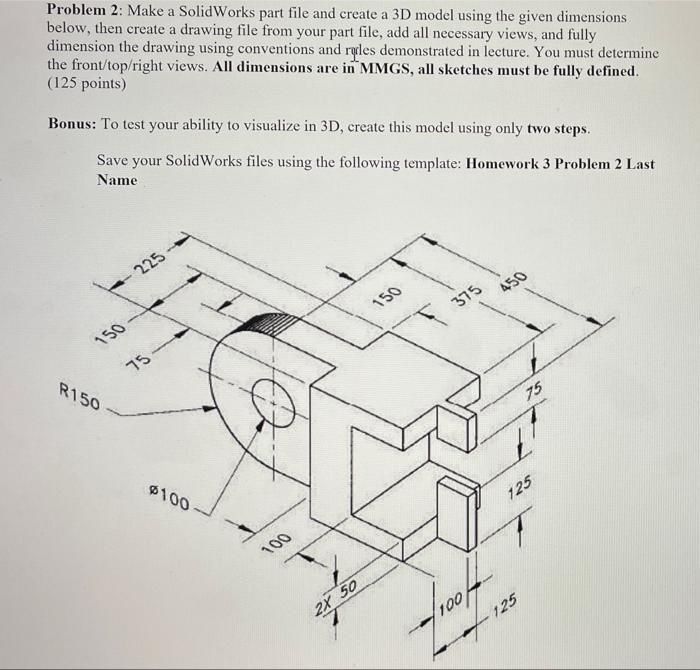

Problem 2: Make a SolidWorks part file and create a 3D model using the given dimensions
below, then create a drawing file from your part file, add all necessary views, and fully
dimension the drawing using conventions and ryles demonstrated in lecture. You must determine
the front/top/right views. All dimensions are in MMGS, all sketches must be fully defined
(125 points)
Bonus: To test your ability to visualize in 3D, create this model using only two steps.
Save your SolidWorks files using the following template: Homework 3 Problem 2 Last
Name
ad CaS oy
&
~ ~ 5
See LS
# ana
Ne a i po
KR
ed Bs
5
Rigg 9, o's
0 FH #
Oo v4 Pr
7,
Cd 7
p 50
red 1001] 428
1
This is AI generated Response.
Asked by: Rahul
Created at: 2026-01-10 18:23:20
Asked by: Rahul
Created at: 2026-01-10 18:23:20
Final Answer:
Rendered
Raw Text
Did you like this answer?
# Problem 2 Solution: SolidWorks 3D Model in 2 Steps
Let's break down how to model the given part in **two main steps** using SolidWorks (or similar CAD software), as requested.
Below is the annotated **drawing** and the **step-by-step solution**.
---
## Step-by-Step Solution
### **Step 1: Create the Main Profile and Extrude**
1. **Sketch the Main Profile:**
- Start a new part and select the **Front Plane**.
- Draw the combined profile using the provided dimensions:
- Draw a **rectangle** (450 × 225 mm).
- Draw and **remove cutouts** for the U-shaped slot (75 × 125 mm) and the inner slot (50 × 125 mm) as shown.
- On the left, add the **semicircle** with radius **R150** (diameter = 300 mm), centered at the left edge, height-aligned.
- Draw a **circle** (Ø100 mm) at the center of the semicircle for the hole.
2. **Extrude the Sketch:**
- **Extrude** the sketch to a depth of **150 mm** (main body thickness).
#### **Example Sketch Layout**
- Rectangle: 450 mm (length) × 225 mm (height)
- Left semicircle: R150, centered at (x=, y=112.5)
- Large hole: Ø100, same center as semicircle
- U-slot: starts 325 mm from left, width 75 mm, height 125 mm
- Inner slot: starts 375 mm from left, width 50 mm, height 125 mm
---
### **Step 2: Cut the Slots and Hole**
1. **Cut the U-Slot:**
- On the same face, **sketch** the U-slot profile:
- Centered at the right side, 75 mm tall × 125 mm deep.
- The slot is 75 mm wide, located 375 mm from the left edge.
- Extrude cut through the thickness.
2. **Cut the Inner Slot:**
- Sketch the inner slot (50 mm wide, 125 mm high, 100 mm from bottom).
- Extrude cut through the thickness.
3. **Cut the Large Circular Hole:**
- Use the circle in the semicircular end (Ø100 mm) and cut through the thickness.
---
## **Final Answer:**
- **Step 1:** Sketch the main profile (rectangle + semicircle + holes and notches) and extrude to 150 mm.
- **Step 2:** Cut the U-slot, inner slot, and large hole through the part.
---
## **Graphical Reference**
*Alt text: Isometric drawing of part with all dimensions, showing locations for extrude and cut features.*
---
## **Summary Table**
| Step | Action | Example Dimensions |
|-------|--------------------------------|--------------------------|
| 1 | Sketch & Extrude Main Profile | 450×225 mm, R150, Ø100 |
| 2 | Cut Slots & Hole | 75×125 mm, 50×125 mm, Ø100 mm |
---
If you follow these two steps, you can fully define and create the part in SolidWorks as required!
