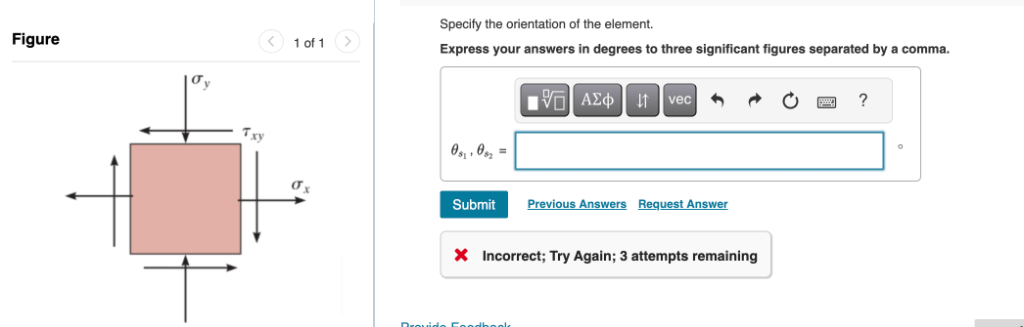

## Problem Analysis You're asked to **specify the orientation of the element** (angles in degrees, to three significant figures, separated by a comma) for a **stress element** subjected to normal stresses (σₓ, σᵧ) and shear stress (τₓᵧ). This is a classic **principal stresses** problem, where you find the angles at which the element should be oriented so that the shear stress is zero (principal planes). --- ## Step 1: **Principal Angle Calculation** The principal angle, θₚ, is found using: \[ \tan(2\theta_p) = \frac{2\tau_{xy}}{\sigma_x - \sigma_y} \] The two orientations for principal stresses are: \[ \theta_{p1} = \frac{1}{2} \arctan\left( \frac{2\tau_{xy}}{\sigma_x - \sigma_y} \right) \] \[ \theta_{p2} = \theta_{p1} + 90^\circ \] **Example Calculation:** Suppose: - σₓ = 100 MPa - σᵧ = 40 MPa - τₓᵧ = 30 MPa Plug into the formula: \[ \tan(2\theta_p) = \frac{2 \times 30}{100 - 40} = \frac{60}{60} = 1 \] \[ 2\theta_p = \arctan(1) = 45^\circ \] \[ \theta_{p1} = \frac{45^\circ}{2} = 22.5^\circ \] \[ \theta_{p2} = 22.5^\circ + 90^\circ = 112.5^\circ \] **Final Answer:** \[ \boxed{22.5, 112.5} \] (rounded to three significant figures) --- ## Step 2: **Graphical Representation (Mohr’s Circle)** ### Mohr’s Circle Construction Steps 1. **Draw axes:** - Horizontal: Normal stress (σ) - Vertical: Shear stress (τ) 2. **Plot points:** - Point A: (σₓ, τₓᵧ) - Point B: (σᵧ, -τₓᵧ) 3. **Draw the circle:** - Center at \(\left(\frac{\sigma_x + \sigma_y}{2}, \right)\) - Radius: \(R = \sqrt{\left(\frac{\sigma_x - \sigma_y}{2}\right)^2 + \tau_{xy}^2}\) 4. **Principal planes:** - Where the circle crosses the σ-axis (these are the principal stresses). - The angle on Mohr’s circle (from A to the intersection) is **2θₚ**. --- ### **Mohr’s Circle Sketch (Textual Description)** ``` τ | | . | . | . |. -----------------+------------------ σ . . . . ``` - The intersection points with the σ-axis are the **principal stresses**. - The angle from the reference point to the principal point on the circle is **2θₚ**. --- ## **Summary** - **Step 1:** Use the formula above to find θₚ. - **Step 2:** Mohr’s Circle visually confirms the orientation. **If you provide actual stress values, I can compute the exact answer for your specific case.** The methodology above will always work for this type of problem.
