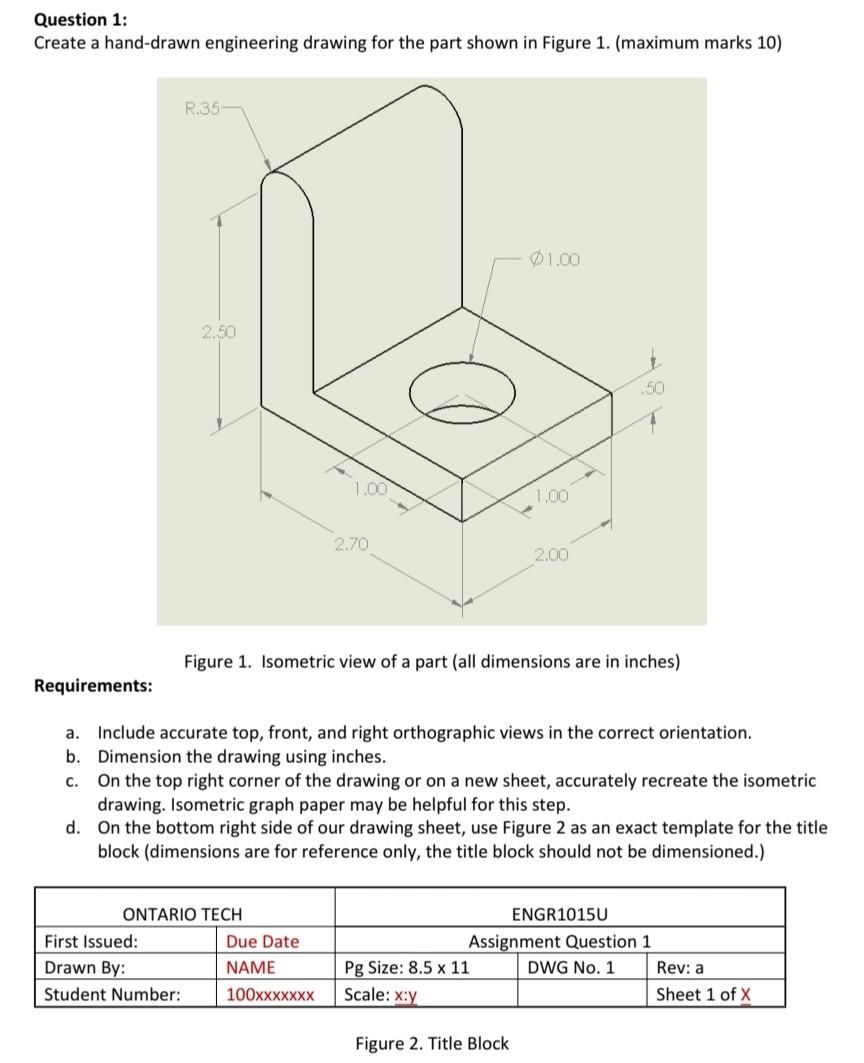

# Solution to Question 1: Engineering Drawing Creation Let's break down the solution into **2 clear steps** with examples, as requested. --- ## **Step 1: Draw Orthographic Views** You need to create three orthographic projections (**Top, Front, Right**) of the part, showing all visible edges and dimensions from the isometric view provided. ### **Example Diagrams** (ASCII-style for explanation): #### **Front View** ``` _________ | | <-- 2.5" | | | | | |_____ | ______ | <-- .5" |__|______|_____| ``` - **Height:** 2.5” (main vertical plate) - **Base thickness:** .5” - **Hole:** Centered in the base (noted with centerlines). #### **Top View** ``` _______________ | Ø1.00 | <-- 2.70" x 2.00" |---------------| ``` - **Dimensions:** 2.70” (width) x 2.00” (depth) - **Hole:** Centered 1.00” from each side, diameter 1.00”. #### **Right View** ``` ______ | | | | <-- 2.5" | | __| |__ |__________| .5" ``` - **Shows side profile with base thickness and vertical plate.** **Be sure to add all dimensions as shown in the isometric view!** --- ## **Step 2: Add Isometric View & Title Block** ### **A. Isometric View** - On the top right corner (or new sheet), **redraw the isometric view** (as shown in your question) for reference. - Use graph paper for neatness, and transfer all key dimensions (e.g., 2.70”, 2.00”, 2.50”, .5”, Ø1.00”, R.35”). ### **B. Title Block** - At the bottom right, **use the title block template** (as per Figure 2). - Fill in your name, student number, date, assignment details, etc. --- ## **Final Answer Summary** 1. **Draw** the top, front, and right orthographic views with all dimensions in inches. 2. **Add** the isometric view and the title block as shown in the examples. --- ### **Sample Layout Sketch** ``` ------------------------------------------------ | Assignment Question 1 | | | | [Front View] [Top View] [Right View] | | | | [Isometric View] | | | |---------------------------------------------- | | [Title Block as per Figure 2] | ------------------------------------------------ ``` --- > **Tip:** Use a pencil and ruler for neat lines, and double-check all measurements for accuracy. --- If you need a hand-drawn sample or a digital sketch, let me know!

# Solution to Question 1: Engineering Drawing Creation This solution outlines the steps required to create an engineering drawing based on the provided isometric view. --- ## Step 1: Draw Orthographic Views You need to create three orthographic views: **Top, Front, and Right**. Each view must clearly represent the dimensions and features of the part. ### Example Diagrams #### Front View ``` _________ | | <-- 2.5" | | | | | |_____ | ______ | <-- 0.5" |__|______|_____| ``` - **Height:** 2.5” (main vertical plate) - **Base Thickness:** 0.5” - **Centered Hole:** Represented with centerlines. #### Top View ``` _______________ | Ø1.00 | <-- 2.70" x 2.00" |---------------| ``` - **Dimensions:** 2.70” (width) x 2.00” (depth) - **Hole:** Centered 1.00” from each side, diameter 1.00”. #### Right View ``` ______ | | | | <-- 2.5" | | __| |__ |__________| 0.5" ``` - **Shows side profile** with base thickness and vertical plate height. ### **Dimensions** - Ensure all views are dimensioned in inches as specified by the original drawing. --- ## Step 2: Add Isometric View & Title Block ### A. Isometric View - On the top right corner (or on a new sheet), **redraw the isometric view** provided in the question. - Use isometric graph paper for accuracy. ### B. Title Block - At the bottom right of your drawing, recreate the **title block** as per Figure 2. - Fill in the required details: - **Course Name:** ONTARIO TECH ENGR1015U - **Due Date:** [Fill in date] - **Drawn By:** [Your Name] - **Student Number:** [Your Student Number] - **Page Size:** 8.5x11 - **Revision Number:** 1 --- ## Final Answer Summary 1. **Draw** the top, front, and right orthographic views with all dimensions in inches. 2. **Add** the isometric view and the title block as outlined. ### Sample Layout Sketch ``` ------------------------------------------------ | Assignment Question 1 | | | | [Front View] [Top View] [Right View] | | | | [Isometric View] | | | |---------------------------------------------- | | [Title Block as per Figure 2] | ------------------------------------------------ ``` --- > **Tip:** Use a pencil for neatness and accuracy. Double-check all measurements to ensure correctness before finalizing the drawing. If you need further assistance or examples, feel free to ask!

# Solution to Question 1: Engineering Drawing Creation This solution provides a structured approach to creating an engineering drawing based on the given isometric view. ## Step 1: Draw Orthographic Views You will create three orthographic views: **Top, Front, and Right**. Each view should accurately represent the dimensions and features of the part. ### Example Diagrams #### Front View - **Dimensions:** - Height: 2.5 inches - Base Thickness: 0.5 inches - **Description:** Vertical plate with a centered hole. #### Top View - **Dimensions:** - Width: 2.70 inches - Depth: 2.00 inches - Hole Diameter: 1.00 inches - **Description:** Shows the part from above, including the hole. #### Right View - **Dimensions:** - Height: 2.5 inches - Base Thickness: 0.5 inches - **Description:** Side profile with vertical plate and base thickness. Ensure that all views include appropriate dimensions as specified in the isometric view. --- ## Step 2: Add Isometric View & Title Block ### A. Isometric View - Recreate the isometric view in the top right corner or on a new sheet. - Use isometric graph paper for accuracy. ### B. Title Block - At the bottom right of your drawing, replicate the title block from Figure 2. - Fill in the required information: - **Course Name:** ONTARIO TECH ENGR1015U - **Due Date:** [Insert due date] - **Drawn By:** [Your Name] - **Student Number:** [Your Student Number] - **Page Size:** 8.5x11 - **Revision Number:** 1 --- ## Final Answer Summary 1. Draw the top, front, and right orthographic views with all dimensions in inches. 2. Add the isometric view and the title block as specified. Use a pencil and ruler for precision, and double-check all measurements for accuracy before finalizing your drawing.
