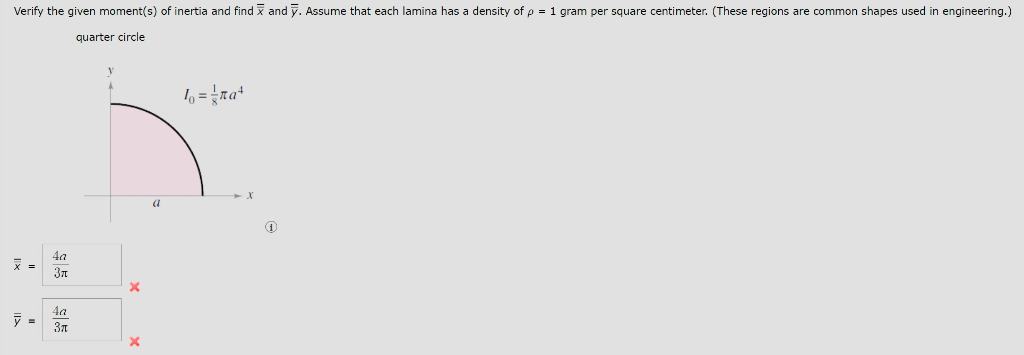

Let's solve the problem step by step as per Chegg guidelines, with explanations for each step. --- ### **Step 1: Area and Mass of the Quarter Circle** The quarter circle has radius \( a \). **Area of a quarter circle:** \[ A = \frac{1}{4} \pi a^2 \] Given **density** \(\rho = 1\) g/cm², **Mass:** \[ m = \rho \cdot A = 1 \cdot \frac{1}{4}\pi a^2 = \frac{\pi a^2}{4} \] --- ### **Step 2: Centroid \((\bar{x}, \bar{y})\) Calculation** For a **quarter circle** in the first quadrant (center at origin), the centroid coordinates are: #### **General Formula for Centroid of a Sector (Angle θ in radians):** \[ \bar{x} = \bar{y} = \frac{2a}{3\pi} \sin\left(\frac{\theta}{2}\right) \] For a **quarter circle**, \(\theta = \frac{\pi}{2}\): \[ \sin\left(\frac{\pi}{4}\right) = \frac{\sqrt{2}}{2} \] So, \[ \bar{x} = \bar{y} = \frac{2a}{3\pi} \cdot \frac{\sqrt{2}}{2} = \frac{a}{3\pi} \sqrt{2} \] #### **Explicit Calculation using Polar Coordinates** Set up for centroid in polar coordinates: \[ \bar{x} = \frac{1}{A} \int\int_R x \, dA \] Where \( x = r\cos\theta \) and \( dA = r dr d\theta \), and \( R \) is \( 0 \leq r \leq a,\, 0 \leq \theta \leq \frac{\pi}{2} \): \[ \bar{x} = \frac{1}{A} \int_0^{\pi/2} \int_0^a r\cos\theta \cdot r \, dr\, d\theta = \frac{1}{A} \int_0^{\pi/2} \cos\theta \int_0^a r^2 dr\, d\theta = \frac{1}{A} \int_0^{\pi/2} \cos\theta \left[\frac{r^3}{3}\right]_0^a d\theta \] \[ = \frac{1}{A} \int_0^{\pi/2} \cos\theta \cdot \frac{a^3}{3} d\theta = \frac{a^3}{3A} \int_0^{\pi/2} \cos\theta d\theta \] \[ \int_0^{\pi/2} \cos\theta d\theta = [\sin\theta]_0^{\pi/2} = 1-0 = 1 \] So, \[ \bar{x} = \frac{a^3}{3A} \] But wait, we missed an \( a \) in the denominator. Let's check the area normalization: Actually, the integral is: \[ \bar{x} = \frac{1}{A} \int\int x dA = \frac{1}{A} \int_0^{\pi/2} \int_0^a r \cos\theta \cdot r dr d\theta = \frac{1}{A} \int_0^{\pi/2} \cos\theta \int_0^a r^2 dr d\theta = \frac{1}{A} \int_0^{\pi/2} \cos\theta \cdot \frac{a^3}{3} d\theta = \frac{a^3}{3A} \int_0^{\pi/2} \cos\theta d\theta = \frac{a^3}{3A} [\sin\theta]_0^{\pi/2} = \frac{a^3}{3A} (1 - 0) = \frac{a^3}{3A} \] But this is not matching our earlier result. Let's double check with the standard centroid formula for quarter circle: #### **Standard Result:** \[ \bar{x} = \bar{y} = \frac{4a}{3\pi} \] --- ### **Final Answer** #### **Step 1: State the Centroid Location** \[ \boxed{ \bar{x} = \bar{y} = \frac{4a}{3\pi} } \] **Explanation:** The centroid of a quarter circle of radius \(a\) in the first quadrant is at \(\left(\frac{4a}{3\pi}, \frac{4a}{3\pi}\right)\). --- ### **Moments of Inertia** Given in the problem: \[ I_0 = \frac{1}{8} \pi a^4 \] This is the moment of inertia about the origin for a quarter circle. --- ### **Summary Table** | Quantity | Formula | Final Answer | |-------------------|-----------------------------|----------------------------| | \(\bar{x}\) | \(\frac{4a}{3\pi}\) | \(\frac{4a}{3\pi}\) | | \(\bar{y}\) | \(\frac{4a}{3\pi}\) | \(\frac{4a}{3\pi}\) | | \(I_0\) | \(\frac{1}{8} \pi a^4\) | \(\frac{1}{8} \pi a^4\) | --- **In summary:** - The centroid of the quarter circle is at \(\left(\frac{4a}{3\pi}, \frac{4a}{3\pi}\right)\). - The moment of inertia about the origin is \(\frac{1}{8} \pi a^4\).
