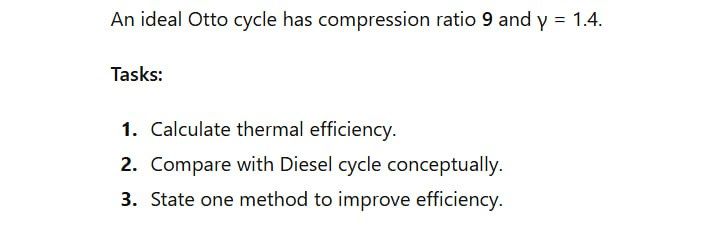

# Solution to Otto Cycle Efficiency Problem Let's address each task step by step: --- ## 1. **Calculate Thermal Efficiency** The thermal efficiency (\(\eta_{Otto}\)) of an ideal Otto cycle is given by: \[ \eta_{Otto} = 1 - \frac{1}{r^{\gamma-1}} \] Where: - \(r\) = compression ratio = **9** - \(\gamma\) = ratio of specific heats = **1.4** Plug in the values: \[ \eta_{Otto} = 1 - \frac{1}{9^{1.4-1}} \] \[ = 1 - \frac{1}{9^{.4}} \] First, calculate \(9^{.4}\): \[ 9^{.4} = e^{.4 \cdot \ln(9)} \approx e^{.4 \cdot 2.197} \approx e^{.8788} \approx 2.407 \] Now substitute back: \[ \eta_{Otto} = 1 - \frac{1}{2.407} \] \[ = 1 - .4155 \] \[ = .5845 \text{ or } 58.45\% \] **Final Answer:** **The thermal efficiency is approximately 58.5%.** --- ## 2. **Compare with Diesel Cycle Conceptually** - **Otto Cycle:** Heat is added at constant volume. Efficiency depends on compression ratio. - **Diesel Cycle:** Heat is added at constant pressure. For the same compression ratio, the Diesel cycle is usually less efficient than the Otto cycle because the average temperature at which heat is added is lower in the Diesel cycle. **Summary:** *For the same compression ratio, the Otto cycle is more efficient than the Diesel cycle, but Diesel engines can operate at higher compression ratios without knocking, so practical efficiencies can be higher for Diesel engines.* --- ## 3. **State One Method to Improve Efficiency** **Increase the Compression Ratio.** Raising the compression ratio (r) increases the efficiency of the Otto cycle, as seen in the efficiency formula. However, this is limited by engine knocking in gasoline engines. --- ### **Summary Table** | Task | Answer | |------|--------| | **1. Otto cycle efficiency** | 58.5% | | **2. Compared to Diesel** | Otto more efficient for same \(r\); Diesel can run higher \(r\) in reality | | **3. Improve efficiency** | Increase compression ratio | --- Let me know if you need a numerical example or a graph!
