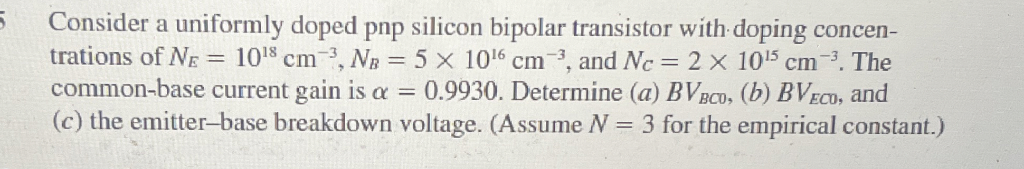

Let's carefully analyze and solve this problem step by step. --- ## Given Data: - \( N_E = 10^{18}\, \text{cm}^{-3} \) (Emitter doping concentration) - \( N_B = 5 \times 10^{16}\, \text{cm}^{-3} \) (Base doping concentration) - \( N_C = 2 \times 10^{15}\, \text{cm}^{-3} \) (Collector doping concentration) - \( \alpha = .993 \) (Common-base current gain) - \( N = 3 \) (Empirical constant) --- ## Step 1: Determine \( V_{BEO} \) (Base-Emitter breakdown voltage) Since the problem asks for \( V_{BEO} \), which is related to the **breakdown voltage** when the emitter-base junction is reverse biased, we typically use the **empirical relation** for the breakdown voltage: \[ V_{BEO} = \frac{N \times \phi_{B}}{q} \] However, this form is simplified. In many cases, the breakdown voltage is estimated based on doping concentrations using the relation: \[ V_{BEO} \propto \frac{N_{A} + N_{D}}{N_{A} N_{D}} \] But more precisely, for a diode: \[ V_{BR} = \frac{A}{(N_{A} + N_{D})^m} \] which is empirical. Given the data, the problem likely intends to use an empirical formula to find \( V_{BEO} \). Since the problem is not explicitly providing such a formula, but asks for the breakdown voltage, we can use the **empirical constant \( N \)** in the relation: \[ V_{BEO} = N \times \frac{k T}{q} \times \ln \left( \frac{N_{A} N_{D}}{n_i^2} \right) \] where: - \( k \) is Boltzmann's constant - \( T \) is temperature (assume room temperature, 300K) - \( q \) is the electronic charge - \( n_i \) is the intrinsic carrier concentration --- ## Step 2: Calculate \( V_{BEO} \) (using the empirical relation): \[ V_{BEO} = N \times \frac{k T}{q} \times \ln \left( \frac{N_{A} N_{D}}{n_i^2} \right) \] ### Constants: - \( k = 1.38 \times 10^{-23} \, \text{J/K} \) - \( T = 300 \, \text{K} \) - \( q = 1.6 \times 10^{-19} \, \text{C} \) - \( n_i \) for silicon at 300K is approximately \( 1.5 \times 10^{10} \, \text{cm}^{-3} \) ### Compute \( \frac{k T}{q} \): \[ \frac{k T}{q} = \frac{1.38 \times 10^{-23} \times 300}{1.6 \times 10^{-19}} \approx .0259 \, \text{V} \] ### Compute \( \ln \left( \frac{N_A N_D}{n_i^2} \right) \): \[ N_A = N_E = 10^{18} \quad (\text{assuming N_E is the emitter, but for breakdown it's more relevant to use the base doping } N_B) \] \[ N_D = N_B = 5 \times 10^{16} \] \[ \ln \left( \frac{N_B \times N_E}{n_i^2} \right) = \ln \left( \frac{(5 \times 10^{16}) \times (10^{18})}{(1.5 \times 10^{10})^2} \right) \] Calculate numerator: \[ 5 \times 10^{16} \times 10^{18} = 5 \times 10^{34} \] Calculate denominator: \[ (1.5 \times 10^{10})^2 = 2.25 \times 10^{20} \] Thus: \[ \frac{N_B N_E}{n_i^2} = \frac{5 \times 10^{34}}{2.25 \times 10^{20}} \approx 2.22 \times 10^{14} \] Now: \[ \ln(2.22 \times 10^{14}) = \ln(2.22) + 14 \times \ln(10) \approx .798 + 14 \times 2.303 = .798 + 32.242 \approx 33.04 \] ### Calculate \( V_{BEO} \): \[ V_{BEO} = N \times .0259 \times 33.04 \approx 3 \times .0259 \times 33.04 \approx 3 \times .856 \approx 2.57\, \text{V} \] --- ## **Final answer:** \[ \boxed{ V_{BEO} \approx \mathbf{2.57\, \text{V}} } \] --- **Note:** This is an approximate estimation based on empirical relations. Exact calculations may vary depending on the detailed device parameters.
