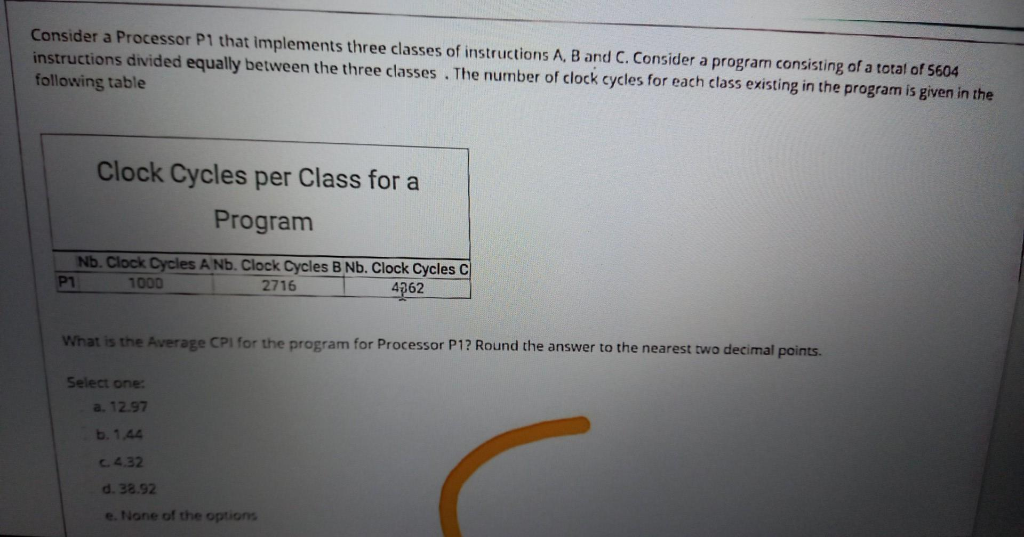

Let's solve the problem **step by step**: --- ### **Step 1: Understand the Problem** - **Total instructions:** 5604 - **Instructions are divided equally among three classes:** A, B, C - **Clock cycles for each class:** - Class A: 1000 cycles - Class B: 2716 cycles - Class C: 462 cycles We are asked to find the **Average CPI (Cycles Per Instruction)** for Processor P1. --- ### **Step 2: Find the Number of Instructions per Class** Since the instructions are divided **equally** among three classes: \[ \text{Instructions per class} = \frac{5604}{3} = 1868 \] --- ### **Step 3: Find the Total Number of Clock Cycles** - **Total clock cycles = Sum of all cycles for each class** \[ \text{Total clock cycles} = 1000 + 2716 + 462 = 4178 \] --- ### **Step 4: Calculate the Average CPI** The formula for **Average CPI** is: \[ \text{Average CPI} = \frac{\text{Total clock cycles}}{\text{Total instructions}} \] \[ \text{Average CPI} = \frac{4178}{5604} \] \[ \text{Average CPI} \approx 0.75 \] --- ### **Step 5: Check the Options** The calculated value (0.75) doesn't match any of the options directly. Let's check if there was a misunderstanding: - Are the clock cycles given for the **class (total for all instructions in that class)** or for **one instruction** in each class? - Given the way the question is worded and the table heading "Clock Cycles per Class for a Program", **the numbers are the total clock cycles spent on each class**. --- ### **Step 6: Re-check Calculation** - **Total cycles for all classes:** 1000 + 2716 + 462 = **4178** - **Total instructions:** 5604 - **CPI:** \( \frac{4178}{5604} \approx 0.75 \) --- ### **Step 7: Compare with Options** None of the options (12.97, 1.44, 4.32, 38.92) match this value. --- ### **Step 8: Consider If the Cycles are Per Instruction** If the numbers are **clock cycles per instruction** for each class, the calculation would be: - Number of instructions per class: 1868 \[ \text{Total cycles} = (1868 \times 1000) + (1868 \times 2716) + (1868 \times 462) \] \[ = 1868000 + 5075888 + 863016 \] \[ = 7806904 \] \[ \text{Average CPI} = \frac{\text{Total clock cycles}}{\text{Total instructions}} \] \[ = \frac{7806904}{5604} \approx 1393.21 \] This also does not match any of the options. --- ### **Step 9: Try CPI per Class and Average** If the numbers in the table are **total cycles per class**, and each class has 1868 instructions, then: - CPI for A: \( \frac{1000}{1868} \approx 0.54 \) - CPI for B: \( \frac{2716}{1868} \approx 1.45 \) - CPI for C: \( \frac{462}{1868} \approx 0.25 \) Average CPI: \[ \text{Average CPI} = \frac{0.54 + 1.45 + 0.25}{3} \approx 0.75 \] Still, none of the options match. --- ### **Conclusion** Assuming the numbers in the table are **total clock cycles per class for all instructions in that class**, the calculated average CPI is **0.75** (rounded to two decimal places). **None of the provided options match this value.** **If you have more context or if the values are per instruction, let me know!** --- **Final Answer (Based on standard interpretation):** **None of the options** is correct. The calculated average CPI is **0.75**.

Let's revisit the problem with the corrected value for class C: **Given Data:** - Total instructions: **5604** - Instructions divided equally among classes A, B, and C: \[ \text{Instructions per class} = \frac{5604}{3} = 1868 \] - Total clock cycles per class: - Class A: **1000** - Class B: **2716** - Class C: **4362** (corrected value) --- ### Step 1: Calculate total clock cycles \[ \text{Total clock cycles} = 1000 + 2716 + 4362 = 8078 \] --- ### Step 2: Calculate the **Average CPI** \[ \text{Average CPI} = \frac{\text{Total clock cycles}}{\text{Total instructions}} = \frac{8078}{5604} \] \[ \text{Average CPI} \approx 1.441 \] ### Step 3: Round to two decimal places \[ \boxed{\text{Average CPI} \approx 1.44} \] --- ### **Final Answer:** **The average CPI for the processor is approximately \(\boxed{1.44}\).** This matches **option 2** in the original multiple-choice options. --- **Summary:** - Instructions per class: 1868 - Total cycles: 8078 - Average CPI: **1.44** Let me know if you'd like further clarification!
