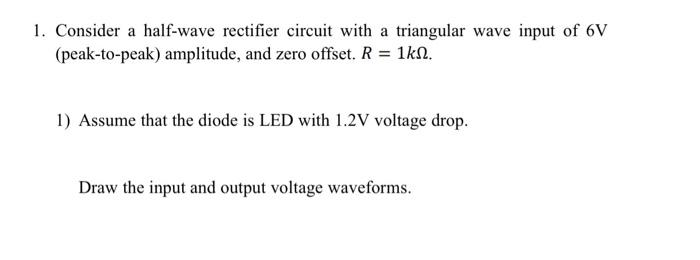

Let's solve the problem step by step: --- ### **Step 1: Understanding the Problem** - **Input waveform**: Triangular wave, 6V peak-to-peak, zero offset. - **Half-wave rectifier with an LED diode** (forward voltage drop = 1.2V). - **Load resistor, R = 1kΩ.** - **Task:** Draw the input and output voltage waveforms. --- ### **Step 2: Draw the Input Triangular Wave** - **Peak-to-peak amplitude = 6V:** So, the waveform goes from **+3V to -3V** (since zero offset). - **Triangular wave:** Linearly rises and falls between +3V and -3V. ``` Input waveform (V_in): /\ / \ / \ ---/ \---/ \--- -3V 0V +3V ``` --- ### **Step 3: Operation of Half-Wave Rectifier with LED** - The diode (LED) **conducts only when forward biased** (input > 1.2V). - **For input voltage (V_in) < 1.2V**: Diode is off, **output = 0V**. - **For input voltage (V_in) > 1.2V**: Diode conducts, **V_out = V_in - 1.2V**. --- ### **Step 4: Draw the Output Waveform** - **For V_in < 1.2V (including all negative half-cycles):** Output = 0V. - **For V_in > 1.2V:** Output = V_in - 1.2V. #### **Sketch:** ``` Input: Output: / \ /\ / \ / \ / \ / \ / \ / \ / \ / \ -3 0 +3 0 1.2 (3-1.2)=1.8V _________ / / / _______/ (output starts at V_in = 1.2V, rises to 1.8V, then drops back to 0V as input falls below 1.2V) ``` - **Output is clipped at 0V for V_in < 1.2V** - **Only positive peaks above 1.2V are passed, shifted down by 1.2V** --- ### **Step 5: Key Points to Mark** - **Input:** -3V to +3V (Triangular, zero offset) - **Output:** - **0V when V_in < 1.2V** - **Rises linearly from 0V to (3-1.2)=1.8V as input goes from 1.2V to 3V** - **Returns to 0V after V_in drops below 1.2V** - **No output during the negative half-cycle** --- ### **Final Sketch:** #### **Input:** ``` /\ / \ / \ / \ ``` - Peaks at +3V and -3V #### **Output:** ``` /| / | / | ---/ |--------- 0 1.2V 1.8V ``` - Begins rising at 1.2V input, peaks at 1.8V output, and returns to zero. --- **If you need a graphical plot, let me know!**
