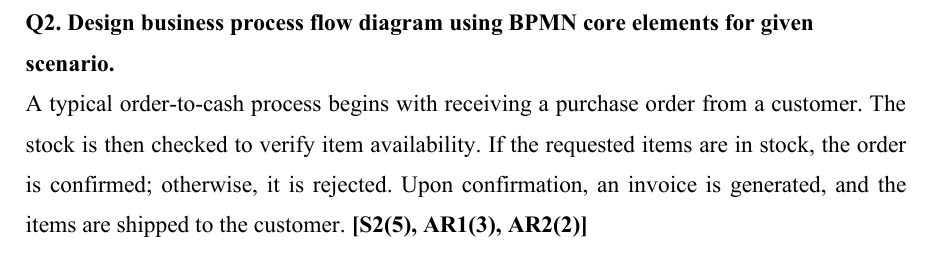

Certainly! Let's break down the scenario and **design a business process flow diagram using BPMN core elements** for the given order-to-cash process. --- ### **Step-by-Step BPMN Elements Mapping** #### **Scenario Breakdown** 1. **Receive Purchase Order** (Start Event) 2. **Check Stock Availability** (Task/Activity) 3. **Decision: Items in Stock?** (Exclusive Gateway) - **Yes:** Confirm Order - **No:** Reject Order (End Event) 4. **Generate Invoice** (Task/Activity) 5. **Ship Items to Customer** (Task/Activity) 6. **End Event** --- ### **BPMN Diagram (Textual Representation)** ```plaintext [Start Event] | [Receive Purchase Order] | [Check Stock Availability] | [Exclusive Gateway: Items in Stock?] / \ / \ [Yes] [No] | | [Confirm [Reject Order] Order] | | [End Event] [Generate Invoice] | [Ship Items to Customer] | [End Event] ``` --- ### **Detailed BPMN Diagram (Visual Representation)** Below is a **visual diagram** using standard BPMN core elements: ```mermaid flowchart TD A([Start Event]) --> B[Receive Purchase Order] B --> C[Check Stock Availability] C --> D{Items in Stock?} D -- Yes --> E[Confirm Order] D -- No --> F[Reject Order] F --> G([End Event]) E --> H[Generate Invoice] H --> I[Ship Items to Customer] I --> J([End Event]) ``` --- ### **Diagram Elements Used:** - **Events:** Ovals (Start and End) - **Tasks/Activities:** Rectangles - **Gateway:** Diamond (for decision-making) - **Sequence Flows:** Arrows --- ### **Explanation:** - The process starts when a purchase order is received. - Stock availability is checked. - A gateway checks if items are in stock: - If **Yes**, the order is confirmed, an invoice is generated, and items are shipped. - If **No**, the order is rejected and the process ends. --- #### **If you need a drawn diagram for your report, you can use diagramming tools like draw.io, Lucidchart, or even PowerPoint using these steps as a guide.** Let me know if you need a hand-drawn or tool-generated image version!
