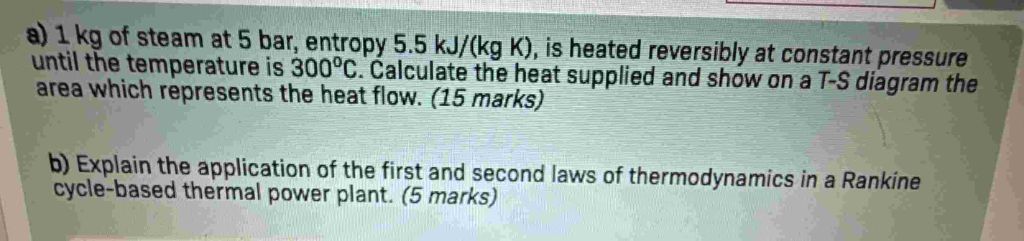

## Solution for (b) ### Application of the First and Second Laws of Thermodynamics in a Rankine Cycle-Based Thermal Power Plant #### **First Law of Thermodynamics (Energy Conservation)** - **Application:** The first law states that energy cannot be created or destroyed, only transformed. In a Rankine cycle, this law governs the energy balance through each component: - **Boiler:** Converts heat energy from fuel into steam (thermal energy to internal energy of steam). - **Turbine:** Expands steam to produce work (internal energy to mechanical work). - **Condenser:** Rejects waste heat to the environment (internal energy to heat loss). - **Pump:** Uses mechanical work to increase the pressure of water (work input). - **Cycle Analysis:** The net work output of the cycle equals the heat added in the boiler minus the heat rejected in the condenser. #### **Second Law of Thermodynamics (Entropy and Irreversibility)** - **Application:** The second law states that not all heat can be converted into work, and it introduces the concept of entropy: - **Efficiency Limit:** It sets the theoretical maximum efficiency for the Rankine cycle (Carnot efficiency). - **Irreversibilities:** Real processes involve losses due to friction, heat transfer, and other irreversibilities, increasing entropy. - **Direction of Heat Flow:** Heat naturally flows from high to low temperature, so the condenser must operate at a lower temperature than the boiler. - **Cycle Improvement:** The second law guides improvements (like reheating and regeneration) to reduce entropy generation and increase efficiency. --- **In summary:** - The **first law** ensures energy accounting through the Rankine cycle. - The **second law** limits the cycle's efficiency and dictates the direction of heat flow and effects of irreversibilities.
