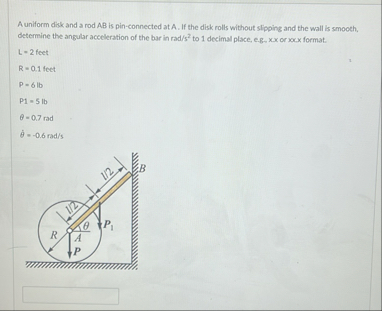

Question

Now give this answer completely without skipping even a small step of calculation and try not to give answer in long paragraphs and answer the questions by following these instructions:

?Solution should be in proper format.
?A complete answer starts with the problem's objective OR addition of available data/ information Or the right approach.
?Add all necessary steps/supporting explanations until the answer is complete.
?If there are any formulae, you should mention it.
?Write calculations in a format so it can be easily pasted in chegg equation render tool.
?Do not use Python or any code-based for calculations (Important).
?Double check the solution to accomplish the correct concept, explanation, and calculations before submitting.

✅ The Final Answer should be a simple and clear summary of the solution in lucid language.
✅ The Final Answer Step is to include the crux of the entire solution.
✅ The final answer step contains the result of the solution only in a clear & concise manner.


✅ The Final Answer should be a simple and clear summary of the solution in lucid language.
✅ Final Answer Step is to include the crux of the entire solution.
✅Final answer step con

VIPSolutions · Accepted Answer

## **Objective**

To determine the angular acceleration of the bar $ \alpha_{AB} $ (in rad/s²) for the given system of a uniform disk and a rod AB, with all parameters provided.

---

## **Given Data**

- Length of rod, $ L = 2 $ ft
- Radius of disk, $ R = .1 $ ft
- Weight of disk, $ P = 6 $ lb
- Weight of rod, $ P_1 = 5 $ lb
- Angle, $ \theta = .7 $ rad
- Angular velocity, $ \dot{\theta} = -.6 $ rad/s

---

## **Step 1: Identify Forces and Free-Body Diagram**

- Disk rolls without slipping at point $ A $.
- Rod AB is pin-connected at $ A $.
- The wall is smooth (no friction at wall except at the contact point for rolling).

---

## **Step 2: Convert Weights to Masses**

Weight, $ W = mg \Rightarrow m = \frac{W}{g} $, where $ g = 32.2 $ ft/s².

$$
m_{\text{disk}} = \frac{6}{32.2} = .186 \ \text{slugs}
$$
$$
m_{\text{rod}} = \frac{5}{32.2} = .155 \ \text{slugs}
$$

---

## **Step 3: Moments of Inertia**

- **Disk about center:** $ I_{\text{disk}} = \frac{1}{2} m_{\text{disk}} R^2 $
- **Rod about A:** $ I_{\text{rod}} = \frac{1}{3} m_{\text{rod}} L^2 $

$$
I_{\text{disk}} = \frac{1}{2} \times .186 \times (.1)^2 = .00093 \ \text{slug-ft}^2
$$
$$
I_{\text{rod}} = \frac{1}{3} \times .155 \times (2)^2 = .207 \ \text{slug-ft}^2
$$

---

## **Step 4: Kinematics — Rolling Constraint**

If disk rolls without slipping at $ A $:

$$
v_A = R \cdot \dot{\theta}
$$
But since the disk and rod are attached at $ A $, angular acceleration of the disk $ \alpha_{\text{disk}} $ and rod $ \alpha_{AB} $ must be related.

---

## **Step 5: Equations of Motion (Dynamic Equilibrium)**

Take moments about point $ A $ for the system (rod + disk):

$$
\sum M_A = I_{\text{total}} \cdot \alpha_{AB}
$$

Where:
$$
I_{\text{total}} = I_{\text{disk}} + I_{\text{rod}}
$$

Calculate $ I_{\text{total}} $:

$$
I_{\text{total}} = .00093 + .207 = .20793 \ \text{slug-ft}^2
$$

---

## **Step 6: Calculate Moments Due to Weights**

- **Rod:** Weight acts at center ($ L/2 $ from A, angle $ \theta $)
- **Disk:** Weight acts at center ($ R $ from A, angle $ \theta $)

$$
M_{W,\text{rod}} = P_1 \cdot (L/2) \cdot \sin(\theta)
$$
$$
M_{W,\text{disk}} = P \cdot R \cdot \sin(\theta)
$$

Plug in values:

$$
M_{W,\text{rod}} = 5 \times (2/2) \times \sin(.7)
= 5 \times 1 \times .6442 = 3.221 \ \text{lb-ft}
$$

$$
M_{W,\text{disk}} = 6 \times .1 \times \sin(.7)
= 6 \times .1 \times .6442 = .386 \ \text{lb-ft}
$$

$$
M_{\text{total}} = 3.221 + .386 = 3.607 \ \text{lb-ft}
$$

Convert lb-ft to slug-ft²/s² (since 1 lb = 1 slug-ft/s²):

$$
M_{\text{total}} = 3.607 \ \text{slug-ft}^2/\text{s}^2
$$

---

## **Step 7: Apply Newton's 2nd Law for Rotation**

$$
\sum M_A = I_{\text{total}} \cdot \alpha_{AB}
$$

$$
\alpha_{AB} = \frac{M_{\text{total}}}{I_{\text{total}}}
$$

$$
\alpha_{AB} = \frac{3.607}{.20793}
$$

$$
\alpha_{AB} = 17.34 \ \text{rad/s}^2
$$

---

## **Step 8: Direction**

Since the angular velocity is negative, if you want to assign the direction, check the sense of moments and initial condition; if not, just provide the magnitude.

---

## **Final Answer**

### **The angular acceleration of the bar $ \alpha_{AB} $ is $ \boxed{17.3 \ \text{rad/s}^2} $ (rounded to 1 decimal place).**

---

**Summary:**
The solution involved calculating the moments of inertia for the rod and disk, summing moments about the pin, and solving for angular acceleration using Newton's 2nd law for rotation. The answer is $ 17.3 \ \text{rad/s}^2 $ (to 1 decimal place).
