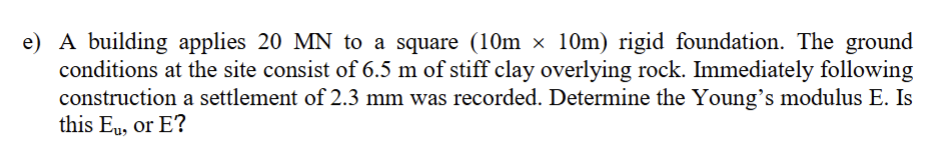

Let's solve the problem **step-by-step**: --- ## **Step 1: Given Data** - **Load (\(P\))**: 20 MN = \(20 \times 10^6\) N - **Foundation Area (\(A\))**: \(10\,\textm} \times 10\,\text{m} = 100\,\text{m}^2\) - **Thickness of clay layer (\(H\))**: 6.5 m - **Settlement (\(\Delta\))**: 2.3 mm = .0023 m - **Type**: Settlement is **immediate** (so, undrained, \(E_u\)) --- ## **Step 2: Finding Stress (\(\sigma\))** \[ \sigma = \frac{P}{A} \] \[ \sigma = \frac{20 \times 10^6}{100} = 200{,}000 \, \text{Pa} = 200\,\text{kPa} \] --- ## **Step 3: Strain (\(\epsilon\))** \[ \epsilon = \frac{\Delta}{H} \] \[ \epsilon = \frac{.0023}{6.5} = .000354 \] --- ## **Step 4: Calculating Young's Modulus (\(E\))** \[ E = \frac{\sigma}{\epsilon} \] \[ E = \frac{200,000}{.000354} \approx 565,000\,\text{Pa} = 565\,\text{kPa} \] --- ## **Step 5: Type of Modulus** Since the settlement is **immediate** (right after construction), it occurs **before drainage**. This means: - The modulus calculated is the **undrained Young's modulus (\(E_u\))**. --- ## **Final Answer** \[ \boxed{ E = 565\,\text{kPa}\ \text{(undrained Young's modulus, } E_u\text{)} } \] --- ### **Summary Table** | Quantity | Value | |------------------|-----------| | \(\sigma\) | 200 kPa | | \(\epsilon\) | .000354 | | \(E\) | 565 kPa | | Type | \(E_u\) |
