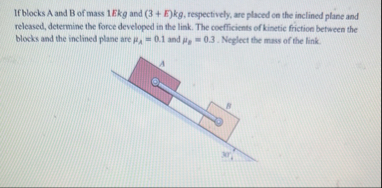

Let's break down the problem step-by-step: --- ## **Step 1: Understanding the Problem** - **Block A mass:** \( 1 \text{ kg} \) - **Block B mass:** \( (3 + x) \text{ kg} \) - **Incline angle:** \( 30^\circ \) - **Friction coefficients:** - **Block A:** \( \mu_A = .1 \) - **Block B:** \( \mu_B = .3 \) - **Neglect the mass of the link (rod).** - **Find:** Force in the link after release. --- ## **Step 2: Free Body Diagrams** Let’s resolve forces **along the incline** for each block: #### **Block A:** - Down the incline: \( W_A \sin\theta = 1g \sin 30^\circ \) - Friction up the incline: \( f_A = \mu_A N_A = \mu_A W_A \cos\theta = .1 \cdot 1g \cos 30^\circ \) - Link force: \( F \) (direction to be assumed, say, pulling A up the incline) #### **Block B:** - Down the incline: \( W_B \sin\theta = (3+x)g \sin 30^\circ \) - Friction up the incline: \( f_B = \mu_B N_B = .3(3+x)g \cos 30^\circ \) - Link force: \( F \) (opposite direction, so pushing B up the incline) --- ## **Step 3: Equations of Motion** Assume both blocks move together with acceleration \( a \). Let’s write equations along the incline for each: ### **Block A:** \[ 1g\sin30^\circ - f_A - F = 1a \] \[ 1g\sin30^\circ - .1(1g)\cos30^\circ - F = 1a \] ### **Block B:** \[ (3+x)g\sin30^\circ - f_B + F = (3+x)a \] \[ (3+x)g\sin30^\circ - .3(3+x)g\cos30^\circ + F = (3+x)a \] --- ## **Step 4: Combine Equations** Add equations to eliminate \( F \): \[ [1g\sin30^\circ - .1(1g)\cos30^\circ - F] + [(3+x)g\sin30^\circ - .3(3+x)g\cos30^\circ + F] = 1a + (3+x)a \] \[ [1g\sin30^\circ + (3+x)g\sin30^\circ - .1g\cos30^\circ - .3(3+x)g\cos30^\circ] = (4+x)a \] \[ [g\sin30^\circ(1+3+x) - g\cos30^\circ(.1 + .3(3+x))] = (4+x)a \] Simplify: - \(1 + 3 + x = 4 + x\) - \(.1 + .3(3+x) = .1 + .9 + .3x = 1. + .3x\) \[ g\sin30^\circ(4+x) - g\cos30^\circ(1.+.3x) = (4+x)a \] --- ## **Step 5: Plug Values** - \( g = 9.81 \ \text{m/s}^2 \) - \( \sin 30^\circ = .5 \) - \( \cos 30^\circ = .866 \) \[ 9.81 \times .5 \times (4+x) - 9.81 \times .866 \times (1.+.3x) = (4+x)a \] \[ 4.905(4+x) - 8.495(1.+.3x) = (4+x)a \] \[ 19.62 + 4.905x - 8.495 - 2.5485x = (4+x)a \] \[ (19.62 - 8.495) + (4.905x - 2.5485x) = (4+x)a \] \[ 11.125 + 2.3565x = (4+x)a \] So, \[ a = \frac{11.125 + 2.3565x}{4+x} \] --- ## **Step 6: Find the Link Force \( F \) (Choose Block A's Equation)** From above: \[ F = 1g\sin30^\circ - .1(1g)\cos30^\circ - 1a \] \[ F = 4.905 - .1 \times 9.81 \times .866 - a \] \[ .1 \times 9.81 \times .866 = .849 \] \[ F = 4.905 - .849 - a \] \[ F = 4.056 - a \] Substitute value of \( a \) from above: \[ F = 4.056 - \frac{11.125 + 2.3565x}{4+x} \] --- ## **Step 7: Final Answer** ### **Force in the Link:** \[ \boxed{ F = 4.056 - \frac{11.125 + 2.3565x}{4 + x} \quad \text{(N)} } \] Where: - \( x \) is as specified in the problem for block B's mass. --- ### **Summary** - The force developed in the link depends on \( x \). - Plug in any \( x \) value to get the force. **If you have a specific \( x \), substitute it to get the numerical answer!**
