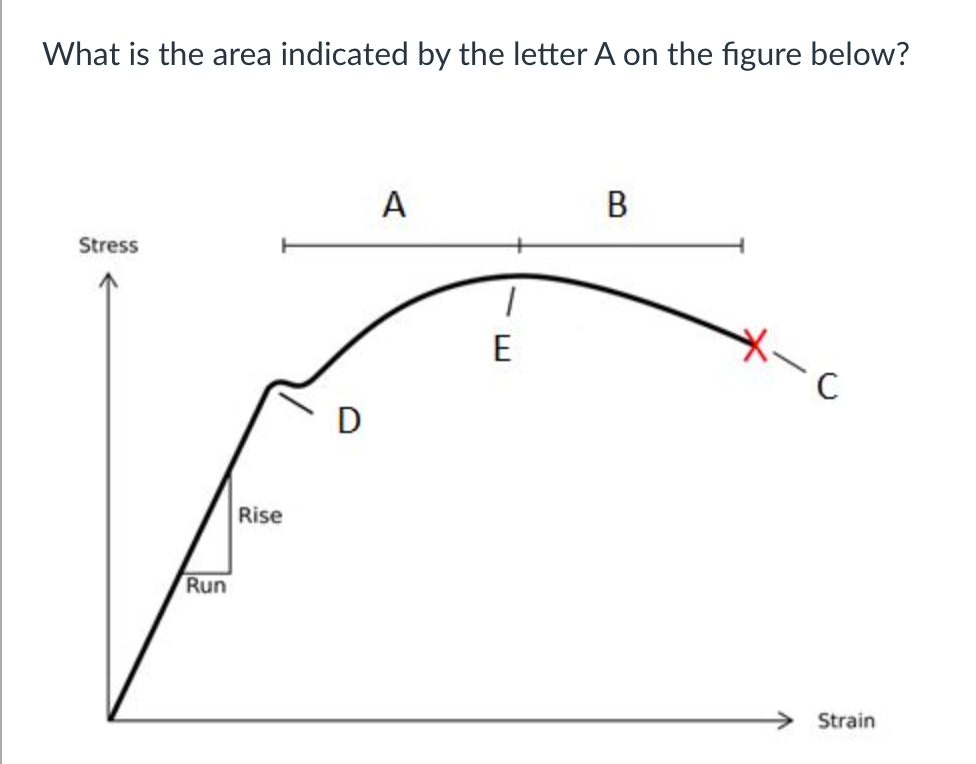

## Step-by-Step Solution ### 1. **Understanding the Figure** This is a **stress-strain curve** commonly used in material science to show how a material deforms under stress. - The **x-axis** is Strain (deformation). - The **y-axis** is Stress (force per area). - The **curve** shows how a material responds as it is loaded. ### 2. **Identifying Area 'A'** The area labeled **A** is the region under the curve up to the end of the elastic region — the **elastic region** of the material. --- ### 3. **What Does Area 'A' Represent?** The area under the stress-strain curve in the **elastic region** (area A) represents the **modulus of resilience**. #### **Modulus of Resilience:** - It is the **amount of energy per unit volume** that a material can absorb **without permanent deformation**. - It is equal to the area under the curve up to the **yield point** (the end of the elastic region). --- ### 4. **Mathematical Expression** For a material that behaves linearly in the elastic region (Hooke's law), the area under the curve is a **triangle**: \[ \text{Modulus of Resilience} = \text{Area A} = \frac{1}{2} \times \text{Base} \times \text{Height} \] - **Base:** Strain at yield, \( \varepsilon_{y} \) - **Height:** Stress at yield, \( \sigma_{y} \) So, \[ \text{Area A} = \frac{1}{2} \sigma_{y} \varepsilon_{y} \] --- ### 5. **Final Answer** #### **The area indicated by the letter A is:** > **The modulus of resilience of the material, which is the energy per unit volume that the material can absorb without permanent deformation. It is equal to the area under the stress-strain curve up to the yield point and can be calculated as \( \frac{1}{2} \sigma_{y} \varepsilon_{y} \).** --- #### **Summary Table** | Region | Description | Area Meaning | Formula | |--------|----------------------------|-----------------------------|---------------------------------------| | A | Elastic (up to yield) | Modulus of Resilience | \( \frac{1}{2} \sigma_{y} \varepsilon_{y} \) | | B | Plastic (after yield) | Toughness (with A) | ... | --- **In words:** **Area A = Modulus of Resilience = energy per unit volume to the yield point**.
