Let's solve the problem **step-by-step** as requested.
---

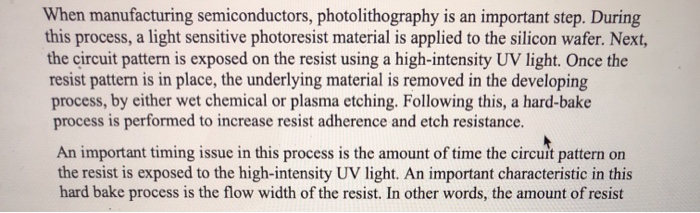

## **Given Data**
- **Target dimension:** 1.50 μm ± 0.15 μm
- **Sample size per subgroup (n):** 4
- **Data:** Provided in the table (Range and Average for each subgroup)
---
## **Step 1: List the Data**
Extract the data from the image:

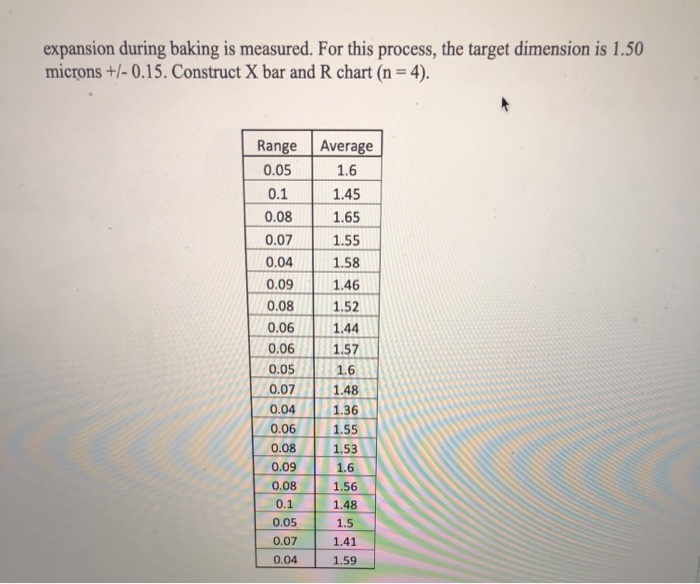

| Range | Average |
|-------|---------|
| 0.05 | 1.60 |
| 0.10 | 1.45 |
| 0.08 | 1.65 |
| 0.07 | 1.55 |
| 0.04 | 1.58 |
| 0.09 | 1.46 |
| 0.08 | 1.52 |
| 0.06 | 1.44 |
| 0.06 | 1.57 |
| 0.05 | 1.60 |
| 0.07 | 1.48 |
| 0.04 | 1.36 |
| 0.06 | 1.55 |
| 0.09 | 1.53 |
| 0.08 | 1.56 |
| 0.10 | 1.48 |
| 0.07 | 1.41 |
| 0.04 | 1.59 |
There are **18 subgroups**.
---
## **Step 2: Calculate \(\overline{X}\) and \(\overline{R}\)**
\[
\overline{X} = \text{Average of the subgroup averages}
\]
\[
\overline{R} = \text{Average of the subgroup ranges}
\]
### **Calculate \(\overline{X}\):**
Sum of averages:
\[
S_X = 1.60 + 1.45 + 1.65 + 1.55 + 1.58 + 1.46 + 1.52 + 1.44 + 1.57 + 1.60 + 1.48 + 1.36 + 1.55 + 1.53 + 1.56 + 1.48 + 1.41 + 1.59
\]
\[
S_X = 27.18
\]
\[
\overline{X} = \frac{27.18}{18} = 1.51
\]
### **Calculate \(\overline{R}\):**
Sum of ranges:
\[
S_R = 0.05 + 0.10 + 0.08 + 0.07 + 0.04 + 0.09 + 0.08 + 0.06 + 0.06 + 0.05 + 0.07 + 0.04 + 0.06 + 0.09 + 0.08 + 0.10 + 0.07 + 0.04
\]
\[
S_R = 1.13
\]
\[
\overline{R} = \frac{1.13}{18} \approx 0.063
\]
---
## **Step 3: Control Chart Factors for n = 4**
From standard tables:
- \(A_2 = 0.729\)
- \(D_3 = 0\)
- \(D_4 = 2.282\)
---
## **Step 4: Calculate Control Limits**
### **X-bar Chart:**
\[
\text{UCL}_{\overline{X}} = \overline{X} + A_2 \overline{R}
\]
\[
\text{LCL}_{\overline{X}} = \overline{X} - A_2 \overline{R}
\]
Plug in the numbers:
\[
\text{UCL}_{\overline{X}} = 1.51 + (0.729 \times 0.063) = 1.51 + 0.045927 = 1.556
\]
\[
\text{LCL}_{\overline{X}} = 1.51 - 0.045927 = 1.464
\]
---
### **R Chart:**
\[
\text{UCL}_{R} = D_4 \overline{R}
\]
\[
\text{LCL}_{R} = D_3 \overline{R}
\]
\[
\text{UCL}_R = 2.282 \times 0.063 \approx 0.1448
\]
\[
\text{LCL}_R = 0 \times 0.063 = 0
\]
---
## **Step 5: Final Answers**
**X-bar chart:**
- \(\overline{X} = 1.51\)
- **UCL:** 1.56 (rounded)
- **CL:** 1.51
- **LCL:** 1.46 (rounded)
**R chart:**
- \(\overline{R} = 0.063\)
- **UCL:** 0.145 (rounded)
- **CL:** 0.063
- **LCL:** 0
---
## **Summary Table**
| Chart | LCL | CL | UCL |
|---------|-------|-------|-------|
| X-bar | 1.46 | 1.51 | 1.56 |
| R | 0 | 0.063 | 0.145 |
---
**You would plot the subgroup averages and ranges against these limits for your control charts!**
Let me know if you need to see the control chart plot or further explanation!
