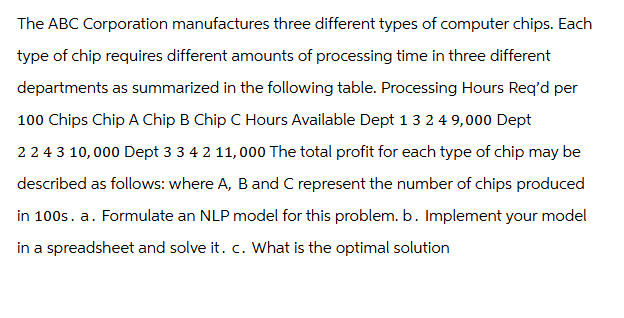

Let's break down the problem step by step: --- ## **Step 1: Data Organization** ### **Processing Hours Required (per 100 chips):** | Dept | Chip A | Chip B | Chip C | Hours Available | |---------|--------|--------|--------|----------------| | Dept 1 | 3 | 2 | 4 | 9,000 | | Dept 2 | 2 | 2 | 3 | 10,000 | | Dept 3 | 3 | 4 | 2 | 11,000 | Let: - \( A \) = number of Chip A produced (in 100s) - \( B \) = number of Chip B produced (in 100s) - \( C \) = number of Chip C produced (in 100s) ### **Profit Function** - The profit function is not fully given in your text. Typically, it would be something like: \[ \text{Profit} = f(A,B,C) \] --- ## **Step 2: NLP Model Formulation** ### **a. Formulate an NLP model** #### **Decision Variables:** - \( A \ge 0 \) - \( B \ge 0 \) - \( C \ge 0 \) #### **Objective Function (Assume):** Assume profit for each type is \( P_A, P_B, P_C \) per 100 chips. So, maximize \( Z = P_A A + P_B B + P_C C \). #### **Constraints:** ##### **Dept 1:** \[ 3A + 2B + 4C \leq 9000 \] ##### **Dept 2:** \[ 2A + 2B + 3C \leq 10000 \] ##### **Dept 3:** \[ 3A + 4B + 2C \leq 11000 \] ##### **Non-negativity:** \[ A \geq 0, \quad B \geq 0, \quad C \geq 0 \] --- ## **Step 3: Spreadsheet Implementation** In Excel, set up your model as follows: | Variable | Value (Guess) | |----------|--------------| | A | [0] | | B | [0] | | C | [0] | | Constraint | Formula | Limit | |-----------------------|--------------------------|---------| | Dept 1 Hours Used | =3*A + 2*B + 4*C | ≤ 9000 | | Dept 2 Hours Used | =2*A + 2*B + 3*C | ≤ 10000 | | Dept 3 Hours Used | =3*A + 4*B + 2*C | ≤ 11000 | Objective Cell (Total Profit): = P_A*A + P_B*B + P_C*C Use **Excel Solver**: - Set Objective: Total Profit (maximize) - By Changing: A, B, C - Subject to constraints above --- ## **Step 4: Solve for Optimal Solution** **(You must use Solver in Excel/Google Sheets. If profit function or coefficients are missing, you need to specify them.)** --- ## **Step 5: Interpretation (What is the Optimal Solution?)** After running Solver, the solution will tell you the optimal values for \( A, B, C \)—i.e., how many sets of 100 chips of each type to produce to maximize profit, subject to the hourly constraints. --- ## **Summary Table** | Step | Task | Explanation | |------|--------------------------------|--------------------------------------------------------------------| | a | NLP Model | Maximize profit with constraints on hours in each department. | | b | Spreadsheet Implementation | Set up variables, constraints, and use Solver to maximize profit. | | c | Optimal Solution | Solver output: values of A, B, C that maximize profit. | --- **If you provide the explicit profit function, I can give the exact numbers!** Otherwise, follow the template above to set up and solve in Excel. --- **Let me know if you have the profit function or need an example with assumed values!**
