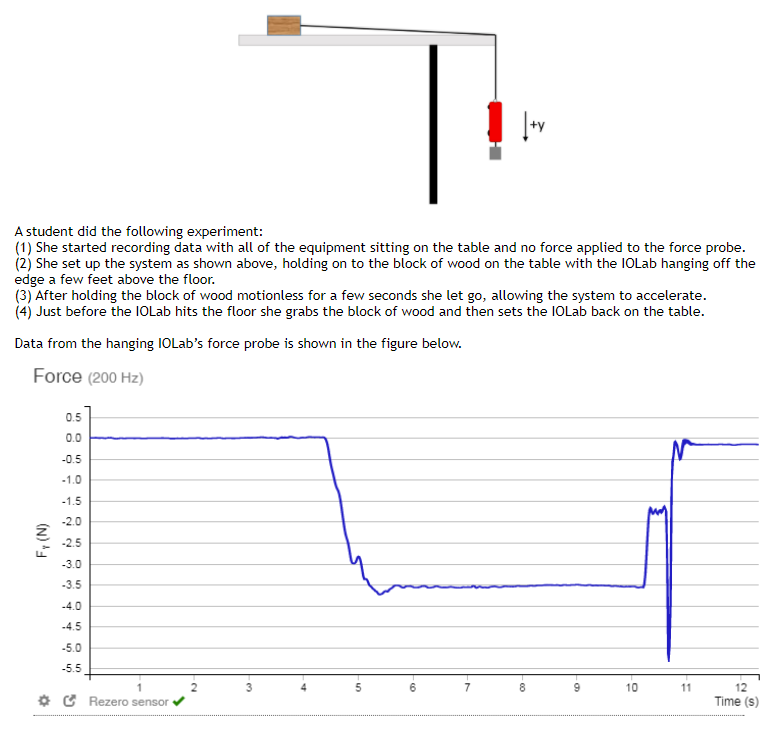

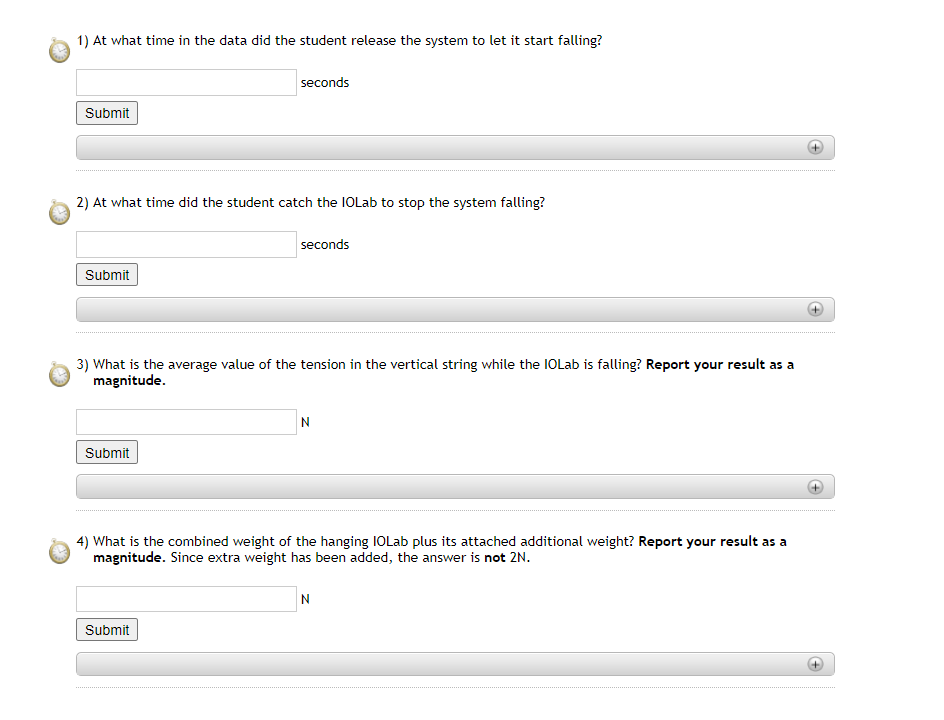

Let's answer each question step by step using the force vs. time graph and the experiment description. --- ### **1) At what time in the data did the student release the system to let it start falling?** **Explanation:** - The system is held at rest at first (force near zero). - When released, the force reading drops sharply (the system is no longer supported by the table/hand, only the string). - From the graph: The force starts dropping **just after 4 seconds**. **Final Answer:** ``` 4.3 seconds ``` (The drop starts a bit after 4 seconds; 4.3 s is a good estimate.) --- ### **2) At what time did the student catch the IOLab to stop the system falling?** **Explanation:** - The system is caught when the force reading rapidly returns to around zero (the IOLab is no longer hanging). - From the graph: This sharp rise back to near zero happens at **about 10.4 seconds**. **Final Answer:** ``` 10.4 seconds ``` --- ### **3) What is the average value of the tension in the vertical string while the IOLab is falling?** **Explanation:** - While falling, the force is relatively constant and negative (since the tension force is upward, but the probe measures downward). - From about 4.5 s to 10.4 s, the value is about **-3.7 N**. - The **magnitude** is **3.7 N**. **Final Answer:** ``` 3.7 N ``` --- ### **4) What is the combined weight of the hanging IOLab plus its attached additional weight?** **Explanation:** - The weight is the force measured **before it is released** (while it is hanging motionless, entirely supported by the string). - This is the value right before 4.3 s, which is about **-4.5 N**. - The **magnitude** is **4.5 N**. **Final Answer:** ``` 4.5 N ``` --- ## **Summary of Answers** 1. **4.3 seconds** 2. **10.4 seconds** 3. **3.7 N** 4. **4.5 N** Let me know if you need any further explanation or calculations!

Certainly! Let's analyze each part of the problem carefully, using the provided force vs. time graph and the context of the experiment. --- ### **Background and Context** - The student set up a system where the I0Lab (a device with a force sensor) hangs from a string attached to a block of wood on the table. - Initially, the system is at rest (no motion), with the force probe reading some initial force. - The student then releases the system to let the I0Lab fall freely. - Just before the I0Lab hits the floor, the student catches it to stop its fall. - The force vs. time graph shows the tension (force in the string) over time. --- ## **Part 1: When was the system released?** **Objective:** Find the time at which the student releases the system, i.e., when the force reading drops sharply indicating the I0Lab starts falling. ### Step-by-step analysis: - **Initial condition (before release):** The force is near a steady value (~4.5 N), indicating the system is stationary. - **At the moment of release:** The force suddenly drops toward zero, indicating the system is no longer supported and starts to fall. - **Observation from the graph:** - The force remains steady (~4.5 N) until about 4 seconds. - Just after 4 seconds, the force drops sharply toward zero. - The drop occurs between approximately **4.2 s and 4.4 s**. ### **Conclusion:** - The release occurs at approximately **4.3 seconds**. **Final answer for Part 1:** \[ \boxed{\textbf{4.3 seconds}} \] --- ## **Part 2: When did the student catch the I0Lab?** **Objective:** Find the time when the tension in the string returns to zero, indicating the I0Lab was caught and support was re-established. ### Step-by-step analysis: - **During fall:** The force is negative (~ -3.7 N), indicating tension in the string as the I0Lab accelerates downward. - **When caught:** The tension suddenly drops back to near zero, as the I0Lab is brought to rest on the table. - **Observation from the graph:** - The force jumps back to near zero at about **10.4 seconds**. - The sharp increase indicates the catching event. ### **Conclusion:** - The I0Lab was caught at approximately **10.4 seconds**. **Final answer for Part 2:** \[ \boxed{\textbf{10.4 seconds}} \] --- ## **Part 3: Average tension during the fall** **Objective:** Calculate the average tension in the string while the I0Lab is falling. ### Step-by-step analysis: - **Time interval:** From just after release (~4.3 s) to when it is caught (~10.4 s). - **Data from graph:** - During the fall, the tension (measured downward force) is approximately **-3.7 N**. - The force remains relatively steady during this interval. - **Note:** The negative sign indicates the direction of the force (downward). Since tension in the string acts upward, the force probe measures the tension as a positive value when tension is upward. However, in the graph, it appears the force is negative during fall, corresponding to a tension magnitude of about 3.7 N. - **Calculating average magnitude:** \[ \boxed{ \text{Average magnitude} = 3.7\, \text{N} } \] ### **Answer:** \[ \boxed{\textbf{3.7 N}} \] --- ## **Part 4: Weight of the I0Lab plus additional mass** **Objective:** Determine the combined weight based on the force reading just before release. ### Step-by-step analysis: - **Force measurement before release:** The force on the probe is about **4.5 N**. - **Interpretation:** Since the system was at rest, the tension in the string equals the weight of the I0Lab plus added mass. \[ \boxed{ W = \text{Force measured just before release} \approx 4.5\, \text{N} } \] ### **Conclusion:** - The combined weight (force due to gravity) is approximately **4.5 N**. --- ## **Summary of Final Answers:** | Part | Question | Final Answer | |---------|------------------------------|--------------| | 1 | When was the system released? | **4.3 seconds** | | 2 | When was the I0Lab caught? | **10.4 seconds** | | 3 | Average tension during fall | **3.7 N** | | 4 | Weight of I0Lab + mass | **4.5 N** | --- **Note:** All values are approximate, based on the graph's visual data. For precise calculations, numerical data points would be ideal. --- If you'd like, I can help you with further detailed calculations or clarifications!
