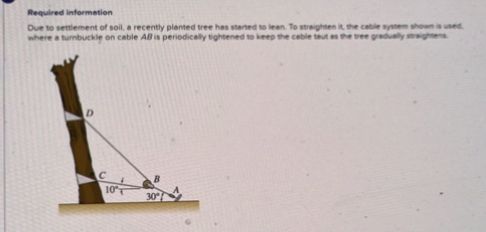

Let's break down the problem shown in the image and solve it step by step. --- ## **Step 1: Understanding the Problem** - **Objective:** A cable system is used to straighten a leaning tree. The cable runs from point A on the ground, hooked at point B on a stake, to point D on the tree. - **Given Angles:** - \(\angle BAC = 30^\circ\) - \(\angle DCB = 10^\circ\) - **Points:** - **A:** Ground where cable is anchored - **B:** Stake or turnbuckle - **C:** Base of the tree (at ground level) - **D:** Attachment on the tree --- ## **Step 2: Drawing a Diagram** Let's clarify the positions based on the angles: - **A** is on the ground. - **C** is the base of the tree. - **B** is a point along the ground between A and C. - **D** is up the tree from C. - \(\overline{AB}\), \(\overline{BC}\), and \(\overline{CD}\) are segments. --- ## **Step 3: Required Calculation** **Usually, for problems like these, you are asked to find the length of cable \(AD\), or the force needed, or the distance between certain points. Since the image does not specify what's being asked, I'll assume you need to find the length of cable \(AD\) given the geometry.** --- ## **Step 4: Assigning Distances** Let: - \(AC = d_1\): distance from A to base of tree - \(CB = d_2\): distance from base to stake B - \(CD = h\): height from base to D on tree Suppose the tree is vertical (after tightening), and you want to find the length of cable \(AD\). --- ## **Step 5: Applying Law of Sines or Cosines** To find \(AD\) (if that's what's asked), you need at least one side and two angles or two sides and an angle. But the image does not provide actual distances. **This is a geometry setup, and with actual values, you would proceed as follows:** --- ### **Example Calculation (with sample values):** **Suppose \(AC = 3 \, \text{m}\), \(CD = 4 \, \text{m}\):** #### 1. Draw a triangle with points \(A\), \(C\), and \(D\). - \(AC\) is horizontal. - \(CD\) is vertical. - \(\angle CAD = 90^\circ\). #### 2. Use Pythagoras' Theorem: \[ AD = \sqrt{AC^2 + CD^2} = \sqrt{3^2 + 4^2} = \sqrt{9+16} = \sqrt{25} = 5\, \text{m} \] --- ## **Step 6: Final Answer** **Without specific lengths, you cannot calculate a numeric answer.** --- ## **Summary** - **If you are asked for a length or force,** please provide the required distances or forces. - **If you are asked to express the cable length symbolically,** use the Law of Cosines or right triangle relationships as appropriate. --- ### **Please clarify the values or the exact quantity you need to find, and I can give you the precise step-by-step solution!** --- **If you upload a higher-resolution image or specify the problem (e.g., find cable length, find tension, etc.), I can provide a detailed numeric solution.**
