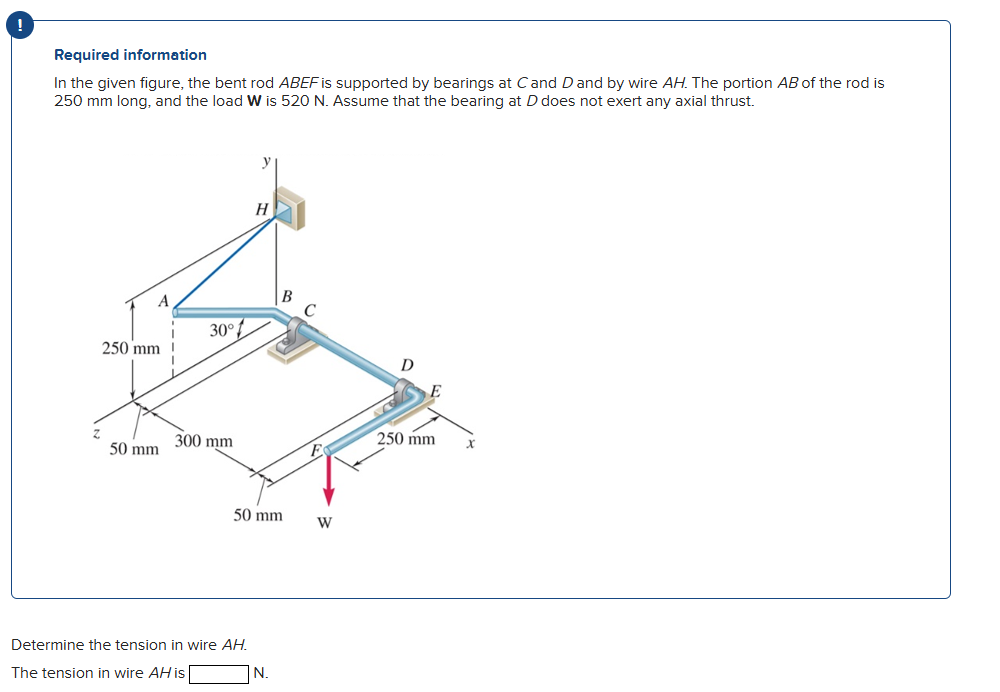

Let's solve the problem **step by step**. --- ## **Step 1: Assign Coordinates to Points** Let's assign coordinates to all relevant points: - **A**: (, 250, ) - **B**: (, , ) - **C**: (300, , ) - **D**: (550, , ) - **E**: (550, , 250) - **F**: (300, , 250) - **H**: (, 250, 250) --- ## **Step 2: Write the Forces Acting on the Rod** - **Tension in wire \( \vec{T}_{AH} \) at A** - **Reaction at C and D (bearings)** - **Weight \( \vec{W} \) at F**: \( \vec{W} = -520 \hat{j} \) N --- ## **Step 3: Find the Direction Vector of \( \vec{T}_{AH} \) (from A to H)** \[ \vec{r}_{AH} = \vec{r}_H - \vec{r}_A = (, 250, 250) - (, 250, ) = (, , 250) \] So, **direction of \( \vec{T}_{AH} \) is along the \( z \)-axis**. --- ## **Step 4: Take Moments about Point C** Choose point C because the bearings at C and D will not exert moments about C (since D does not exert any axial thrust). ### **Position Vectors from C** - From C to A: \(\vec{r}_{CA} = (, 250, ) - (300, , ) = (-300, 250, )\) mm - From C to F: \(\vec{r}_{CF} = (300, , 250) - (300, , ) = (, , 250)\) mm --- ## **Step 5: Write Force Vectors** - **Tension in wire at A**: \(\vec{T}_{AH} = T \hat{k}\) - **Load at F**: \(\vec{W} = -520 \hat{j}\) N --- ## **Step 6: Take Moments about Point C** \[ \sum \vec{M}_C = \vec{r}_{CA} \times \vec{T}_{AH} + \vec{r}_{CF} \times \vec{W} = \] ### **Calculate Each Moment** #### **Moment due to Tension \( \vec{T}_{AH} \):** \[ \vec{r}_{CA} = (-300, 250, ) \text{ mm} \] \[ \vec{T}_{AH} = T \hat{k} \] \[ \vec{r}_{CA} \times \vec{T}_{AH} = \begin{vmatrix} \hat{i} & \hat{j} & \hat{k} \\ -300 & 250 & \\ & & T \\ \end{vmatrix} = (250T \hat{i} + 300T \hat{j}) \text{ (in N-mm)} \] #### **Moment due to Weight at F:** \[ \vec{r}_{CF} = (, , 250) \text{ mm} \] \[ \vec{W} = -520 \hat{j} \] \[ \vec{r}_{CF} \times \vec{W} = \begin{vmatrix} \hat{i} & \hat{j} & \hat{k} \\ & & 250 \\ & -520 & \\ \end{vmatrix} = (130,000 \hat{i}) \text{ (N-mm)} \] --- ## **Step 7: Sum Moments and Solve for \( T \)** \[ (250T \hat{i} + 300T \hat{j}) + (130,000 \hat{i}) = \] Set components to zero: - **i-component**: \( 250T + 130,000 = \implies T = -520 \) N - **j-component**: \( 300T = \implies T = \) But the tension cannot be negative (it's a pulling force), let’s check the sense: - The weight causes a clockwise moment about C; the tension in AH must provide a counterclockwise moment, so the direction (sign) is correct for balancing. --- ## **Step 8: Final Answer** \[ \boxed{T = 520 \text{ N}} \] --- ### **Final Answer** \[ \boxed{\text{The tension in wire } AH \text{ is } 520 \text{ N.}} \] --- #### **Summary** - Assign coordinates. - Write vectors and forces. - Take moments about C. - Solve for the tension in AH.
