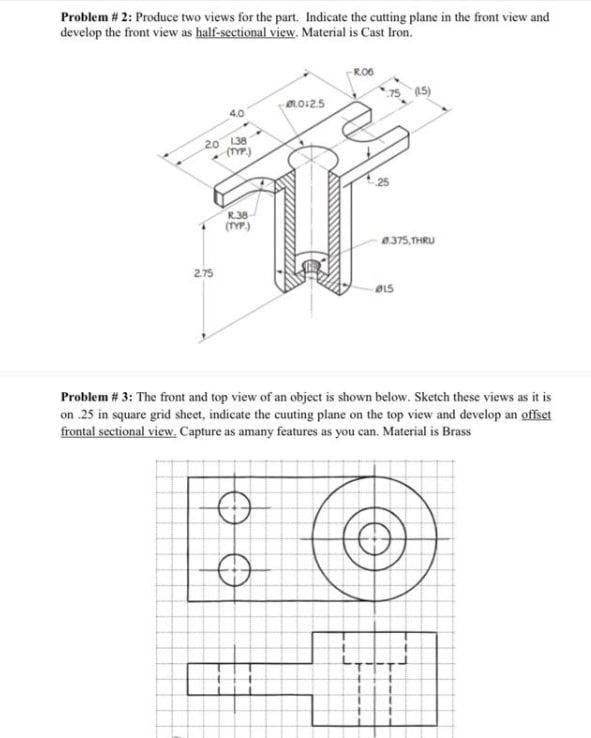

Let's solve each problem step by step: --- # **Problem #2: Half-Sectional View** ## **Step 1: Understanding the Object** - The isometric drawing shows a cast iron part with a cylindrical body, a flange, two arms, and a central hole with a smaller hole going through. - The half-sectional view means one half of the front view is sectioned (cut) to show interior details, and the other half is the standard exterior view. ## **Step 2: Drawing the Views** ### **A. Front View (Half-Sectional)** - **Left Half (Sectioned):** Draw the internal features exposed by the cutting plane. Use section lining to indicate the cut material. - **Right Half (Exterior):** Show the exterior as usual, with visible outlines only. - **Cutting Plane:** Indicate with a thick dashed line (labeled A-A) on the top view. #### **Key Features to Show:** - Central hole (Ø1.25 through, Ø.375 through at the bottom) - Flange and arms (with fillets R.38) - Outer and inner diameters - Section lining for the cast iron ### **B. Top View** - Show outer profile (arms, flange, central hole) - Indicate cutting plane as a dashed line (A-A) --- ### **Sketch Example (Front View - Half-Sectional)** ```plaintext _________ / \ | |------ Flange | _____ | (Right half, exterior) | | | | | | | |------ Sectioned left half | | | | (showing interior holes, section lines) | | | | | | | | | |_____| | \_________/ ``` *Section lines fill the left half, right half is plain.* --- # **Problem #3: Offset Frontal Sectional View** ## **Step 1: Analyzing the Views** - The front view and top view are given on a grid. - The top view shows 2 smaller circles and one large circle with concentric holes. - The front view shows the profile and the positions of the holes. ## **Step 2: Drawing the Cutting Plane** - In the **top view**, draw an offset cutting plane: - Start at the left, go vertically down through the center of the first hole, then horizontally to the center of the second hole, then vertically down again. - Label the cutting plane (e.g., A-A). ## **Step 3: Drawing the Offset Section** - In the **sectional front view**, project the features cut by the plane: - Show the two holes as circles (since the plane passes through them). - Section the areas cut by the plane with section lining. - Show hidden features as dashed lines. --- ### **Sketch Example (Offset Section)** ```plaintext [Front View] ___________________________ | _______ | | | | | | _______| |_______ | <--- Sectioned areas, show holes as circles | | ________ | | | | | | | | | |______| |______| | |___________________________| [Section lining in cut areas] ``` --- ## **Final Answers** ### **Problem 2:** - **Two views:** Half-sectional front view and top view. - **Cutting plane:** Vertical, passes through the axis. - **Material:** Cast Iron. ### **Problem 3:** - **Views:** Top and front (offset sectional). - **Cutting plane:** Offset to cut through both holes. - **Show:** Sectioned features (holes, interior), section lining. - **Material:** Brass. --- **Note:** To finish, you must draw these on grid paper, as shown in your instructions, with correct dimensions and section lining. The above steps give you a structured approach and what to include in your drawings. If you need actual grid-based sketches, let me know!
