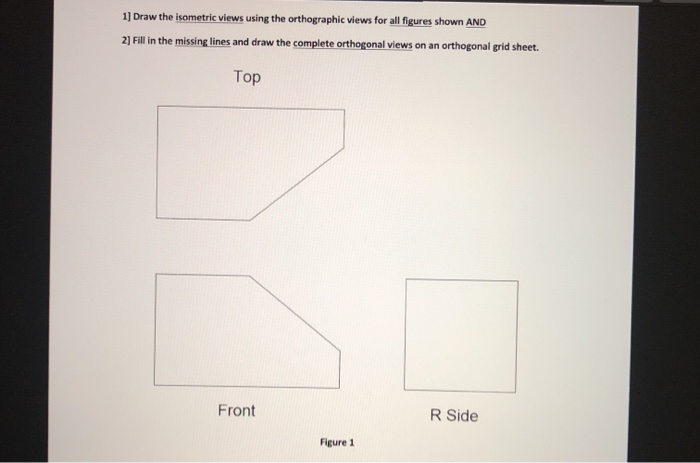

Let's break down the steps for solving the problem. --- # Step-by-Step Solution ## **Step 1: Analyze the Orthographic Views** You have three orthographic views: - **Top View** - **Front View** - **Right Side View** Let's identify the features from each view: ### **Top View** - The shape is a rectangle with a chamfer (cut-off corner) on the top right. ### **Front View** - The shape is a rectangle with a chamfer (cut-off corner) on the top left (when viewed from the front). ### **Right Side View** - The shape is a simple rectangle (no visible chamfers). --- ## **Step 2: Infer the 3D Shape** Let’s match the features between the views: - The rectangle remains a rectangle in the right side view, suggesting the chamfer does **not** affect the right face. - The chamfer appears in different positions in the top and front views, suggesting it is a single edge cut off from the "top-right-front" corner. **Conclusion:** The object is a rectangular prism with one *front-right-top* corner cut off (a chamfer). --- ## **Step 3: Draw the Isometric View** Here's how to sketch it: ### **Isometric Steps** 1. **Draw a rectangular prism** (box). 2. **Chamfer the front-right-top corner** (cut off diagonally). - The chamfer should appear on the top and front faces but not on the right face. --- ## **Step 4: Draw the Complete Orthogonal Views with Missing Lines** On the orthogonal views, ensure all visible edges are drawn: - On the **Top view**, the chamfer is shown as a diagonal on the top-right. - On the **Front view**, the chamfer is shown as a diagonal on the top-left. - On the **Right Side view**, the face is a rectangle (no chamfer). --- ## **Step 5: Final Answer** ### **Isometric View:** Below is a rough representation (draw this on isometric grid paper for accuracy): ``` _______ / /| /______/ | | | | | | | |______| / |______|/ ``` - The chamfer is visible on the top front-right corner. ### **Complete Orthogonal Views:** - **Top View:** Rectangle with top-right chamfered. - **Front View:** Rectangle with top-left chamfered. - **Right Side View:** Plain rectangle. --- ## **Summary Table** | View | Description | |-------------|--------------------------------------------------------| | Top | Rectangle with chamfer on top-right | | Front | Rectangle with chamfer on top-left | | Right Side | Plain rectangle (no chamfer visible) | | Isometric | Rectangular block with front-right-top corner chamfered| --- ## **Tip for Drawing** - Use grid paper for accuracy. - Label views. - Use dashed lines for hidden edges (if any). --- **You have now completed the required isometric and orthogonal views based on the given projections!**
