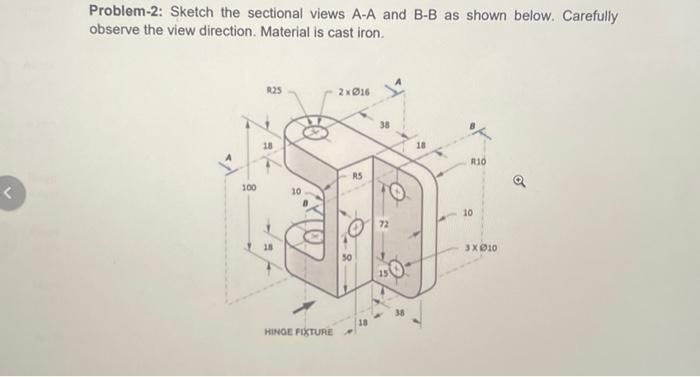

## Step-by-Step Solution for Sectional Views A-A and B-B Let's break down the solution for drawing the sectional views **A-A** and **B-B** as requested. --- **1. Understanding the Problem** - **Objective**: Draw the sectional views A-A and B-B of the hinge fixture. - **Material**: Cast iron (affects hatching style but not geometry). - **Reference**: The isometric drawing provided. - **Section Planes**: - **A-A**: Vertical section from top to bottom, passing through the center. - **B-B**: Vertical section from left to right, passing through the holes. --- ### **2. Analyzing Section A-A** #### **What does A-A cut through?** - Passes through the middle of the two large vertical holes (Ø16). - Cuts through the base and the vertical side walls. - Reveals the internal profile of the fixture. #### **Steps:** 1. **Draw the Outline**: - Draw the rectangle representing the outer profile (height 100, width 72). 2. **Add the Holes**: - Show the two Ø16 holes as full circles since the section passes through their centers. 3. **Show the Internal Wall**: - The wall thickness is 18 mm (as per the dimensions). 4. **Add Hatching**: - Hatch the areas where the section cuts through the cast iron (excluding holes). --- ### **3. Analyzing Section B-B** #### **What does B-B cut through?** - Passes horizontally through the smaller holes (Ø10). - Cuts through the curved outer edge (R10), showing the semicircular profile. #### **Steps:** 1. **Draw the Outline**: - Draw the rectangle representing the outer profile (height 38, width 100). 2. **Show the Holes**: - Three Ø10 holes, equally spaced as per the drawing. 3. **Show the Rounded Ends**: - Each end has a radius (R10). 4. **Add Hatching**: - Hatch the areas where the section cuts through the cast iron (excluding holes). --- ### **4. Sketching the Views** #### **Section A-A Sketch (Front Sectional View)** ``` ------------------------------------------------- | | | (Hatched area) O O (Hatched area) | ← Vertical walls, sectioned | | | ----------------------------- | | | | (Hatched area) | | | ------------------------------------------------- ``` - **O**: Shows the two Ø16 holes. - **Hatched area**: Cast iron material. #### **Section B-B Sketch (Side Sectional View)** ``` ________________ / \ | (Hatched area) | | O O O | ← Three Ø10 holes |__________________| ``` - **Rounded corners**: R10 at each end. - **O**: Shows the three Ø10 holes. - **Hatched area**: Cast iron material. --- ### **5. Final Answer (Text Summary)** #### **Section A-A:** - **Shape**: Rectangular section, 100mm height, 72mm width. - **Features**: Two Ø16 holes (centered), wall thickness 18mm each side, hatched cut material. #### **Section B-B:** - **Shape**: Rectangular section with semicircular ends (R10), 38mm height, 100mm width. - **Features**: Three Ø10 holes along the width, hatched cut material. --- ## **Conclusion** - **Section A-A**: Reveals the two large holes and the overall vertical structure. - **Section B-B**: Reveals the three smaller holes and the rounded ends. - **Hatching**: All sectioned cast iron areas should be hatched. If you need a drawn version, let me know and I can sketch it digitally!
