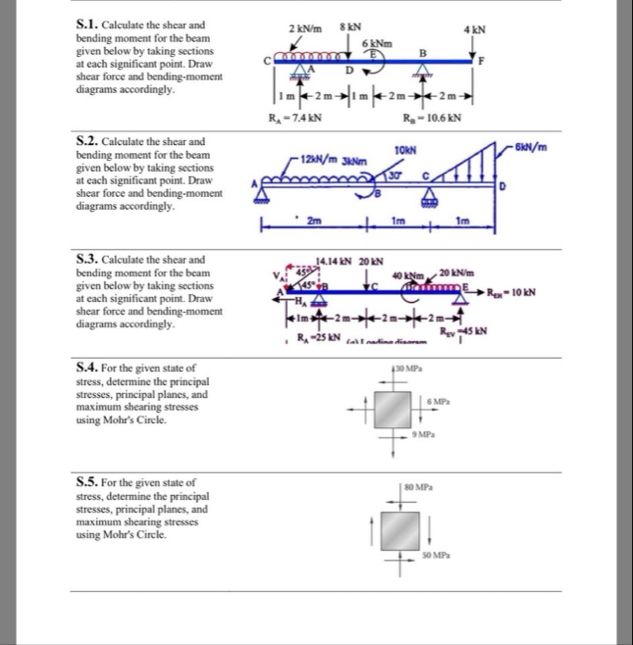

Let's solve **S.1** step-by-step: --- # S.1: Shear Force and Bending Moment for the Beam **Given:** - Beam CDEF - Loads: 2 kN/m (CD), 8 kN (E), 4 kN (F) - Lengths: CD = 3 m, DE = 1 m, EF = 2 m, FB = 2 m - Supports at C and F (reaction forces: \(R_C = 7.4\) kN, \(R_F = 10.6\) kN) --- ## **Step 1: Identify All Loads and Supports** - Uniformly distributed load (UDL) on CD: \(w = 2\) kN/m over 3 m - Point load at E: 8 kN - Point load at F: 4 kN - Support reactions: \(R_C = 7.4\) kN (upward at C), \(R_F = 10.6\) kN (upward at F) --- ## **Step 2: Shear Force Calculations** **Take sections at each point (C, D, E, F):** ### **A. At Point C (x = m)** - Shear just right of C: \(V_C = +7.4\) kN (upward reaction) --- ### **B. At Point D (x = 3 m, end of UDL)** - Load from UDL: \(w \cdot L = 2 \cdot 3 = 6\) kN (downward) - Shear just left of D: \(V_{D-} = 7.4 - 6 = 1.4\) kN - No point load at D, so \(V_{D+} = 1.4\) kN --- ### **C. At Point E (x = 4 m, after 1 m from D)** - Shear just left of E: \(V_{E-} = 1.4\) kN (no load between D and E) - Point load at E: 8 kN (downward) - Shear just right of E: \(V_{E+} = 1.4 - 8 = -6.6\) kN --- ### **D. At Point F (x = 6 m, after 2 m from E)** - Shear just left of F: \(V_{F-} = -6.6\) kN (no load between E and F) - Point load at F: 4 kN (downward) - Shear just right of F: \(V_{F+} = -6.6 - 4 = -10.6\) kN - Add reaction at F: \(V_{F+} + R_F = -10.6 + 10.6 = \) kN (should return to at the end) --- ## **Step 3: Bending Moment Calculations** **Use sections just left of each point:** ### **A. At C (x = m)** - \(M_C = \) (pinned support) --- ### **B. At D (x = 3 m)** - \(M_D =\) (area under shear curve from C to D) - \(M_D = 7.4 \times 3 - \frac{1}{2} \times 2 \times 3^2\) - \(= 22.2 - 9 = 13.2\) kNm --- ### **C. At E (x = 4 m)** - From D to E, no distributed load, so shear is constant (1.4 kN) - \(M_E = M_D + V_{D+} \times (E-D)\) - \(= 13.2 + 1.4 \times 1 = 14.6\) kNm --- ### **D. At F (x = 6 m)** - From E to F, shear is constant (-6.6 kN) - \(M_F = M_E + V_{E+} \times (F-E)\) - \(= 14.6 + (-6.6) \times 2 = 14.6 - 13.2 = 1.4\) kNm - At F (support), \(M_F = \) (if simply supported), so check if calculation matches. --- ## **Step 4: Draw Shear and Bending Moment Diagrams** ### **Shear Force Diagram:** - Start at 7.4 kN (C) - Drop linearly to 1.4 kN at D (due to UDL) - Drop suddenly to -6.6 kN at E (8 kN load) - Remain constant to F, then drop to -10.6 kN (4 kN load), jump back to (reaction at F) ### **Bending Moment Diagram:** - Start at (C) - Rise parabolically (due to UDL) to 13.2 kNm at D - Linearly to 14.6 kNm at E - Linearly down to 1.4 kNm at F --- ## **Final Answers** ### **Shear Force at Key Points:** - \(V_C = 7.4\) kN (up) - \(V_D = 1.4\) kN (up) - \(V_E = -6.6\) kN (down) - \(V_F = -10.6\) kN (down, before reaction), (after reaction at F) ### **Bending Moment at Key Points:** - \(M_C = \) - \(M_D = 13.2\) kNm - \(M_E = 14.6\) kNm - \(M_F = \) --- ### **Shear Force and Bending Moment Diagrams:** - **Shear:** Linear drop over UDL, jumps at point loads, constant between point loads. - **Moment:** Parabolic under UDL, linear otherwise, peaks at E. --- **If you need the diagrams drawn, let me know!**
