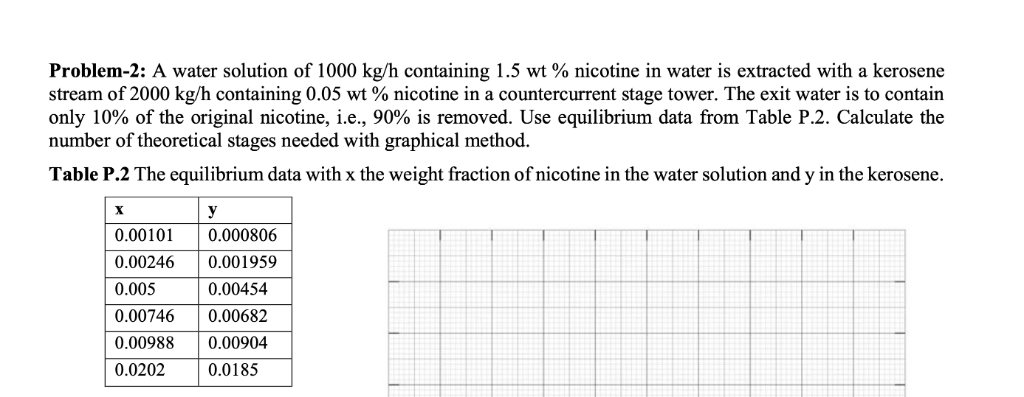

Let's solve the liquid-liquid extraction problem step-by-step. --- # **Step 1: Given Data** - **Feed (water) flow rate (\(F\))**: 100 kg/h - **Feed nicotine concentration (\(x_F\))**: 1.5 wt % = .015 - **Solvent (kerosene) flow rate (\(S\))**: 200 kg/h - **Solvent nicotine concentration (\(y_S\))**: .05 wt % = .0005 - **Final water stream should have 10% of initial nicotine (i.e., 90% removed):** Initial nicotine in feed = \(100 \times .015 = 15\) kg Remaining nicotine in water = \(.1 \times 15 = 1.5\) kg Final concentration in water (\(x_N\)) = \(1.5/100 = .0015\) --- # **Step 2: Notation** - \(x\): wt fraction of nicotine in water phase (raffinate) - \(y\): wt fraction of nicotine in kerosene phase (extract) - \(x_F\): Feed composition (initial water phase) - \(x_N\): Final water phase composition - \(y_\): Initial kerosene phase composition - \(y_N\): Final kerosene phase composition --- # **Step 3: Mass Balance** ## **A. Total Nicotine Balance** - Initial nicotine: \(15\) kg (in water phase) - Remaining in water: \(1.5\) kg - Transferred to kerosene: \(15 - 1.5 = 13.5\) kg ## **B. Water (Raffinate) Stream** - Flow rate: \(100\) kg/h (assuming negligible volume change) - Final nicotine: \(x_N = .0015\) ## **C. Kerosene (Extract) Stream** - Flow rate: \(200\) kg/h (assuming negligible volume change) - Initial: \(y_ = .0005\) - Let \(y_N\) = final weight fraction of nicotine in kerosene Nicotine balance in kerosene: \(200 \times (y_N - .0005) = 13.5\) \(\Rightarrow y_N = \frac{13.5}{200} + .0005 = .00675 + .0005 = .00725\) --- # **Step 4: Operating Line Equation** In countercurrent extraction: \[ \frac{x_{n-1} - x_N}{y_n - y_} = \frac{S}{F} \] where \(S = 200\) kg/h, \(F = 100\) kg/h, so \(S/F = 2\). Operating line (for stagewise calculation): \[ y_n = y_ + \frac{S}{F} (x_{n-1} - x_N) \] --- # **Step 5: Equilibrium Data (Table P.2)** | x | y | |--------|-----------| |.00101 |.000806 | |.00246 |.001959 | |.005 |.00454 | |.00746 |.00682 | |.00988 |.00904 | |.0202 |.0185 | --- # **Step 6: Graphical Method (Stagewise Calculation - McCabe-Thiele)** ### **1. Plot the equilibrium curve (y vs x) using Table P.2.** ### **2. Draw the operating line:** - Start at \(x = x_N = .0015\), \(y_ = .0005\) - End at \(x = x_F = .015\), \(y_N = .00725\) ### **3. Construction:** - Step off stages starting from \(x_N, y_\) and move between the operating line and equilibrium curve until you reach \(x_F\). --- # **Step 7: Analytical (Approximate) Stage Calculation** Let's use the Kremser equation for countercurrent extraction: \[ N = \frac{\ln \left[ \frac{(X_ - m Y_N)}{(X_N - m Y_)} \right]}{\ln \left[ 1 + \frac{S}{mF} \right]} \] Where: - \(X_ = x_F = .015\) - \(X_N = x_N = .0015\) - \(Y_ = y_ = .0005\) - \(Y_N = y_N = .00725\) - \(S/F = 2\) - \(m\) = slope of equilibrium line (approximate average from table) Let's estimate \(m\): \[ m \approx \frac{y_2 - y_1}{x_2 - x_1} = \frac{.0185 - .000806}{.0202 - .00101} \approx \frac{.017694}{.01919} \approx .92 \] --- # **Step 8: Plug Values into Kremser Equation** \[ N = \frac{\ln \left[ \frac{(.015 - .92 \times .00725)}{(.0015 - .92 \times .0005)} \right]}{\ln \left[ 1 + \frac{2}{.92} \right]} \] \[ .92 \times .00725 = .00667 \] \[ .015 - .00667 = .00833 \] \[ .92 \times .0005 = .00046 \] \[ .0015 - .00046 = .00104 \] Numerator: \[ \frac{.00833}{.00104} = 8.01 \] \[ \ln(8.01) = 2.08 \] Denominator: \[ 1 + \frac{2}{.92} = 1 + 2.174 = 3.174 \] \[ \ln(3.174) = 1.155 \] \[ N = \frac{2.08}{1.155} \approx 1.8 \] --- # **Step 9: Final Answer and Discussion** - The calculated number of theoretical stages is **about 1.8**, so **2 stages** are needed. - **Graphical method** (McCabe-Thiele) would confirm this result by stepping off between the equilibrium curve and the operating line. --- ## **Summary Table** | Parameter | Value | |--------------------------|------------| | Feed (water) flow | 100 kg/h | | Feed nicotine conc. | .015 | | Solvent (kerosene) flow | 200 kg/h | | Solvent nicotine conc. | .0005 | | Final water nicotine | .0015 | | Final kerosene nicotine | .00725 | | No. of stages (approx.) | 2 | --- ## **Final Answer** > **Number of theoretical stages needed: 2 (rounded up from 1.8) using the graphical/McCabe-Thiele method.** --- **If you need the graphical McCabe-Thiele construction shown, let me know!**
