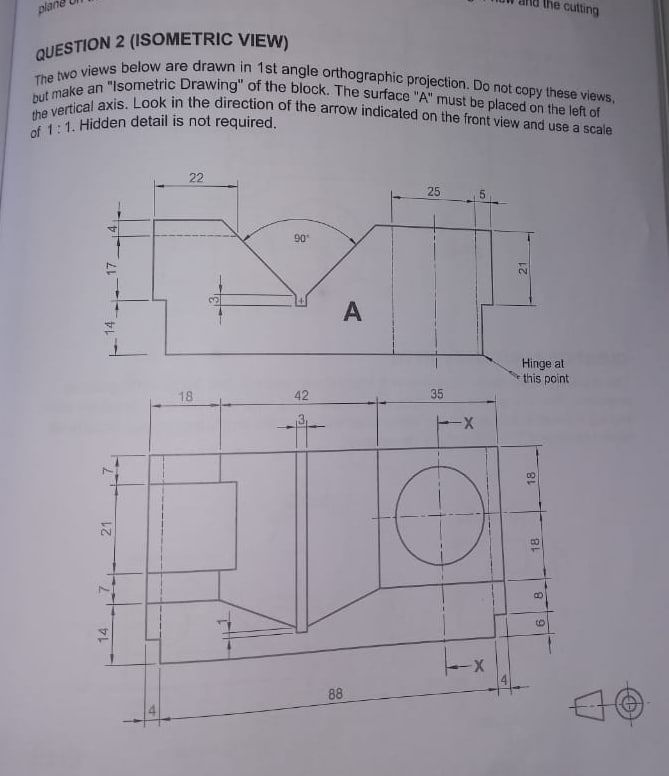

Let's break down the solution step-by-step for constructing the **isometric view** from the given 1st angle orthographic projections. --- ## **Step 1: Understanding the Views** - **Top View (Plan):** Shows the length and width. - **Front View (Elevation):** Shows the height and length. - The arrow indicates the viewing direction for the isometric. --- ## **Step 2: Extract Key Dimensions** From the drawings: ### **Main Block:** - **Length:** 88 mm (overall) - **Width:** 21 mm (main part) - **Height:** 31 mm (from base to top, 14 + 17) - **Left Side Step:** 14 mm high, 22 mm long, 21 mm wide - **Right Side Step:** 21 mm high, 25 mm long, 21 mm wide ### **Features:** - **V-Groove:** 90° angle, centered, depth 17 mm - **Through Hole (Right):** 18 mm diameter, center 18 mm from right, 11 mm from top - **Square Cut (Left):** 14 mm high, 18 mm from left, width 7 mm, depth 7 mm --- ## **Step 3: Draw the Isometric Axes** 1. **Draw three axes** from a point: - One vertical (height) - Two at 30° to the horizontal (length and width) --- ## **Step 4: Build the Main Block** 1. **Draw a box** of size 88 mm (length) × 21 mm (width) × 31 mm (height) using the isometric axes. 2. **Add left and right steps** at the appropriate ends, making sure the heights and widths match the given dimensions. --- ## **Step 5: Add Details** ### **V-Groove:** - Centered at 42 mm from the left edge (from top view) - 90° inverted triangle, depth 17 mm, base at the top ### **Through Hole:** - On the right side, 18 mm diameter, center 18 mm from the right face, 11 mm from the top face ### **Square Cut:** - On the left, 7 mm × 7 mm, 14 mm high (from the bottom), 18 mm from the left edge --- ## **Step 6: Finalize the Drawing** - **Project all features** in correct positions using isometric construction. - **Omit hidden lines** as instructed. - **Label the surface 'A'** on the left side as indicated. --- ## **Final Isometric Drawing (Sketch Example)** Below is a textual step-by-step for your isometric view. You should use a ruler and set square for accuracy. If you want a hand-drawn version, follow these steps: 1. **Draw a base rectangle** (isometric) of 88 mm x 21 mm. 2. **Raise verticals** to 31 mm for height. 3. **Mark steps** on left (22 mm) and right (25 mm), drop heights as per front view. 4. **Add the V-groove** by marking the center, drawing two 45° lines down 17 mm, joining at the point. 5. **Draw the square cut** on the left, measuring 7 mm x 7 mm, starting 18 mm in. 6. **Draw the through hole** on the right, placing the center as per dimensions, and sketching an ellipse (isometric circle) of 18 mm diameter. --- ### **Summary Table of Key Dimensions** | Feature | Dimension(s) | Placement | |-----------------|-------------------------|------------------------------| | Main Block | 88 x 21 x 31 mm | - | | Left Step | 22 x 21 x 14 mm | Left end | | Right Step | 25 x 21 x 21 mm | Right end | | V-Groove | 90°, 17 mm deep | Centered | | Through Hole | Ø18 mm | 18 mm from right, 11 mm top | | Square Cut | 7 x 7 mm | 18 mm from left, 14 mm high | --- ## **Final Answer** Your final answer should be a **neat isometric drawing** showing all visible features, with surface 'A' on the left. Use the above dimensions, ensure all details are proportionate, and remember **no hidden lines**. --- >If you need a **hand-drawn isometric sketch** or a **CAD model**, let me know!
