Give step-by-step solution with explanation and final answer:Task3 [ Pass Criteria P5] Manual hand drawing task (you must use a ruler, pencil, and you may print a copy of your template etc for this task) . If you find it difficult gaining access to a printer to print an A3 size template then you may create and use an A4 size template showing the same information on task 1 and print an A4 page to make your hand drawing) . Hand drawings made on blank paper will not be accepted. You will then insert an photographic image of your manual drawings into your assessment and also store a copy of them. Produce an assembly drawing for the Sprocket Product in Task 2 to include the following: - Three views in First Angle Projection (Front, End and Plan Views) at a suitable scale to best fit the template. ( Allow room for the addition of balloon referencing and a BOM) - Include overall width and height dimensions. * Create a BOM for the various parts that make up the assembly. Three columns will be sufficient, e.g. item number, part name and quantity. . Add Balloon referencing to tie in with the BOM on the end view. As your answer to task 3 you must insert a clear image of the drawing labelled task 3 for your assessor to quickly check. Checklist of evidence required: T3 — Insert a Snip image of your drawing into your assessment and include an actual copy of hand drawn drawing files. Ensure that the correct template and that dimensions are shown.

Question:

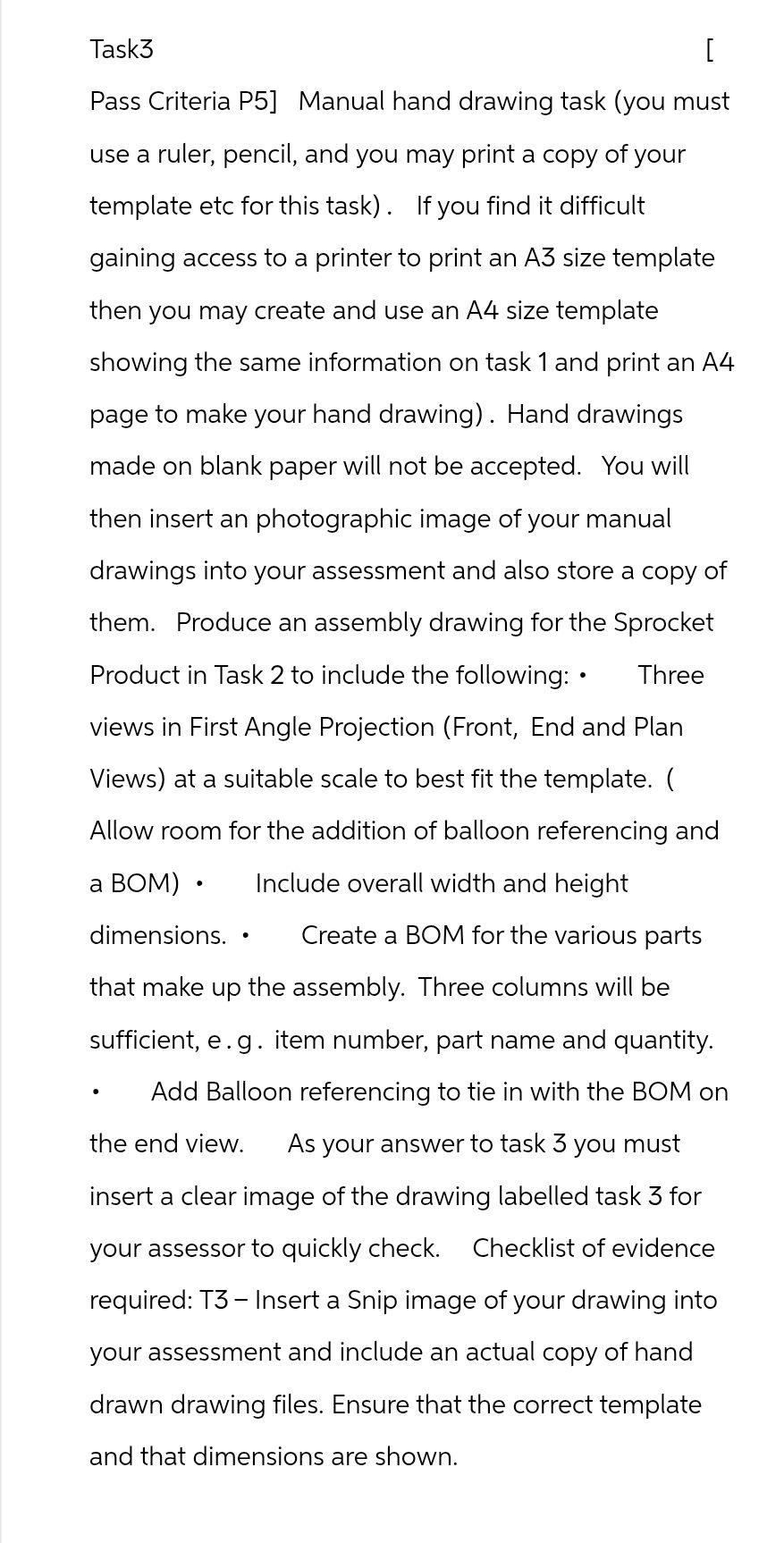

Give step-by-step solution with explanation and final answer:Uploaded ImageTask3 [ Pass Criteria P5] Manual hand drawing task (you must use a ruler, pencil, and you may print a copy of your template etc for this task) . If you find it difficult gaining access to a printer to print an A3 size template then you may create and use an A4 size template showing the same information on task 1 and print an A4 page to make your hand drawing) . Hand drawings made on blank paper will not be accepted. You will then insert an photographic image of your manual drawings into your assessment and also store a copy of them. Produce an assembly drawing for the Sprocket Product in Task 2 to include the following: - Three views in First Angle Projection (Front, End and Plan Views) at a suitable scale to best fit the template. ( Allow room for the addition of balloon referencing and a BOM) - Include overall width and height dimensions. * Create a BOM for the various parts that make up the assembly. Three columns will be sufficient, e.g. item number, part name and quantity. . Add Balloon referencing to tie in with the BOM on the end view. As your answer to task 3 you must insert a clear image of the drawing labelled task 3 for your assessor to quickly check. Checklist of evidence required: T3 — Insert a Snip image of your drawing into your assessment and include an actual copy of hand drawn drawing files. Ensure that the correct template and that dimensions are shown.

This is AI generated Response.
Asked by: Rahul
Created at: 2025-12-30 19:07:21

Final Answer:

Rendered Raw Text
Did you like this answer?
# Step-by-Step Solution for Task 3 ## 1. **Prepare Materials** - Gather a ruler, pencil, and eraser. - Obtain your template from Task 1 or Task 2 (either print A3 or A4 if A3 is not possible). ## 2. **Set Up Drawing Template** - Print your template on A3 or A4 paper as instructed. - Ensure the template includes space for three views plus a Bill of Materials (BOM). ## 3. **Manual Hand Drawing** - **Using your ruler and pencil, draw the following for the Sprocket Product:** - **Three views in First Angle Projection:** - **Front View** - **End View** - **Plan View (Top)** - Draw each view to a suitable scale so all fit clearly on your template. - Clearly **label each view**. ## 4. **Add Dimensions** - On each view, mark overall width and height (use your ruler for accuracy). - Label all important dimensions to ensure clarity. ## 5. **Add Balloon Referencing** - Draw circles (balloons) with numbers pointing to each separate part in the end view. - Each balloon number will correspond to an item in your BOM. ## 6. **Create Bill of Materials (BOM)** - Draw a table with at least **three columns**: - **Item Number** (matches balloon) - **Part Name** - **Quantity** - Fill in the table based on the parts in your assembly. ## 7. **Review and Store** - Double-check that all views, dimensions, balloon references, and BOM are included. - Store your hand-drawn paper safely. ## 8. **Insert Drawing Image** - Take a clear photograph or scan of your hand drawing. - Insert this image into your assessment file labelled **Task 3**. - Save and keep the original hand-drawn file. ## 9. **Checklist Before Submission** - [ ] Three views in First Angle Projection are present. - [ ] Overall width and height dimensions are shown. - [ ] Balloon referencing is included and matches the BOM. - [ ] BOM table with item, part name, quantity is present. - [ ] Drawing image is inserted and labelled as Task 3. - [ ] Original hand drawing is stored as evidence. --- ## **Final Answer Summary** For Task 3, you must manually create an assembly drawing of the Sprocket Product from Task 2 using a ruler and pencil, showing three views (Front, End, Plan) in first angle projection, all required dimensions, balloon referencing, and a BOM table. Insert a clear image of this drawing labelled as Task 3 in your assessment and keep the original hand-drawn copy. --- **Tip:** If you have access to a phone or scanner, use it to create a clear, readable image for your assessment file. Double-check all requirements before submission!
