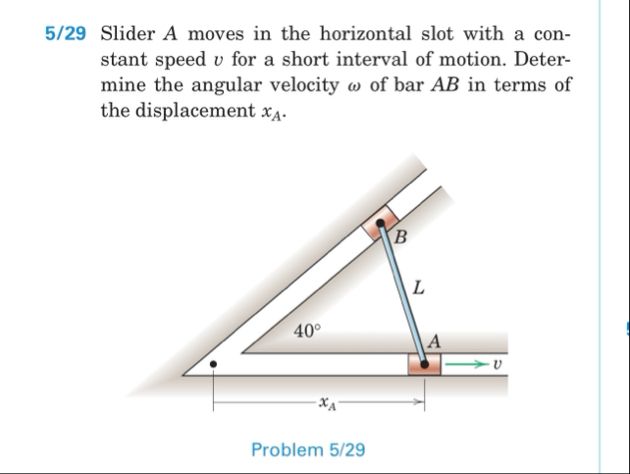

## Step 1: Geometry and Position Relationship Let’s denote the length of bar \( AB \) as \( L \), and the angle at the corner as \( 40^\circ \). Let \( x_A \) be the horizontal distance from the corner to slider \( A \). Let \( \theta \) be the angle that bar \( AB \) makes with the horizontal. From the triangle: \[ x_A = L \cos \theta \] **Explanation:** We use the cosine relationship because \( x_A \) is the adjacent side to angle \( \theta \), and \( L \) is the hypotenuse of the triangle formed by the bar. --- ## Step 2: Differentiate to Find Angular Velocity Differentiate both sides with respect to time \( t \): \[ \frac{dx_A}{dt} = -L \sin \theta \frac{d\theta}{dt} \] Let \( v = \frac{dx_A}{dt} \) and \( \omega = \frac{d\theta}{dt} \): \[ v = -L \sin \theta \, \omega \] \[ \omega = -\frac{v}{L \sin \theta} \] From Step 1, \( \cos \theta = \frac{x_A}{L} \), so: \[ \sin \theta = \sqrt{1 - \cos^2 \theta} = \sqrt{1 - \left(\frac{x_A}{L}\right)^2} \] **Explanation:** By differentiating, we relate the linear speed of slider \(A\) to the angular speed of the bar, and then convert everything in terms of \(x_A\). --- ## **Final Answer** \[ \boxed{ \omega = -\frac{v}{\sqrt{L^2 - x_A^2}} } \] Where: - \( v \) is the speed of slider A, - \( L \) is the length of bar AB, - \( x_A \) is the current horizontal distance of slider A from the corner.
