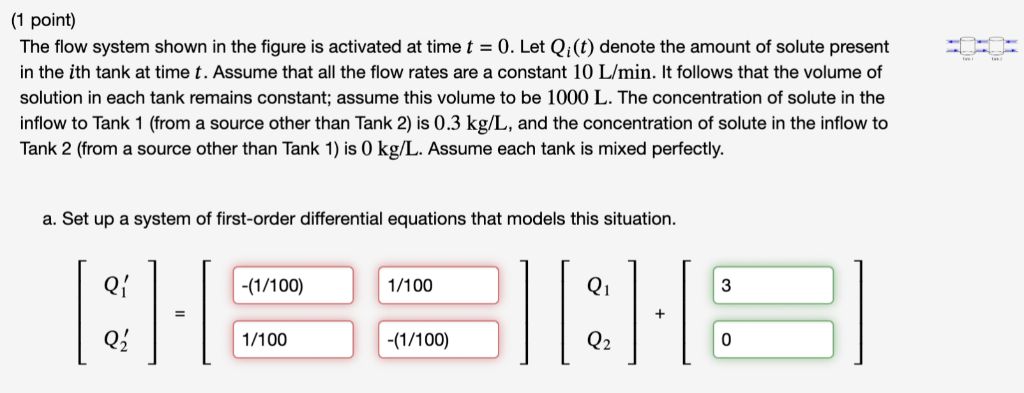

give answer in 2 step with explanation at the end of each step and final answer at the end:(1 point)
The flow system shown in the figure is activated at time ¢ = 0. Let Q;(t) denote the amount of solute present Fe i eo J
in the ith tank at time ¢. Assume that all the flow rates are a constant 10 L/min. It follows that the volume of
solution in each tank remains constant; assume this volume to be 1000 L. The concentration of solute in the
inflow to Tank 1 (from a source other than Tank 2) is 0.3 kg/L, and the concentration of solute in the inflow to
Tank 2 (from a source other than Tank 1) is 0 kg/L. Assume each tank is mixed perfectly.
a. Set up a system of first-order differential equations that models this situation.
Q/ roo) | [1100 | Q B
= ———— + ——
Qf | 1/100 ] [-(17100) J Q, lo
Question:
give answer in 2 step with explanation at the end of each step and final answer at the end:(1 point)
The flow system shown in the figure is activated at time ¢ = 0. Let Q;(t) denote the amount of solute present Fe i eo J
in the ith tank at time ¢. Assume that all the flow rates are a constant 10 L/min. It follows that the volume of
solution in each tank remains constant; assume this volume to be 1000 L. The concentration of solute in the
inflow to Tank 1 (from a source other than Tank 2) is 0.3 kg/L, and the concentration of solute in the inflow to
Tank 2 (from a source other than Tank 1) is 0 kg/L. Assume each tank is mixed perfectly.
a. Set up a system of first-order differential equations that models this situation.
Q/ roo) | [1100 | Q B
= ———— + ——
Qf | 1/100 ] [-(17100) J Q, lo
This is AI generated Response.
Asked by: Pagal
Created at: 2025-07-27 10:12:36
Final Answer:
RenderedRaw Text
Did you like this answer?
Let's break down the solution into 2 steps as requested:
---
**Step 1: Write the differential equations for each tank.**
- **Tank 1:**
- **Inflow:**
- From external source: \(10 \text{ L/min} \times 0.3 \text{ kg/L} = 3 \text{ kg/min}\)
- From Tank 2: \(10 \text{ L/min} \times \frac{Q_2}{1000} \text{ kg/L}\)
- **Outflow:**
- To Tank 2: \(10 \text{ L/min} \times \frac{Q_1}{1000} \text{ kg/L}\)
- **Rate of change:**
\[
Q_1' = 3 + 10\frac{Q_2}{1000} - 10\frac{Q_1}{1000}
\]
\[
Q_1' = 3 + \frac{Q_2}{100} - \frac{Q_1}{100}
\]
- **Tank 2:**
- **Inflow:**
- From Tank 1: \(10 \text{ L/min} \times \frac{Q_1}{1000} \text{ kg/L}\)
- **Outflow:**
- To Tank 1: \(10 \text{ L/min} \times \frac{Q_2}{1000} \text{ kg/L}\)
- **Rate of change:**
\[
Q_2' = 10\frac{Q_1}{1000} - 10\frac{Q_2}{1000}
\]
\[
Q_2' = \frac{Q_1}{100} - \frac{Q_2}{100}
\]
**Explanation:**
Here, the rates of change for the solute in each tank are determined by the net inflow and outflow of solute, considering the concentration and flow rates.
---
**Step 2: Write the system in matrix form.**
\[
\begin{bmatrix}
Q_1' \\
Q_2'
\end{bmatrix}
=
\begin{bmatrix}
-\frac{1}{100} & \frac{1}{100} \\
\frac{1}{100} & -\frac{1}{100}
\end{bmatrix}
\begin{bmatrix}
Q_1 \\
Q_2
\end{bmatrix}
+
\begin{bmatrix}
3 \\
0
\end{bmatrix}
\]
**Explanation:**
This matrix system captures the coupled nature of the tanks: each tank's solute changes depend both on its own current solute and the solute in the other tank, as well as any external input.
---
**Final Answer:**
\[
\boxed{
\begin{bmatrix}
Q_1' \\
Q_2'
\end{bmatrix}
=
\begin{bmatrix}
-\frac{1}{100} & \frac{1}{100} \\
\frac{1}{100} & -\frac{1}{100}
\end{bmatrix}
\begin{bmatrix}
Q_1 \\
Q_2
\end{bmatrix}
+
\begin{bmatrix}
3 \\
0
\end{bmatrix}
}
\]
