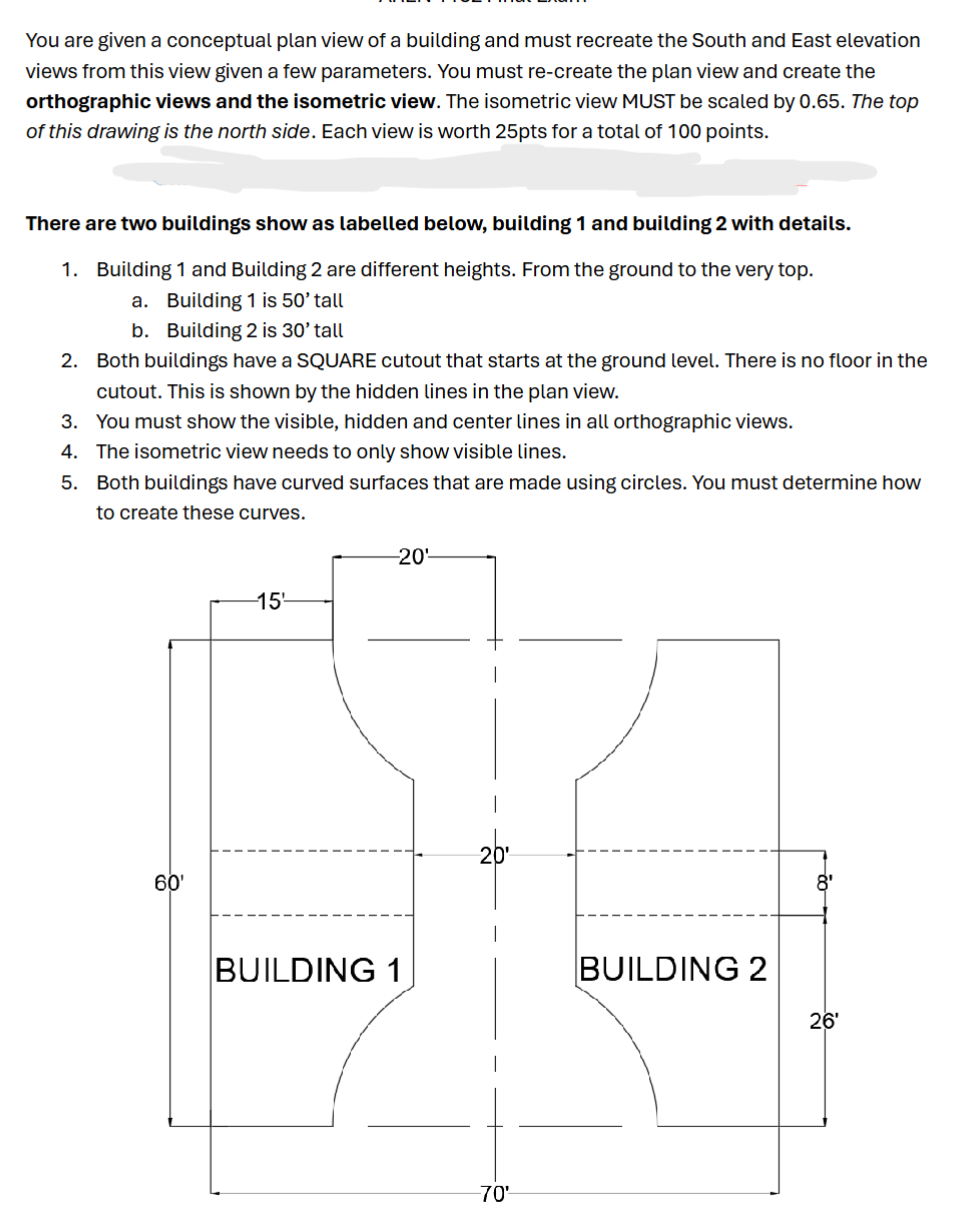

## **Step 1: Understanding the Plan View and Building Details** ### **Explanation:** - The given image is a plan view ("top-down" view) of two buildings with labeled dimensions. - **Building 1:** - Height: 50’ - Dimensions: 60’ (north-south) × 35’ (east-west, from 15’ + 20’) - SQUARE cutout at the center, with curved edges made using circles. - **Building 2:** - Height: 30’ - Dimensions: 26’ (north-south) × 28’ (east-west, from 8’ + 20’) - Same type of SQUARE cutout. - The **cutout** in both buildings is 20' x 20', located at the center, with the curves formed by circles (tangents at corners). - The **dashed lines** represent hidden edges (the square cutout at ground level). #### **Summary of Step 1:** You have identified all required dimensions, features (cutout, curves), and the purpose of hidden lines in the plan. --- ## **Step 2: Creating the South and East Elevations** ### **Explanation:** - **South Elevation:** - This is the view from the bottom of the plan (looking north). - Both buildings appear side by side (left: Building 1, right: Building 2). - Heights: Building 1 (50'), Building 2 (30'). - The **cutout** will appear as a rectangular notch at the bottom center of each building; the curves will show as arcs on both sides of the notch. - The outermost rectangle represents the building's full width and height. - Hidden lines for the cutout square must be shown. - **East Elevation:** - This is the view from the right side of the plan (looking west). - You will see the depth of each building (20’ for the cutout, plus the side extensions). - Heights as above. - The **cutout** will again appear as a notch, with curves visible as arcs. - Hidden lines for the cutout. #### **Summary of Step 2:** You should now be able to draw the South and East elevations, showing the building heights, outer edges, square cutout notches at the bottom (with curves), and use dashed hidden lines for the cutout edges. --- ## **Final Answer** - **Step 1:** Analyze the plan view for all dimensions, cutout locations, and identify features to be shown as hidden lines in elevations. - **Step 2:** Use these details to construct the South and East elevation views, showing correct heights, building outlines, cutout notches, curves, and hidden lines. **With these two steps completed, you can then move on to drawing the orthographic and isometric views as required.**

# Building Elevation and Isometric View Creation ## **Step 1: Understanding the Plan View and Building Details** ### **Explanation:** - The provided plan view depicts two buildings with specific dimensions and features. #### **Building Details:** - **Building 1:** - **Height:** 50 feet - **Dimensions:** 60 feet (north-south) × 35 feet (east-west) - **Cutout:** 20 feet x 20 feet, located centrally. - **Building 2:** - **Height:** 30 feet - **Dimensions:** 26 feet (north-south) × 28 feet (east-west) - **Cutout:** Same dimensions as Building 1. #### **Features:** - **Curved Surfaces:** Formed by circles at the edges of the cutout. - **Hidden Lines:** Represent the cutout at ground level. ### **Summary of Step 1:** You have identified critical dimensions, features of the buildings, and the purpose of hidden lines in the elevation views. --- ## **Step 2: Creating the South and East Elevations** ### **Explanation:** - **South Elevation:** - View facing north, displaying both buildings. - **Building Heights:** - Building 1: 50 feet - Building 2: 30 feet - **Cutouts:** Rectangular notches at the bottom center of each building with curves represented as arcs. - **Hidden Lines:** Indicate the cutout edges. - **East Elevation:** - View from the right side (looking west). - Displays the depth of each building. - **Building Heights:** Remain the same as in the South elevation. - **Cutouts:** Similar notches with curves. - **Hidden Lines:** Show the edges of the cutouts. ### **Summary of Step 2:** You are prepared to draw the South and East elevations, incorporating the heights, outlines, cutouts, curves, and hidden lines. --- ## **Final Answer** - **Step 1:** Analyze the plan view, extracting dimensions, cutout locations, and identifying features for hidden lines in the elevations. - **Step 2:** Construct the South and East elevations, ensuring accurate heights, outlines, cutout notches, curves, and hidden lines are represented. With these steps completed, proceed to draw the orthographic and isometric views as specified.
