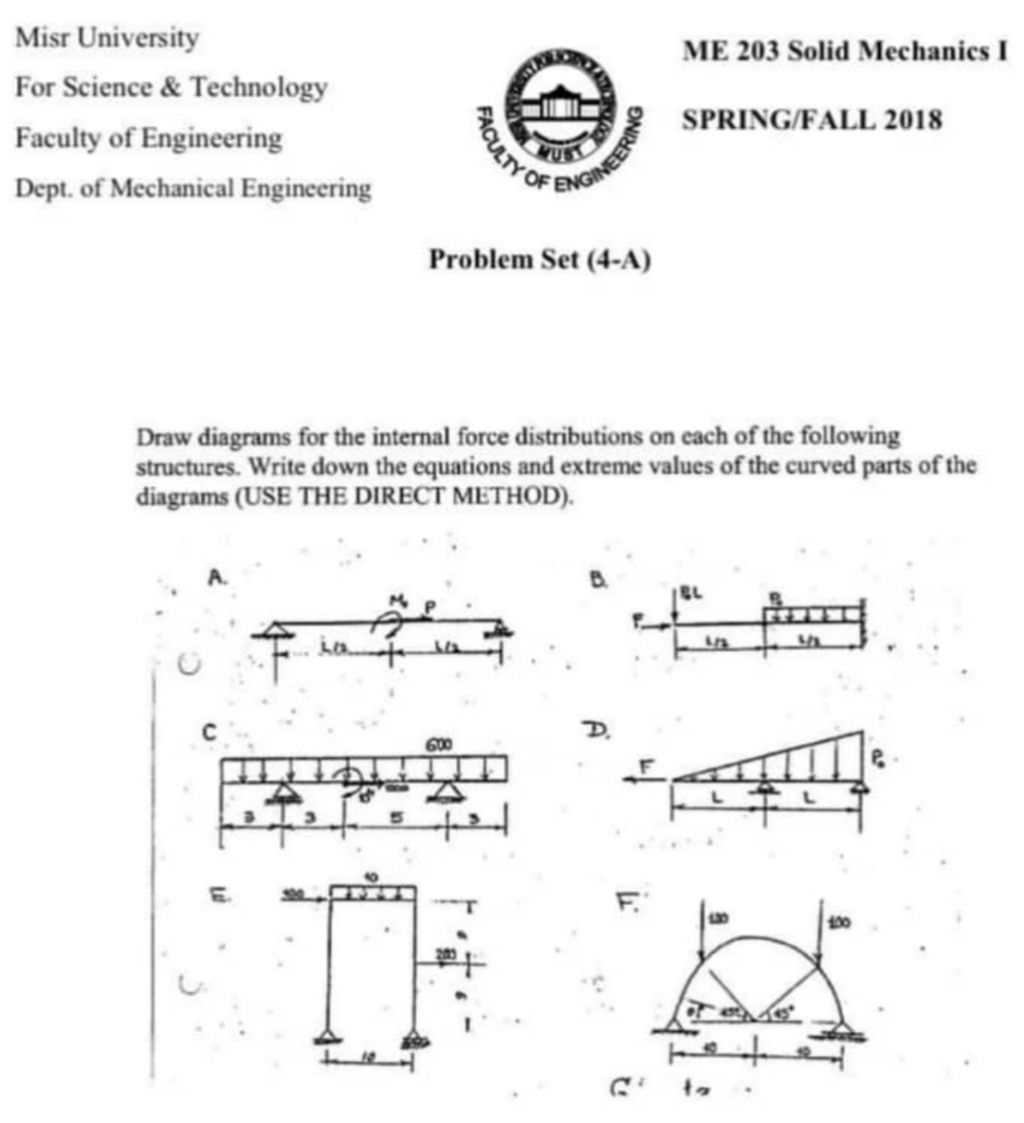

Sure! Let's solve **Problem A** step by step. (If you want another problem/letter, let me know!) --- ## **Problem A** ### **Step 1: Find Support Reactions** #### **Given:** - Simply supported beam - Lengths: \( a \) (left to load), \( b \) (right to load) - Point load \( P \) at distance \( a \) from the left. - Moment \( M \) at same position. #### **Reactions:** Let \( R_A \) (left support), \( R_B \) (right support). **Sum of moments about A:** \[ \sum M_A = : \quad -P \cdot a - M + R_B \cdot (a+b) = \] \[ R_B = \frac{P \cdot a + M}{a+b} \] **Sum of vertical forces:** \[ R_A + R_B = P \] \[ R_A = P - R_B = P - \frac{P \cdot a + M}{a+b} \] **Explanation:** We use equilibrium equations to solve for the reactions at the supports due to the applied force and moment. --- ### **Step 2: Draw Shear Force and Bending Moment Diagrams** #### **Shear Force Diagram (SFD):** - From \( x = \) to \( x = a \): \( V = R_A \) - At \( x = a \): Shear drops by \( P \) - From \( x = a^+ \) to \( x = a+b \): \( V = R_A - P \) #### **Bending Moment Diagram (BMD):** - From \( x = \) to \( x = a \): \( M(x) = R_A \cdot x \) - At \( x = a \): Moment jumps by \( -M \) (applied external moment) - From \( x = a^+ \) to \( x = a+b \): \( M(x) = R_A \cdot x - P(x-a) - M \) **Extreme Values:** - Maximum moment at point of external moment or supports. **Explanation:** We use the direct method: cut the beam at a section, sum moments and forces to the left or right, and plot the values. Any point load or moment causes a jump in the SFD or BMD. --- ## **Final Answer (Summary for A):** - **Reactions:** \( R_A = P - \frac{P a + M}{a+b} \) \( R_B = \frac{P a + M}{a+b} \) - **Shear force:** - Left of load: \( R_A \) - Right of load: \( R_A - P \) - **Bending moment:** - Left of load: \( M(x) = R_A x \) - Right of load: \( M(x) = R_A x - P(x-a) - M \) - Jump at \( x=a \): \( -M \) - **Extreme values:** At supports and at point of applied moment. --- *If you need the diagrams or want a different part (B, C, etc.), let me know!*
