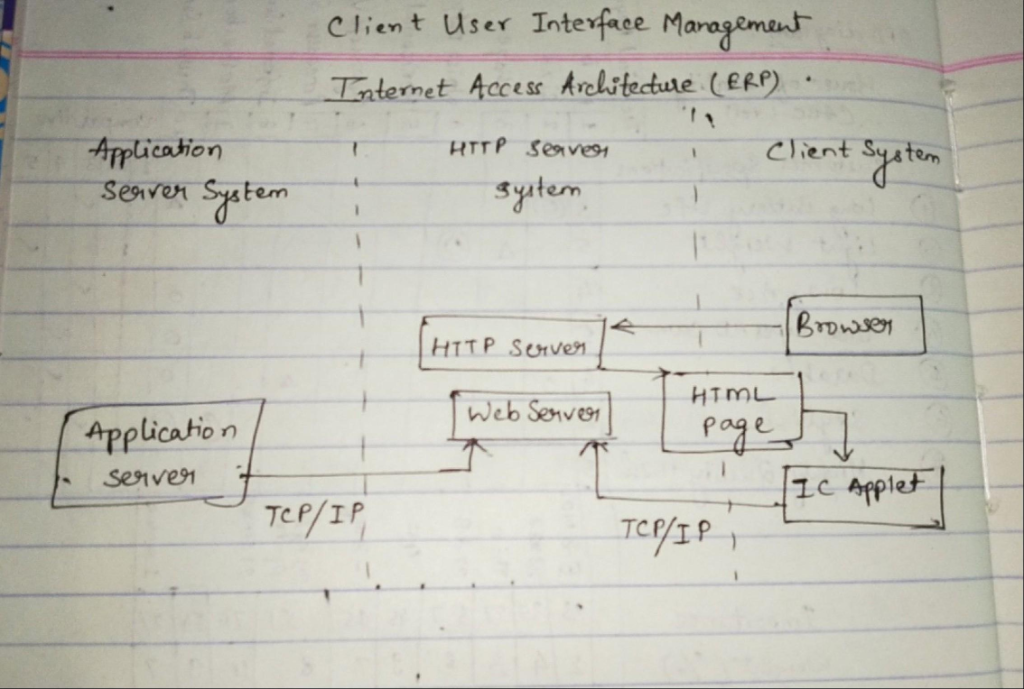

Here is a clean, digital version of your **Internet Access Architecture (ERP)** diagram in Markdown with simple ASCII art:
---
# Client User Interface Management
## Internet Access Architecture (ERP)
| Application Server System | HTTP Server System | Client System |
|--------------------------|-------------------|---------------|
```
+-----------------+ +-----------------+ +---------+
| Application | | HTTP Server |<----->| Browser |
| Server |<------>| /Web Server | +---------+
+-----------------+ TCP/IP+-----------------+
| ^
| |
TCP/IP| |
v |
+--------------------+ |
| IC Applet |<---------+
+--------------------+ ^
^ |
| |
+-------------+ |
| HTML Page |----------------+
+-------------+
```
### Notes:
- **Application Server** connects via **TCP/IP** to the **Web Server**.
- **Web Server** serves **HTML Page**.
- **HTML Page** interacts with **IC Applet**.
- **HTTP Server** communicates with the **Browser**.
- **IC Applet** also connects back to the **Application Server** via **TCP/IP**.
---
Let me know if you need this as a proper flowchart or in another format!
