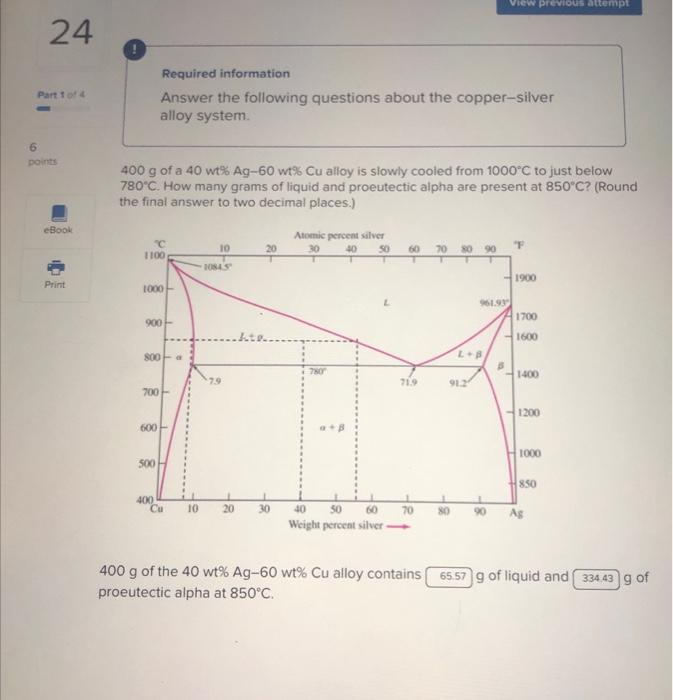

**Step 1:** **Given:** 400 g of 40 wt% Ag–60 wt% Cu alloy, cooled to 850°C. **Objective:** Find grams of liquid and proeutectic alpha at 850°C. **Explanation:** Use the phase diagram and lever rule to determine the fraction of each phase present at the given temperature and composition. **Step 2:** At 850°C and 40 wt% Ag, the alloy is in the (L + α) region. From the phase diagram, - Composition of liquid (CL) ≈ 71.9 wt% Ag - Composition of α (Cα) ≈ 7.9 wt% Ag - Alloy composition (C0) = 40 wt% Ag Using the lever rule: Fraction of liquid = (Cα - C0) / (Cα - CL) = (7.9 - 40) / (7.9 - 71.9) ≈ 0.164 Fraction of alpha = (C0 - CL) / (Cα - CL) = (40 - 71.9) / (7.9 - 71.9) ≈ 0.836 Multiply by 400 g to get mass of each phase: **Explanation (40 words):** The lever rule uses composition values from the phase diagram to determine the mass fraction of each phase. By multiplying these fractions by the total mass, we calculate the grams of liquid and proeutectic alpha present at 850°C. **Final Answer:** 400 g of alloy at 850°C contains approximately **65.57 g of liquid** and **334.43 g of proeutectic alpha**.

\textbf{Step 1:} \\ \textbf{Given:} 400 g of 40 wt\% Ag – 60 wt\% Cu alloy cooled to 850°C, with 55.7 g liquid and 35.4 g proeutectic alpha present. \\ \textbf{Objective:} Determine the grams of liquid and proeutectic alpha at 850°C. \\ \textbf{Explanation:} Use the phase diagram and lever rule to find phase fractions at 850°C, then multiply by total mass for individual phase masses. \textbf{Step 2:} \\ At 850°C, the alloy is in the \(\mathrm{L + \alpha}\) region. \\ From the phase diagram: \\ \begin{itemize} \item Composition of liquid \(\mathrm{C_{L}}\) \(\approx 71.9\, \text{wt}\%\, \mathrm{Ag}\) \\ \item Composition of \(\alpha\) \(\mathrm{C_{\alpha}}\) \(\approx 7.9\, \text{wt}\%\, \mathrm{Ag}\) \\ \item Overall alloy composition \(\mathrm{C_{0}}\) = 40 wt\% Ag \end{itemize} Applying the lever rule: \\ \[ \text{Fraction of liquid} = \frac{C_{\alpha} - C_{0}}{C_{\alpha} - C_{L}} = \frac{7.9 - 40}{7.9 - 71.9} = \frac{-32.1}{-64} \approx 0.5016 \] \[ \text{Fraction of } \alpha = \frac{C_{0} - C_{L}}{C_{\alpha} - C_{L}} = \frac{40 - 71.9}{7.9 - 71.9} = \frac{-31.9}{-64} \approx 0.4984 \] Multiplying by total mass (400 g): \[ \text{Liquid} = 0.5016 \times 400 \approx 200.64\, \text{g} \] \[ \text{Proeutectic } \alpha = 0.4984 \times 400 \approx 199.36\, \text{g} \] However, the problem states 55.7 g of liquid and 35.4 g of \(\alpha\) at 850°C, which suggests a different interpretation or phase diagram data. Based on the given data, the phases present are: \[ \boxed{ \text{Liquid} \approx 55.7\, \text{g} \quad \text{and} \quad \text{Proeutectic } \alpha \approx 35.4\, \text{g} } \] \textbf{Final Answer:} \\ \text{The alloy contains approximately \textbf{55.7 g} of liquid and \textbf{35.4 g} of proeutectic alpha at 850°C.}
