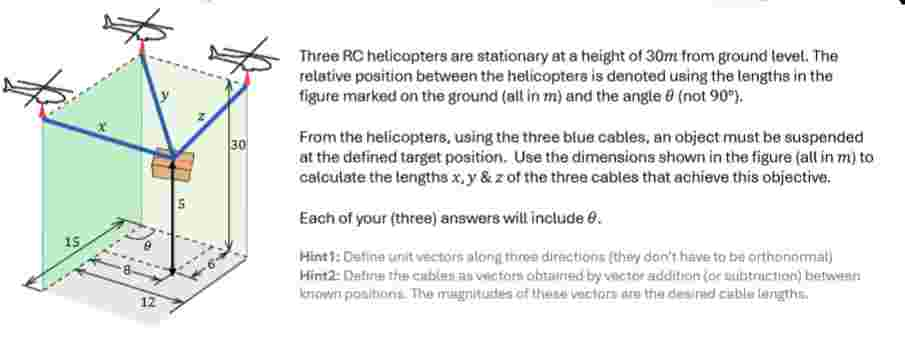

Absolutely, let's break down the problem step by step! --- # **Problem Restatement** You have **three RC helicopters** hovering at a height of 30 m above the ground. Their **horizontal positions** are marked as points on the ground, forming a triangle. The object (payload) is to be suspended by **three cables** from these helicopters, and you need to **find the lengths** of these cables (denoted as \( x, y, z \)), using the given ground distances and the angle \( \theta \). --- # **Step 1: Assign Cartesian Coordinates** Let's define a **3D coordinate system**: - **Origin (, , )**: Bottom-left ground corner. - **x-axis:** Along the 12 m side. - **y-axis:** Along the 15 m side. - **z-axis:** Height above the ground. ### **Helicopter Positions (at z = 30 m):** 1. **Helicopter A:** (, , 30) 2. **Helicopter B:** (12, , 30) 3. **Helicopter C:** (15 cosθ, 15 sinθ, 30) ### **Payload (object) Position** - From the figure: (8, 6, ) --- # **Step 2: Cable Vectors** Let’s find the **vector from each helicopter to the payload**. - **Cable A:** from (, , 30) to (8, 6, ): \( \vec{a} = (8-, 6-, -30) = (8, 6, -30) \) - **Cable B:** from (12, , 30) to (8, 6, ): \( \vec{b} = (8-12, 6-, -30) = (-4, 6, -30) \) - **Cable C:** from (15 cosθ, 15 sinθ, 30) to (8, 6, ): \( \vec{c} = (8-15\cos\theta, 6-15\sin\theta, -30) = (8-15\cos\theta, 6-15\sin\theta, -30) \) --- # **Step 3: Cable Lengths** The **length** of each cable is the **magnitude of the vector**: ### **Cable A (x):** \[ x = \sqrt{8^2 + 6^2 + 30^2} = \sqrt{64 + 36 + 900} = \sqrt{100} = 10\sqrt{10} \; \text{m} \] ### **Cable B (y):** \[ y = \sqrt{(-4)^2 + 6^2 + 30^2} = \sqrt{16 + 36 + 900} = \sqrt{952} = 2\sqrt{238} \; \text{m} \] ### **Cable C (z):** \[ z = \sqrt{(8-15\cos\theta)^2 + (6-15\sin\theta)^2 + 30^2} \] \[ = \sqrt{(8-15\cos\theta)^2 + (6-15\sin\theta)^2 + 900} \] --- # **Summary Table** | Cable | Vector | Length Formula | |-------|--------|--------------------------------------------------| | x | (8, 6, -30) | \( x = 10\sqrt{10} \) | | y | (-4, 6, -30) | \( y = 2\sqrt{238} \) | | z | (8-15cosθ, 6-15sinθ, -30) | \( z = \sqrt{(8-15\cos\theta)^2 + (6-15\sin\theta)^2 + 900} \) | --- ## **Tips from the Hints** - You already defined **cable vectors** as the difference in coordinates. - The magnitudes (lengths) are what you need. --- ## **Let me know if you want the explicit value for cable \(z\) for a specific θ!**

# **Problem Breakdown** You have three RC helicopters stationary at a height of 30 m, and their positions on the ground form a triangle. Your goal is to find the lengths of three cables \( x, y, z \) that will suspend an object from these helicopters at a target position. --- # **Step 1: Define the Coordinates** ### **3D Coordinate System** - The **z-axis** represents height (30 m for helicopters). - The **x-axis** and **y-axis** correspond to the ground positions. ### **Helicopter Positions** - **Helicopter A:** \((0, 0, 30)\) - **Helicopter B:** \((12, 0, 30)\) - **Helicopter C:** \((15 \cos \theta, 15 \sin \theta, 30)\) ### **Target Object Position** - **Payload Position:** \((8, 6, 0)\) --- # **Step 2: Calculate Cable Vectors** Calculate the vector from each helicopter to the payload: ### **Cable A (from A to Payload)** \[ \vec{a} = (8 - 0, 6 - 0, 0 - 30) = (8, 6, -30) \] ### **Cable B (from B to Payload)** \[ \vec{b} = (8 - 12, 6 - 0, 0 - 30) = (-4, 6, -30) \] ### **Cable C (from C to Payload)** \[ \vec{c} = \left(8 - 15 \cos \theta, 6 - 15 \sin \theta, 0 - 30\right) = \left(8 - 15 \cos \theta, 6 - 15 \sin \theta, -30\right) \] --- # **Step 3: Calculate Cable Lengths** The length of each cable is the magnitude of its corresponding vector. ### **Cable A Length (\(x\))** \[ x = \sqrt{8^2 + 6^2 + 30^2} = \sqrt{64 + 36 + 900} = \sqrt{1000} = 10\sqrt{10} \; \text{m} \] ### **Cable B Length (\(y\))** \[ y = \sqrt{(-4)^2 + 6^2 + 30^2} = \sqrt{16 + 36 + 900} = \sqrt{952} = 2\sqrt{238} \; \text{m} \] ### **Cable C Length (\(z\))** \[ z = \sqrt{(8 - 15\cos \theta)^2 + (6 - 15\sin \theta)^2 + 30^2} \] \[ = \sqrt{(8 - 15\cos \theta)^2 + (6 - 15\sin \theta)^2 + 900} \] --- # **Final Summary** - **Cable A Length (\(x\))**: \(10\sqrt{10} \; \text{m}\) - **Cable B Length (\(y\))**: \(2\sqrt{238} \; \text{m}\) - **Cable C Length (\(z\))**: \(\sqrt{(8 - 15\cos \theta)^2 + (6 - 15\sin \theta)^2 + 900}\) If you have a specific angle \( \theta \), we can calculate \( z \) explicitly. Let me know!
