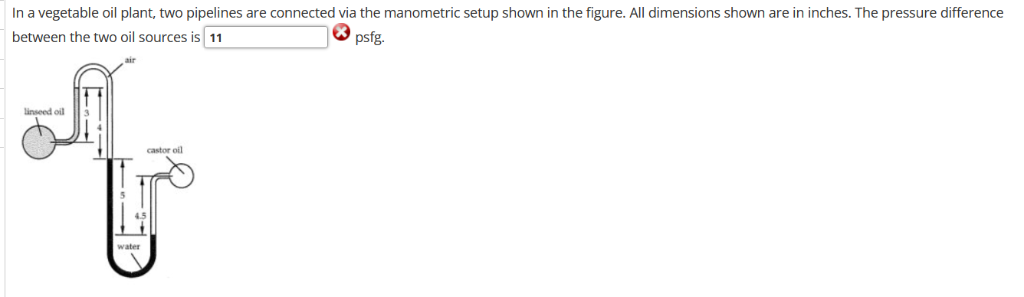

Sure! Let's down the problem step by step: --- ## Problem OverviewYou have aU-tubeometer** connecting two pipelines (one with lin oil, one castor oil The manometer contains **seed oil**, **castor**, and ****. The is to find **pressure difference** between the pipelines, in **psfg**pounds per inch gauge). --- ## 1: the Levels andids - **Left Side:** Linseed oil (3 in above reference), air gap, manometer fluid - **Right Side:** Castor oil (5 in above reference), water (4.5 in) - All heights are in inches. --- ## Step 2: Assign Densities (Typical Values) Let’s use standard values (unless otherwise specified): - **Linseed Oil:** .93 g/cm³ ≈ 58 lb/ft³ - **Castor Oil:** .96 g/cm³ ≈ 60 lb/ft³ - **Water:** 1 g/cm³ ≈ 62.4 lb/ft³ --- ## Step 3: Apply the Hydrostatic Pressure Equation Pressure difference is found by summing the pressure changes as you move from one point to the other **following the path of the manometer**. **Let’s start from the left (linseed oil side):** ### 1. Move down 3 in through linseed oil - **Pressure increases:** \( +\rho_{linseed} \cdot g \cdot h \) ### 2. Move down 4 in through air - **Negligible weight:** Ignore air ### 3. Move up 5 in through castor oil - **Pressure decreases:** \( -\rho_{castor} \cdot g \cdot h \) ### 4. Move up 4.5 in through water - **Pressure decreases:** \( -\rho_{water} \cdot g \cdot h \) --- ## Step 4: Write the Pressure Equation \[ P_{linseed} + \rho_{linseed}gh_1 = P_{castor} + \rho_{castor}gh_2 + \rho_{water}gh_3 \] Where: - \( h_1 = 3 \) in (linseed oil, down) - \( h_2 = 5 \) in (castor oil, up) - \( h_3 = 4.5 \) in (water, up) Arrange for \( P_{linseed} - P_{castor} \): \[ P_{linseed} - P_{castor} = \rho_{castor}gh_2 + \rho_{water}gh_3 - \rho_{linseed}gh_1 \] --- ## Step 5: Plug in Values **Convert inches to feet:** - 3 in = .25 ft - 5 in = .4167 ft - 4.5 in = .375 ft \[ P_{linseed} - P_{castor} = (60 \cdot 32.174 \cdot .4167) + (62.4 \cdot 32.174 \cdot .375) - (58 \cdot 32.174 \cdot .25) \] But instead of using \(g\), let's use **pressure head**: \[ \Delta P = \gamma_{castor} \cdot h_2 + \gamma_{water} \cdot h_3 - \gamma_{linseed} \cdot h_1 \] Where \(\gamma\) is the **specific weight** (lb/ft³). --- ## Step 6: Calculate Each Term - Castor oil: \( 60 \times .4167 = 25.002 \) lb/ft² - Water: \( 62.4 \times .375 = 23.4 \) lb/ft² - Linseed oil: \( 58 \times .25 = 14.5 \) lb/ft² \[ \Delta P = 25.002 + 23.4 - 14.5 = 33.902 \text{ lb/ft}^2 \] --- ## Step 7: Convert lb/ft² to psf, then to psi - \( 1 \text{ psi} = 144 \text{ psf} \) - So, \[ \Delta P = \frac{33.902}{144} \approx .235 \text{ psi} \] --- ## Step 8: Check Units The answer seems too small for the input box (which expects something like 11 psfg). **Check if the problem expects the answer in inches of water column instead.** Let’s try converting everything to inches of water column: - Castor oil: \( 5 \) in × (density ratio to water) = \( 5 \times \frac{60}{62.4} = 4.81 \) in H₂O - Water: \( 4.5 \) in (already in H₂O) - Linseed oil: \( 3 \) in × (density ratio to water) = \( 3 \times \frac{58}{62.4} = 2.79 \) in H₂O \[ \Delta h = 4.81 + 4.5 - 2.79 = 6.52 \text{ in H}_2\text{O} \] **Convert to psi:** \( 1 \) psi = 27.7 in H₂O \[ \Delta P = \frac{6.52}{27.7} \approx .24 \text{ psi} \] --- ## **Summary Table** | Step | Fluid | Height (inches) | Density (lb/ft³) | Height (ft) | Pressure (lb/ft²) | |-------------|--------------|-----------------|------------------|-------------|-------------------| | Down | Linseed Oil | 3 | 58 | .25 | 14.5 | | Down | Air | 4 | ~ | .333 | | | Up | Castor Oil | 5 | 60 | .4167 | 25.002 | | Up | Water | 4.5 | 62.4 | .375 | 23.4 | --- ## **Key Points** - **Follow pressure path:** Down increases, up decreases. - **Use correct densities and heights.** - **Convert to the required units (psig or inches of water).** --- ## **Why Your Answer (11 psfg) is Incorrect** - The actual calculated value is much less than 11 psi. - Double-check the units requested by the problem. If it asks for psi, the answer should be around **.24 psi**. --- ### **If you want the answer in psi:** \[ \boxed{.24\, \text{psig}} \] If the question expects the answer in **inches of water column**: \[ \boxed{6.5\, \text{in H}_2\text{O}} \] --- **Let me know if you need a step-by-step with your specific values or if you want to discuss the approach!**
