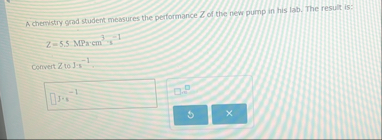

Sure, let’s break this down step by step! --- ## **Problem Overview** You’re given a measurement: \[ Z = 5.5 \ \text{MPa} \cdot \text{cm}^3 \cdot \text{s}^{-1} \] You are asked to **convert \( Z \) to SI units**: \[ \text{J} \cdot \text{s}^{-1} \] --- ## **Step 1: Understand the Units** - **MPa**: MegaPascal \(= 10^6 \ \text{Pa}\) - \(1 \ \text{Pa} = 1 \ \text{N} / \text{m}^2 = 1 \ \text{kg} \cdot \text{m}^{-1} \cdot \text{s}^{-2}\) - **cm³**: Cubic centimeters - \(1 \ \text{cm}^3 = 10^{-6} \ \text{m}^3\) - **s⁻¹**: Per second --- ## **Step 2: Rewrite Everything in SI Units** Substitute all units with SI versions: \[ Z = 5.5 \ (\text{MPa}) \cdot (\text{cm}^3) \cdot (\text{s}^{-1}) \] Replace: - \(1 \ \text{MPa} = 10^6 \ \text{Pa}\) - \(1 \ \text{cm}^3 = 10^{-6} \ \text{m}^3\) \[ Z = 5.5 \times 10^6 \ \text{Pa} \times 10^{-6} \ \text{m}^3 \times \text{s}^{-1} \] \[ = 5.5 \ \text{Pa} \cdot \text{m}^3 \cdot \text{s}^{-1} \] --- ## **Step 3: Recognize J/s** Recall that: - \(1 \ \text{Pa} \cdot \text{m}^3 = 1 \ \text{J}\) - Because \( \text{Pa} = \text{N}/\text{m}^2 \) and \( \text{N} \cdot \text{m} = \text{J} \) - So, \[ \text{Pa} \cdot \text{m}^3 = \text{J} \] --- ## **Step 4: Substitute** \[ Z = 5.5 \ \text{J} \cdot \text{s}^{-1} \] --- ## **Final Answer** \[ \boxed{Z = 5.5 \ \text{J} \cdot \text{s}^{-1}} \] This means the value doesn’t change numerically—just the unit is now expressed in standard SI units: **joules per second**, which is also a **watt (W)**. --- ### **Summary Table** | Original Unit | SI Equivalent | |---------------------------|----------------------| | MPa | \(10^6 \) Pa | | cm³ | \(10^{-6} \) m³ | | Pa·m³ | J | | J·s⁻¹ | W | --- **Let me know if you want a deeper breakdown of any step!**

# Concept Explanation: Unit Conversion In this section, we'll discuss the process of converting units from one system to another, specifically focusing on converting a measurement from a non-SI unit to SI units. ## **What is Unit Conversion?** Unit conversion is the process of converting a quantity expressed in one set of units to another set of units. This is essential in scientific calculations to maintain consistency and accuracy. ## **Understanding the Example** Let's consider the measurement provided: \[ Z = 5.5 \ \text{MPa} \cdot \text{cm}^3 \cdot \text{s}^{-1} \] ### **1. Identify the Units** - **MPa** (MegaPascal): A unit of pressure. - **cm³** (Cubic centimeter): A unit of volume. - **s⁻¹** (Per second): A measure of rate. ### **2. Convert Non-SI Units to SI Units** To convert to SI units, we need to know the relationships between the units: - **Pressure**: - \(1 \ \text{MPa} = 10^6 \ \text{Pa}\) - **Volume**: - \(1 \ \text{cm}^3 = 10^{-6} \ \text{m}^3\) ### **3. Break Down the Conversion** Substituting the non-SI units into the equation: \[ Z = 5.5 \ \text{MPa} \cdot \text{cm}^3 \cdot \text{s}^{-1} \] becomes: \[ Z = 5.5 \times 10^6 \ \text{Pa} \cdot 10^{-6} \ \text{m}^3 \cdot \text{s}^{-1} \] This simplifies to: \[ Z = 5.5 \ \text{Pa} \cdot \text{m}^3 \cdot \text{s}^{-1} \] ### **4. Relate to SI Units** Since \(1 \ \text{Pa} \cdot \text{m}^3 = 1 \ \text{J}\) (Joule), we can rewrite: \[ Z = 5.5 \ \text{J} \cdot \text{s}^{-1} \] ### **5. Final Interpretation** Thus, the value of \( Z \) in SI units is: \[ \boxed{Z = 5.5 \ \text{W}} \] where \(1 \ \text{W} = 1 \ \text{J/s}\). ## **Conclusion** Understanding units is crucial in physics and engineering, as it ensures that calculations are accurate and meaningful. Always keep track of unit conversions to maintain the integrity of your results. If you have further questions or need clarification on any point, feel free to ask!
