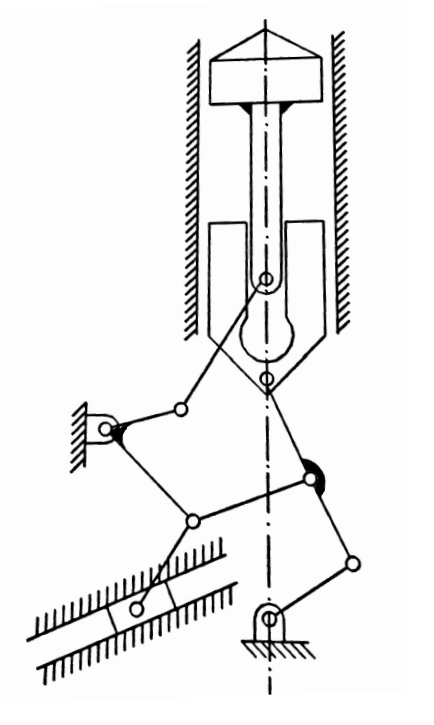

Certainly! It looks like this diagram illustrates a mechanical system, likely a type of linkage or valve mechanism possibly related to fluid control an industrial machine. ### Step-by explanation: 1. **Identify the:** - The top part appears to be a piston or a valve that can move vertically. - The connecting rods link the piston to other parts of the system. - The system includes pivot points (joints) allowing. - There is a spring or fixed support at the bottom of the system. - The inclined component might be a lever or a guide for movement. 2. **Understanding the motion:** - When the piston moves vertically (up or down), it causes the connected linkage to pivot around joints. - These linkages transfer the motion to other parts, possibly opening or closing a valve, or moving a mechanical arm. 3. **Analysis of the linkage:** - The linkage configuration determines how the input movement (at the piston) translates into output movement. - The length of the rods and the position of the pivots control the motion pattern. 4. **Function:** - When the piston moves downward, it pulls or pushes the connected linkage. This movement rotates the joints, causing the other end to move. - system could be designed to convert linear motion of the piston into rotary motion or vice versa. 5. **Final considerations** - The system's effective operation depends on the lengths of the rods, placement pivots, and the initial position. - The design aims to produce a specific movement pattern for the connected parts, such as opening a valve at a particular piston position. ### Final notes: - Without specific numerical data or a detailed description of the problem you want to solve, this is a general explanation of how such a linkage system functions. - If you have a specific question, like calculating displacements, forces, or angles, please provide the details, and I can guide you through the calculations.
