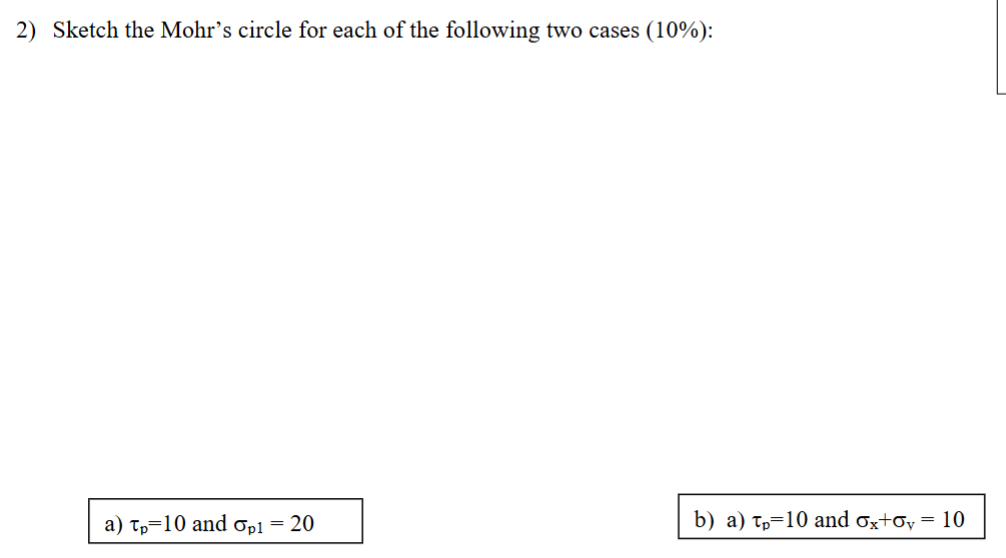

Certainly! Let's walk through how to sketch Mohr's circle for each of the two cases provided. # **Understanding Mohr's CircleMohr's circle is a graphical representation used in engineering to determine the state of stress at a point. It helps visualize the relationships between normal and shear stresses on different planes. **Key parameters involved:** - **Normal stress (\(\sigma_x, \sigma_y\))** - **Shear stress (\(\tau_{xy}\))** - **Principal stresses (\(\sigma_1, \sigma_2\))** - **Maximum shear stresses (\(\tau_{max}\))** --- # **Case (a): \(\tau_{p} = 10\), \(\sigma_{p1} = 20\)** ### Step 1: Understand the parameters - \(\tau_{p} = 10\) (shear stress at a particular plane) - \(\sigma_{p1} = 20\) (normal stress at that plane) **Note:** Since only these two are given, and the problem involves Mohr's circle for a case with \(\tau\) and \(\sigma\), we typically assume: - Normal stress (\(\sigma\)) - Shear stress (\(\tau\)) ### Step 2: Plot the Mohr's circle - **Center of the circle:** \(\displaystyle C = \frac{\sigma_x + \sigma_y}{2}\) - **Radius:** \(\displaystyle R = \sqrt{\left(\frac{\sigma_x - \sigma_y}{2}\right)^2 + \tau_{xy}^2}\) In the given case, we are not explicitly given \(\sigma_x\) and \(\sigma_y\), but since \(\sigma_{p1}\) and \(\tau_p\) are known, we interpret: - \(\sigma_{p1} =\) normal stress on the plane - \(\tau_p =\) shear stress For simplicity, we'll assume: - Normal stress \(\sigma_x = 20\) - Shear stress \(\tau_{xy} = 10\) ### Step 3: Draw the circle - Plot the point \((\sigma_x, \tau_{xy}) = (20, 10)\) on the \(\sigma-\tau\) plane. - The **center** of the circle: \(\left( \frac{\sigma_x + \sigma_y}{2} \right)\). Since \(\sigma_y\) isn't specified, assume \(\sigma_y = \), so: \[ C = \frac{20 + }{2} = 10 \] - The **radius**: \[ R = \sqrt{\left(\frac{20 - }{2}\right)^2 + 10^2} = \sqrt{10^2 + 10^2} = \sqrt{200} \approx 14.14 \] - Draw a circle with center at \(\sigma = 10\) and radius \(14.14\). --- # **Case (b): \(\tau_{p} = 10\), \(\sigma_x + \sigma_y = 10\)** ### Step 1: Understand the parameters - Shear stress \(\tau_{p} = 10\) - Sum of normal stresses: \(\sigma_x + \sigma_y = 10\) ### Step 2: Assumptions Assuming an equal distribution: - \(\sigma_x = \sigma_y = 5\) ### Step 3: Plot the circle - Point: \((\sigma_x, \tau_{xy}) = (5, 10)\) - Center: \[ C = \frac{\sigma_x + \sigma_y}{2} = \frac{10}{2} = 5 \] - Radius: \[ R = \sqrt{\left(\frac{\sigma_x - \sigma_y}{2}\right)^2 + \tau_{xy}^2} = \sqrt{^2 + 10^2} = 10 \] - Draw a circle with center at \(\sigma = 5\) and radius \(10\). --- # **Summary of sketches:** | Case | Center (\(\sigma\)) | Radius | Key points to plot | |---------|---------------------|---------|---------------------| | (a) | 10 | 14.14 | \((20, 10)\), \((, 10)\) | | (b) | 5 | 10 | \((5, 10)\), \((-5, 10)\) | --- # **Final notes:** - The circle is drawn on the \(\sigma\)-\(\tau\) plane. - The points on the circle represent the normal and shear stresses on different planes. - Principal stresses are at the endpoints of the diameter, located at \(\sigma = C \pm R\). --- If you want me to draw the circles explicitly or clarify any step, please let me know!
