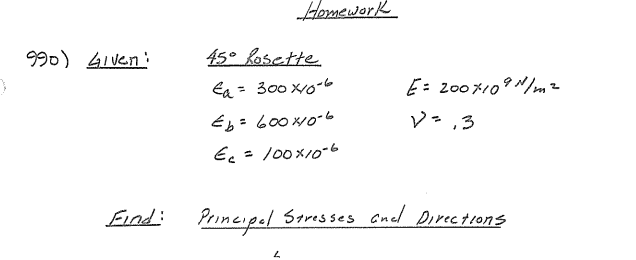

Let's solve the strain rosette problem step by step: --- # **Given Data** - **Strain Gauge Readings (45° Rosette):** - \( \epsilon_a = 300 \times 10^{-6} \) - \( \epsilon_b =600 \times 10^{-6 \) - \( \epsilon_c = 100 \times 10^{-6} \) - **Material Properties:** - \( E = 200 \times 10^9 \) N/m² - \( \nu = .3 \) --- # **Step 1: Find Strains in x, y, and Shear Directions** For a 45° strain rosette: - \( \epsilon_a \): ° - \( \epsilon_b \): 45° - \( \epsilon_c \): 90° Formulas for strains: \[ \epsilon_x = \epsilon_a \] \[ \epsilon_y = \epsilon_c \] \[ \gamma_{xy} = 2(\epsilon_b - \frac{\epsilon_a + \epsilon_c}{2}) \] ### **Plug in the values:** \[ \epsilon_x = 300 \times 10^{-6} \] \[ \epsilon_y = 100 \times 10^{-6} \] \[ \gamma_{xy} = 2\left[600 \times 10^{-6} - \frac{300 \times 10^{-6} + 100 \times 10^{-6}}{2}\right] \] \[ = 2\left[600 \times 10^{-6} - 200 \times 10^{-6}\right] \] \[ = 2 \times 400 \times 10^{-6} \] \[ = 800 \times 10^{-6} \] --- # **Step 2: Find Principal Strains** Principal strains are given by: \[ \epsilon_{1,2} = \frac{\epsilon_x + \epsilon_y}{2} \pm \sqrt{\left(\frac{\epsilon_x - \epsilon_y}{2}\right)^2 + \left(\frac{\gamma_{xy}}{2}\right)^2} \] Plug in the numbers: \[ \frac{\epsilon_x + \epsilon_y}{2} = \frac{300 \times 10^{-6} + 100 \times 10^{-6}}{2} = 200 \times 10^{-6} \] \[ \frac{\epsilon_x - \epsilon_y}{2} = \frac{300 \times 10^{-6} - 100 \times 10^{-6}}{2} = 100 \times 10^{-6} \] \[ \frac{\gamma_{xy}}{2} = \frac{800 \times 10^{-6}}{2} = 400 \times 10^{-6} \] \[ \sqrt{(100 \times 10^{-6})^2 + (400 \times 10^{-6})^2} = \sqrt{(1 \times 10^{-8}) + (16 \times 10^{-8})} = \sqrt{17 \times 10^{-8}} = 4.123 \times 10^{-4} = 412.3 \times 10^{-6} \] **So,** \[ \epsilon_1 = 200 \times 10^{-6} + 412.3 \times 10^{-6} = 612.3 \times 10^{-6} \] \[ \epsilon_2 = 200 \times 10^{-6} - 412.3 \times 10^{-6} = -212.3 \times 10^{-6} \] --- # **Step 3: Calculate Principal Stresses** Using Hooke’s Law for plane stress: \[ \sigma_x = \frac{E}{1-\nu^2} (\epsilon_x + \nu \epsilon_y) \] \[ \sigma_y = \frac{E}{1-\nu^2} (\epsilon_y + \nu \epsilon_x) \] \[ \tau_{xy} = \frac{E}{2(1+\nu)} \gamma_{xy} \] But since we have principal strains, principal stresses: \[ \sigma_{1,2} = \frac{E}{1-\nu^2} \left[ \epsilon_{1,2} + \nu \epsilon_{2,1} \right] \] ### **Calculate:** \[ 1 - \nu^2 = 1 - (.3)^2 = .91 \] \[ \frac{E}{1-\nu^2} = \frac{200 \times 10^9}{.91} = 219.78 \times 10^9 \] \[ \sigma_1 = 219.78 \times 10^9 [612.3 \times 10^{-6} + .3 \times (-212.3 \times 10^{-6})] \] \[ = 219.78 \times 10^9 [612.3 \times 10^{-6} - 63.69 \times 10^{-6}] = 219.78 \times 10^9 \times 548.61 \times 10^{-6} = 219.78 \times 548.61 \times 10^{3} = 120,627 \times 10^{3} = 120.63 \text{ MPa} \] \[ \sigma_2 = 219.78 \times 10^9 [-212.3 \times 10^{-6} + .3 \times 612.3 \times 10^{-6}] \] \[ = 219.78 \times 10^9 [-212.3 \times 10^{-6} + 183.69 \times 10^{-6}] = 219.78 \times 10^9 [-28.61 \times 10^{-6}] = -6,292 \times 10^{3} = -6.29 \text{ MPa} \] --- # **Step 4: Principal Directions** The angle to the principal direction is given by: \[ \tan 2\theta_p = \frac{\gamma_{xy}}{\epsilon_x - \epsilon_y} = \frac{800 \times 10^{-6}}{300 \times 10^{-6} - 100 \times 10^{-6}} = \frac{800 \times 10^{-6}}{200 \times 10^{-6}} = 4 \] \[ 2\theta_p = \tan^{-1}(4) = 75^\circ \implies \theta_p = 37.5^\circ \] --- # **Final Answers** ## **Principal Stresses:** - \( \boxed{120.6\ \text{MPa}} \) - \( \boxed{-6.3\ \text{MPa}} \) ## **Principal Directions:** - \( \boxed{37.5^\circ} \) (from the x-axis/strain gauge 'a' direction) --- If you need a diagram or further explanation, let me know!
