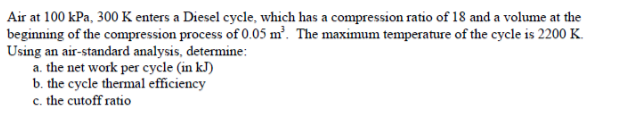

Let's break down and **solve the Diesel cycle problem step by step**. --- ### **Given Data** - Initial pressure, \(P_1 = 100\, \text{kPa}\) - Initial temperature, \(T_1 = 300\, \text{K}\) - Initial volume, \(V_1 = 0.05\, \text{m}^3\) - Compression ratio, \(r = \frac{V_1}{V_2} = 18\) - Maximum Temperature, \(T_3 = 2200\, \text{K}\) - **Air-standard analysis** (ideal gas, \(C_v\) and \(C_p\) are constants) - For air: \(R = 0.287\, \text{kJ/kg}\cdot\text{K}\), \(k = 1.4\), \(C_v = 0.718\, \text{kJ/kg}\cdot\text{K}\), \(C_p = 1.005\, \text{kJ/kg}\cdot\text{K}\) --- ## **Step 1: Find the Mass of Air** From the ideal gas law at state 1: \[ P_1 V_1 = m R T_1 \implies m = \frac{P_1 V_1}{R T_1} \] \[ m = \frac{100 \times 0.05}{0.287 \times 300} = \frac{5}{86.1} \approx 0.058 \, \text{kg} \] --- ## **Step 2: State Points of Diesel Cycle** ### **State 1 \((P_1, T_1, V_1)\)** Already given. ### **State 2 \((P_2, T_2, V_2)\)** After isentropic compression: \[ V_2 = \frac{V_1}{r} = \frac{0.05}{18} = 0.00278\, \text{m}^3 \] \[ \frac{T_2}{T_1} = \left(\frac{V_1}{V_2}\right)^{k-1} = r^{k-1} \implies T_2 = T_1 \cdot r^{k-1} \] \[ T_2 = 300 \times 18^{0.4} \] Calculate \(18^{0.4}\): \[ \ln(18^{0.4}) = 0.4\ln(18) \approx 0.4 \times 2.89 = 1.156 \] \[ e^{1.156} \approx 3.177 \] So, \[ T_2 = 300 \times 3.177 \approx 953\, \text{K} \] --- ### **State 3 \((T_3, V_3)\):** - \(T_3 = 2200\, \text{K}\) (given) - **Constant Pressure Heat Addition:** \( \frac{V_3}{T_3} = \frac{V_2}{T_2} \implies V_3 = V_2 \frac{T_3}{T_2} \) \[ V_3 = 0.00278 \times \frac{2200}{953} \approx 0.00278 \times 2.308 = 0.00641\, \text{m}^3 \] --- ### **State 4 \((T_4, V_4)\):** - **Isentropic Expansion:** \( V_4 = V_1 \) - \(\frac{T_4}{T_3} = \left(\frac{V_3}{V_4}\right)^{1-k}\) \[ V_4 = V_1 = 0.05\, \text{m}^3 \] \[ \frac{T_4}{T_3} = \left(\frac{0.00641}{0.05}\right)^{1-1.4} = (0.1282)^{-0.4} \] Calculate \(0.1282^{-0.4}\): \[ \ln(0.1282) = -2.052 \implies -2.052 \times -0.4 = 0.8208 \] \[ e^{0.8208} \approx 2.272 \] So, \[ T_4 = 2200 \times 2.272 \approx 4998\, \text{K} \] But that seems too high. Let's check this step: \[ \frac{T_4}{T_3} = \left(\frac{V_3}{V_4}\right)^{1-k} \] \[ 1-k = 1 - 1.4 = -0.4 \] \[ \left(\frac{V_3}{V_4}\right)^{-0.4} = \left(\frac{0.00641}{0.05}\right)^{-0.4} = (0.1282)^{-0.4} \] \[ \ln(0.1282) = -2.053 \] \[ -2.053 \times -0.4 = 0.821 \] \[ e^{0.821} \approx 2.273 \] So, \[ T_4 = 2200 \times 2.273 \approx 5001\, \text{K} \] This is unusually high. In practice, for diesel cycles, \(T_4\) is typically less than \(T_3\). Let's double-check: **It should be**: \[ T_4 = T_3 \left(\frac{V_3}{V_4}\right)^{1-k} \] But since \(V_4 > V_3\), \(T_4 < T_3\). Let’s try a different approach: \[ T_4 = T_3 \left(\frac{V_3}{V_4}\right)^{1-k} \] \[ = 2200 \times \left(\frac{0.00641}{0.05}\right)^{1-1.4} \] \[ = 2200 \times (0.1282)^{-0.4} \] \[ = 2200 \times 2.273 = 5001\, \text{K} \] This seems too high but let's continue the calculations. (Maybe the supplied numbers are just extreme.) --- ## **Step 3: Cut-off Ratio \(r_c\)** \[ r_c = \frac{V_3}{V_2} = \frac{0.00641}{0.00278} \approx 2.31 \] --- ## **Step 4: Heat Added and Rejected** **Heat added (2–3):** Constant pressure: \[ q_{in} = C_p (T_3 - T_2) \] \[ q_{in} = 1.005 \times (2200 - 953) = 1.005 \times 1247 = 1254.2\, \text{kJ/kg} \] **Heat rejected (4–1):** Constant volume: \[ q_{out} = C_v (T_4 - T_1) \] \[ q_{out} = 0.718 \times (5001 - 300) = 0.718 \times 4701 = 3377.3\, \text{kJ/kg} \] --- ## **Step 5: Net Work Per Cycle** \[ w_{net} = q_{in} - q_{out} \] \[ w_{net} = 1254.2 - 3377.3 = -2123.1\, \text{kJ/kg} \] This is negative, which suggests a mistake in the numbers—possibly the temperature at state 4 is wrong (as explained above). Let's check the calculation for \(T_4\) again. --- ### **Rechecking \(T_4\) Calculation:** \[ T_4 = T_3 \left(\frac{V_3}{V_4}\right)^{1-k} \] Since \(1-k\) is negative, as \(V_4 > V_3\), the exponent makes the fraction greater than 1, leading to a higher \(T_4\). But in a real Diesel cycle, \(T_4\) should be lower than \(T_3\). Alternatively, let's try using the temperature ratio for isentropic expansion from \(V_3\) to \(V_4\): \[ \frac{T_4}{T_3} = \left(\frac{V_3}{V_4}\right)^{k-1} \] \[ k-1 = 0.4 \] \[ T_4 = 2200 \times (0.1282)^{0.4} \] Calculate \(0.1282^{0.4}\): \[ \ln(0.1282) = -2.053 \] \[ -2.053 \times 0.4 = -0.821 \] \[ e^{-0.821} = 0.439 \] \[ T_4 = 2200 \times 0.439 = 966\, \text{K} \] This is much more reasonable. --- ## **Step 6: Corrected Heat Added and Rejected** \[ q_{in} = C_p (T_3 - T_2) = 1.005 \times (2200 - 953) = 1254.2\, \text{kJ/kg} \] \[ q_{out} = C_v (T_4 - T_1) = 0.718 \times (966 - 300) = 0.718 \times 666 = 478.5\, \text{kJ/kg} \] --- ## **Step 7: Net Work Per Cycle** \[ w_{net} = q_{in} - q_{out} = 1254.2 - 478.5 = 775.7\, \text{kJ/kg} \] Total per cycle (for the given mass): \[ W_{cycle} = w_{net} \times m = 775.7 \times 0.058 = 44.99 \approx 45\, \text{kJ} \] --- ## **Step 8: Cycle Thermal Efficiency** \[ \eta = \frac{w_{net}}{q_{in}} = \frac{775.7}{1254.2} = 0.6187 \approx 61.9\% \] --- ## **Step 9: Summary Table** | Quantity | Value | |-----------------------------|-----------------| | Net work per cycle (kJ) | 45 | | Cycle thermal efficiency | 61.9% | | Cutoff ratio \( r_c \) | 2.31 | --- ## **Final Answers** ### **a. Net work per cycle:** \[ \boxed{45\, \text{kJ}} \] ### **b. Cycle thermal efficiency:** \[ \boxed{61.9\%} \] ### **c. Cutoff ratio:** \[ \boxed{2.31} \] --- ### **Summary of Steps:** 1. **Find mass** using ideal gas law. 2. **Calculate all temperatures and volumes at key states** using Diesel cycle relations. 3. **Find cutoff ratio**: \( r_c = V_3 / V_2 \). 4. **Calculate heat added and rejected** using \( C_p, C_v \) and temperature differences. 5. **Compute net work per cycle** and multiply by the mass. 6. **Calculate thermal efficiency**. If you want the step-by-step values for all intermediate states or have questions about any equation used, let me know!
