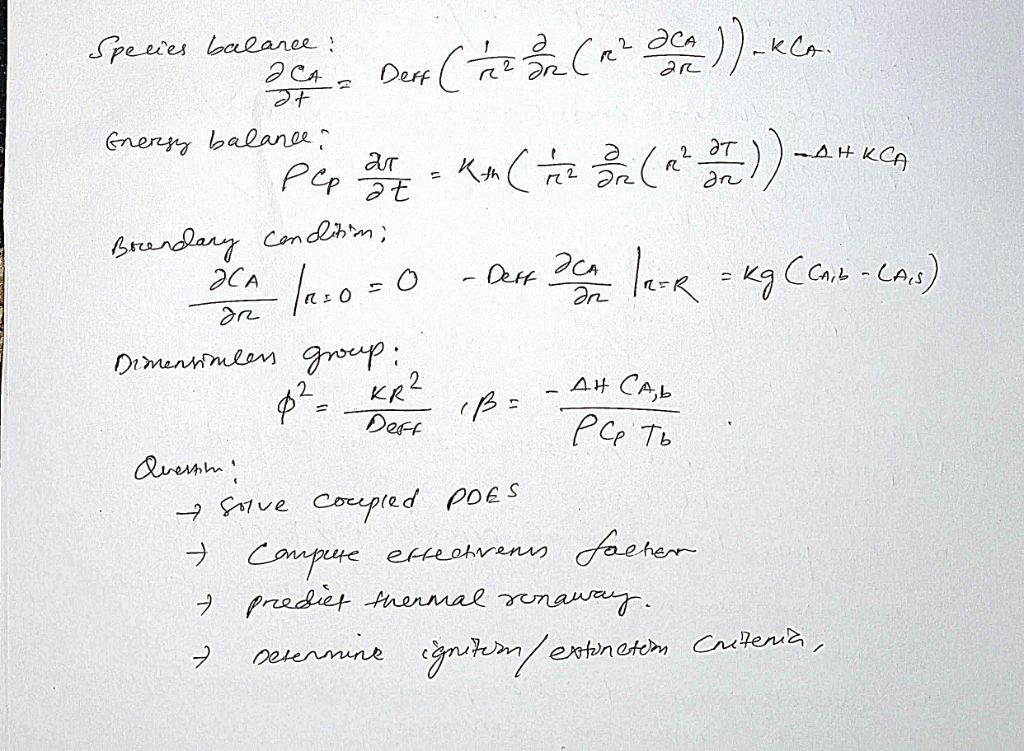

Certainly! Let's break down the provided problem step by step: --- # **Step-by-Step Explanation** ## 1. **Species Balance Equation** \[ \frac{\partial C_A}{\partial t} = D_{eff} \left( \frac{1}{r^2} \frac{\partial}{\partial r} \left( r^2 \frac{\partial C_A}{\partial r} \right) \right) - kC_A \] - **What is this?** This is a partial differential equation (PDE) for a spherical catalyst particle: - \(C_A\): Concentration of A - \(D_{eff}\): Effective diffusivity - \(k\): Reaction rate constant - \(r\): Radial coordinate - **Terms:** - The first term on the right is diffusion in spherical coordinates. - The last term is consumption of A by reaction. --- ## 2. **Energy (Thermal) Balance Equation** \[ \rho C_p \frac{\partial T}{\partial t} = K_{th} \left( \frac{1}{r^2} \frac{\partial}{\partial r} \left( r^2 \frac{\partial T}{\partial r} \right) \right) - \Delta H \, k C_A \] - **What is this?** This equation describes the temperature evolution inside the particle: - \(\rho\): Density - \(C_p\): Heat capacity - \(K_{th}\): Thermal conductivity - \(-\Delta H\): Heat released per mole (if exothermic, \(\Delta H < \)) - The last term is heat generated by the reaction. --- ## 3. **Boundary Conditions** - **At \(r = \) (center):** \[ \left. \frac{\partial C_A}{\partial r} \right|_{r=} = \] (No flux at the center due to symmetry.) - **At \(r = R\) (surface):** \[ -D_{eff} \left. \frac{\partial C_A}{\partial r} \right|_{r=R} = k_g (C_{A,b} - C_{A,s}) \] (Balance between diffusion out of the particle and mass transfer to the bulk.) --- ## 4. **Dimensionless Groups** - **Thiele Modulus (\(\phi^2\)):** \[ \phi^2 = \frac{k R^2}{D_{eff}} \] (Ratio of reaction rate to diffusion rate.) - **Dimensionless Heat Generation (\(\beta\)):** \[ \beta = -\frac{\Delta H\, C_{A,b}}{\rho C_p T_b} \] (Ratio of heat generated by reaction to heat that can be absorbed.) --- ## 5. **Tasks (Questions to Solve)** 1. **Solve Coupled PDEs:** - The species and energy balances are coupled (since \(C_A\) appears in both). - Typically solved numerically. 2. **Compute Effectiveness Factor (\(\eta\)):** - \(\eta = \frac{\text{Actual reaction rate}}{\text{Rate if no diffusion limitation}}\) 3. **Predict Thermal Runaway:** - If heat generation exceeds heat removal, temperature increases rapidly (runaway). 4. **Determine Ignition/Extinction Criteria:** - Conditions where multiple steady states exist (thermal ignition/extinction). --- # **Summary Table** | Step | Equation / Action | |--------------------------|---------------------------------------------------------------------------------------------------| | Species balance | \( \frac{\partial C_A}{\partial t} = D_{eff} \left( \frac{1}{r^2} \frac{\partial}{\partial r} ( r^2 \frac{\partial C_A}{\partial r} ) \right) - k C_A \) | | Energy balance | \( \rho C_p \frac{\partial T}{\partial t} = K_{th} \left( \frac{1}{r^2} \frac{\partial}{\partial r} ( r^2 \frac{\partial T}{\partial r} ) \right) - \Delta H k C_A \) | | Boundary at \( r= \) | \( \left. \frac{\partial C_A}{\partial r} \right|_{r=} = \) | | Boundary at \( r=R \) | \( -D_{eff} \left. \frac{\partial C_A}{\partial r} \right|_{r=R} = k_g (C_{A,b} - C_{A,s}) \) | | Thiele modulus | \( \phi^2 = \frac{k R^2}{D_{eff}} \) | | Dimensionless heat group | \( \beta = -\frac{\Delta H\, C_{A,b}}{\rho C_p T_b} \) | --- # **Final Notes** - **Solving the PDEs:** - Use numerical methods (finite difference, finite element, or built-in solvers in MATLAB/Python). - **Effectiveness factor:** - Compare the integral of reaction rate over the volume to the rate if \(C_A = C_{A,s}\) everywhere. - **Thermal Runaway:** - Check if temperature increases without bound for given parameters. - **Ignition/Extinction:** - Analyze steady-state solutions for existence and stability. --- If you want to see how to **nondimensionalize** these equations or solve for a specific case (e.g., steady-state, isothermal, first-order reaction), let me know!
