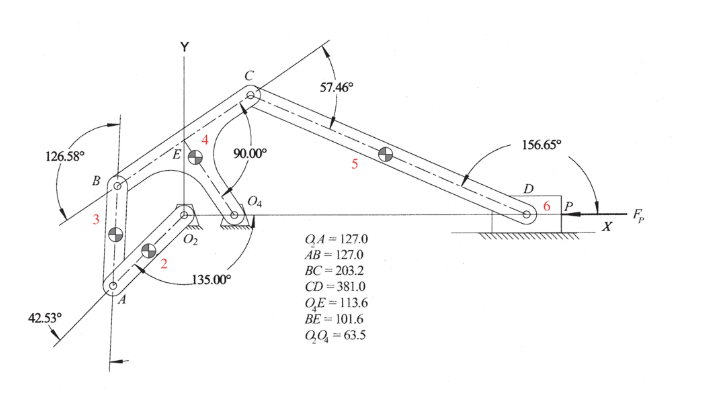

# Calculating the Mobility (Degrees of Freedom) of the Linkage Let's break down the process **step by step**. --- ## **Step 1: Identify the Mechanism Type** This is a **planar mechanism** (all motion is in a single plane). --- ## **Step 2: Count the Number of Links (L)** - Each rigid body is a **link**. - Include the **frame** (ground) as one link. ### **From the diagram:** Let's number the links as marked: 1. Frame (ground) 2. Link 2 3. Link 3 4. Link 4 5. Link 5 6. Link 6 **Total Links, L = 6** --- ## **Step 3: Count the Number of Joints (J)** - Each **pin (revolute)** or **sliding (prismatic)** joint counts as 1. - Only count joints that connect two links. ### **From the diagram:** Let's list the joints (marked by circles): - O2 (pin joint) - A (pin joint) - B (pin joint) - E (pin joint) - O4 (pin joint) - C (pin joint) - D (pin joint) - P (pin joint) **Total Joints, J = 8** --- ## **Step 4: Use Gruebler’s Equation (Planar Mechanisms)** The general equation for planar mechanisms is: \[ M = 3(L - 1) - 2J \] where: - \( M \) = Mobility (degrees of freedom) - \( L \) = Number of links - \( J \) = Number of lower pairs (single-dof joints; here, all are revolute) --- ## **Step 5: Plug in the Numbers** Substitute the counted values: \[ M = 3(6 - 1) - 2 \times 8 \] \[ M = 3 \times 5 - 16 \] \[ M = 15 - 16 \] \[ M = -1 \] --- ## **Step 6: Interpretation** - **M = -1** means the mechanism is **over-constrained** (a structure, not a mechanism), or there could be a counting error (e.g., redundant links or joints). - Sometimes, additional constraints (such as fixed sliders) or special cases (coincident joints) can affect the count. ### **Double-check:** - Are any links *grounded* twice (e.g., two fixed pivots on the same link)? - Are there redundant or multiple joints at a single location? --- ## **Summary Table** | Item | Count | |-----------------|-------| | Links (L) | 6 | | Joints (J) | 8 | | Mobility (M) | -1 | --- ## **Conclusion** > **The calculated mobility using the basic Gruebler equation is -1, indicating a structure rather than a mechanism. Review the actual physical connections to check for redundant constraints or special cases, or provide more details if possible!** --- ### **Questions?** If you want to analyze a specific part of the mechanism or need more details, let me know!
