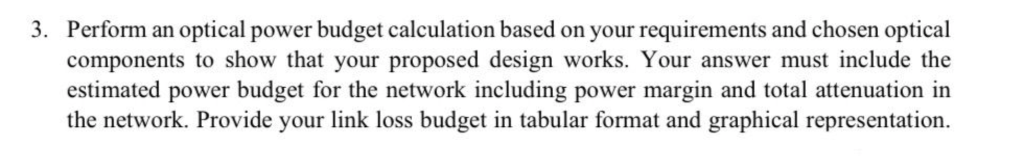

Certainly! Let me **explain the requirement and guide you step-by-step** on how to perform an optical power budget calculation for an optical network. --- ## What is an Optical Power Budget? An **optical power budget** is a calculation to ensure that the optical signal remains strong enough from the transmitter to the receiver, even after accounting for all the losses (attenuation) in the optical path. This ensures your design will work reliably. --- ## Key Steps ### 1. **List All Optical Components and Their Losses** - **Fiber cable:** Loss per km (e.g., .35 dB/km for SMF at 131 nm) - **Connectors:** Each has a loss (e.g., .5 dB per connector) - **Splices:** Each has a loss (e.g., .1 dB per splice) - **Other devices:** Splitters, couplers, etc. ### 2. **Calculate Total Attenuation (Link Loss Budget)** Add all the losses together: \[ \text{Total Attenuation (dB)} = \text{Fiber Loss} + \text{Connector Loss} + \text{Splice Loss} + \text{Other Losses} \] ### 3. **Determine Transmitter Power and Receiver Sensitivity** - **Transmitter Output Power** (e.g., -2 dBm) - **Receiver Sensitivity** (e.g., -20 dBm) ### 4. **Calculate Power Budget** \[ \text{Power Budget (dB)} = \text{Transmitter Power (dBm)} - \text{Receiver Sensitivity (dBm)} \] ### 5. **Include Power Margin** Add a *power margin* (safety buffer) for aging, repairs, and future losses (typically 3-6 dB). ### 6. **Check if Your Design Works** \[ \text{Power Budget} > \text{Total Attenuation} + \text{Power Margin} \] If true, your design works. --- ## Example (with Table and Graph) ### **Assumptions** - **Fiber length:** 10 km - **Fiber attenuation:** .35 dB/km - **Connectors:** 2 (one at each end, .5 dB each) - **Splices:** 3 (.1 dB each) - **Transmitter Power:** -2 dBm - **Receiver Sensitivity:** -20 dBm - **Power Margin:** 3 dB ### **Tabular Format** | Component | Quantity | Loss per Unit (dB) | Total Loss (dB) | |---------------|----------|--------------------|-----------------| | Fiber | 10 km | .35 | 3.5 | | Connectors | 2 | .5 | 1. | | Splices | 3 | .1 | .3 | | **Total Loss**| | | **4.8** | ### **Power Budget Calculation** - Power budget = Transmitter power - Receiver sensitivity = (-2) - (-20) = **18 dB** - Required margin = 4.8 dB (total loss) + 3 dB (margin) = **7.8 dB** Since **18 dB > 7.8 dB**, your link works. ### **Graphical Representation** You can create a simple bar chart: ```plaintext |----------------------------| | Power (dB) | |----------------------------| | Transmitter: -2 dBm | | After Fiber: -5.5 dBm | | After Connectors: -6.5 dBm | | After Splices: -6.8 dBm | | Margin: -9.8 dBm | | Receiver Sens.: -20 dBm | |----------------------------| ``` Or, plot the cumulative loss along the link length on a graph. --- ## **Summary** 1. List all losses (fiber, connectors, splices, etc.) 2. Calculate total attenuation. 3. Compute your power budget. 4. Add a safety margin. 5. Ensure your power budget covers total losses + margin. 6. Present in both tabular and graphical format. --- **Let me know if you want a worked-out example with your own numbers or specific components!**
