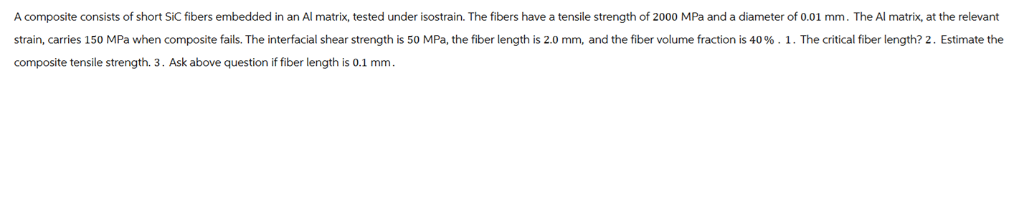

Question:
A composite consists of short SiC fibers embedded in an Al matrix, tested under isostrain. The fibers have a tensile strength of
2
0
0
0
MPa and a diameter of
0
.
0
1
mm
.
The Al matrix, at the relevant strain, carries
1
5
0
MPa when composite fails. The interfacial shear strength is
5
0
MPa, the fiber length is
2
.
0
mm
,
and the fiber volume fraction is
4
0
%
.
1
.
The critical fiber length?
2
.
Estimate the composite tensile strength.
3
.
Ask above question if fiber length is
0
.
1
mm
.
A composite consists of short SIC fibers embedded in an Al matrix, tested under isostrain. The fibers have tensile strength of 2000 MPa and a diameter of 0.01 mm. The Al matrix, at the relevant
strain, carries 150 MPa when composite fais. The interfacial shear strength is 50 MPa, the fiber length is 2.0 mm, and the fiber volume fraction is 40% . 1. The critcal fiber length? 2. Estimate the
composite tensile strength. 3. Ask above question if fiber length s 0.1 mm
This is AI generated Response.
Asked by: PREMKUMAR
Created at: 2025-10-02 10:02:03
Asked by: PREMKUMAR
Created at: 2025-10-02 10:02:03
Thought Process:
Rendered
Raw Text
**Calculating critical fiber length**
I need to solve for the critical fiber length with short fibers under isostrain conditions. Given the fiber tensile strength, diameter, and matrix stress, I can use the formula for critical fiber length. It involves the fiber's tensile strength, diameter, and interfacial shear strength.
So, I’ll compute it as l_c = (σ_f* d) / (2 τ_i). Plugging in the numbers gives me l_c = (2000 * 0.01) / (2 * 50) mm, which simplifies down. I need to double-check my math, though!**Estimating composite tensile strength**
I’m calculating the composite tensile strength using the rule of mixtures, considering that the fibers are short rather than continuous. I want to use the fiber efficiency factor for length under isostrain conditions. Here, the composite stress at failure can be represented by σ_c,u = V_f σ_f,eff + (1 - V_f) σ_m,u.
Since the aluminum matrix carries 150 MPa when the composite fails, I'll set σ_m to 150 MPa. Now, I need to find the average fiber stress for fibers that are 2 mm long compared to the critical length of 0.2 mm.**Analyzing average fiber stress**
I'm considering the average fiber stress at failure for short fiber composites under isostrain conditions, particularly when the fiber length is greater than or equal to the critical length.
For fibers in this scenario, the maximum stress at the center can reach the fiber strength, but the average stress will be less than that. The average fiber stress can be calculated using the formula σ_f,avg = σ_f* (1 - l_c / (2 l)). I’m trying to relate this formula to shear transfer and stress distribution under perfect bonding. Now, I think I need to ensure clarity about how the average stress correlates with matrix failure!**Applying Kelly-Tyson model**
I'm examining the approximate formulas from Kelly and Tyson regarding the average fiber stress for aligned fibers longer than the critical length. When the fiber length is greater than l_c, I have σ_f,avg = σ_f* (1 - l_c/(2l)). But for fibers shorter than or equal to l_c, it changes to σ_f,avg = (σ_f*/l_c) l / 2.
I want to confirm the derivation, which involves the stress increasing from the ends due to interfacial shear and how the average fiber stress relates to the fiber length with the factor of d. Following the standard formula for stress along the fiber seems essential too!**Calculating composite strength and efficiency factor**
I've derived the average fiber stress for fibers based on their length, using Kelly and Tyson's model. For fibers longer than the critical length, the average stress aligns with the maximum, while for shorter lengths, the average is half the maximum.
Now, I can compute the composite tensile strength, considering both fiber and matrix stresses. The efficiency factor helps adjust the average stress based on fiber length. With fiber length at 2 mm and critical length at 0.2 mm, the efficiency factor checks out as 0.95. So, composite strength gives about 850 MPa, but I also need to see the effect if the fiber length changes to 0.1 mm.**Finalizing composite strength calculations**
Okay, I've established that with the fiber length of 0.1 mm, which is less than the critical length of 0.2 mm, I can compute the average fiber stress to be 500 MPa using the efficiency factor. Now, I address whether the matrix stress at relevant strain remains at 150 MPa, and it seems we can assume this holds true for both cases.
Next, I'll calculate the composite strength using both methods. For the lengths I have — 2 mm and 0.1 mm — I’ll derive the efficiency factors, then summarize the composite strengths as approximately 850 MPa for the longer fibers and 290 MPa for the shorter ones. To ensure clarity, I will present my findings succinctly, including all necessary formulas and disclaimers on assumptions regarding the fiber alignment and failure mechanisms.
Final Answer:
Rendered
Raw Text
Did you like this answer?
Given
- Fiber tensile strength σf* = 2000 MPa
- Fiber diameter d = 0.01 mm
- Interfacial shear strength τi = 50 MPa
- Fiber length l = 2.0 mm (and later 0.1 mm)
- Fiber volume fraction Vf = 0.40
- Matrix stress at composite failure σm = 150 MPa
- Isostrain loading; aligned short fibers.
Useful relations (Kelly–Tyson model)
- Critical fiber length: lc = σf* d / (2 τi)
- Length efficiency factor:
• If l ≥ lc: ηl = 1 − lc/(2l)
• If l ≤ lc: ηl = l/(2lc)
- Composite strength: σc ≈ Vf ηl σf* + (1 − Vf) σm
1) Critical fiber length
lc = (2000 MPa × 0.01 mm) / (2 × 50 MPa) = 0.2 mm
2) Composite tensile strength with l = 2.0 mm
- l/lc = 2.0/0.2 = 10 > 1, so ηl = 1 − lc/(2l) = 1 − 0.2/(4) = 0.95
- σc = 0.40 × 0.95 × 2000 + 0.60 × 150 = 760 + 90 = 850 MPa
3) If fiber length l = 0.1 mm
- l/lc = 0.1/0.2 = 0.5 < 1, so ηl = l/(2lc) = 0.1/(0.4) = 0.25
- σc = 0.40 × 0.25 × 2000 + 0.60 × 150 = 200 + 90 = 290 MPa
Answers
1) lc = 0.2 mm
2) σc ≈ 850 MPa (with 2.0 mm fibers)
3) σc ≈ 290 MPa (if the fibers are only 0.1 mm long)
