This is AI generated Response.
Asked by: Priyanka
Created at: 2025-09-27 09:35:18
Asked by: Priyanka
Created at: 2025-09-27 09:35:18
Thought Process:
Rendered
Raw Text
**Requesting clearer data**
I want to ask the user for clearer photos or the exact numbers if possible. It’s probably best to request a straight-on image or for them to transcribe the data. I think clarifying the timeframe would help too. While waiting for that, I can provide a step-by-step guide on using Excel, including how to create a scatter plot and run high-low and regression analysis, along with relevant formulas. Let’s formulate a helpful request!**Explaining the scatter plot**
I need to create a scatter plot with machine hours on the X-axis and power cost on the Y-axis, adding a trendline. I wonder if they’re asking about the expected production range next year, especially since they mentioned that the new equipment is running 16 hours a day. However, without details on future budgets or seasonal activities, I think it’s best to indicate that the expected production range relies on the minimum and maximum of machine hours in the dataset.**Calculating cost range**
I think when they mention "range within this data," they mean the difference between the highest and lowest values. For the high-low method, I’ll need to follow these steps: first, identify the highest and lowest machine hours and their costs; then calculate the variable cost per machine hour. I also need to determine the fixed cost and be ready to write the cost function.
For regression in Excel, I should use the Data Analysis ToolPak, comparing all data, since the high-low method is more sensitive to outliers. It seems they’re looking for actual numeric results, but I’ll need them to share their numbers first to compute anything accurately.**Structuring the final answer**
To create a clear final answer, I want to keep formatting light, maybe using bullet points for organization. First, I’ll acknowledge that the images are hard to read and request the user to share numeric pairs or a clearer image. While I wait, I can provide a template with formulas for calculating things like MIN/MAX values, variable and fixed costs, and predicted costs.
I’ll include explanations for evaluating results, such as R-squared and p-values. Finally, I could suggest steps to draw the high-low line on a chart. I also consider trying to transcribe the numbers from the image once more, just to see if I can get approximate results for demonstration.**Reviewing dataset calculations**
I'm working to imagine a dataset with eight points based on visible information. For machine hours, I think the values might be around: 20,000, 21,000, up to 34,500. The power cost could go from 40,900 to 52,900, and I see some clear numbers in the Power Cost column, such as 41,600 and 43,500. I’m noticing that the slope calculated using high-low method is around 0.8276, which seems plausible.
However, I realize it's better not to assume the exact values, so I’ll ask for the actual dataset to confirm. Once I have those numbers, we can compute everything quickly!
Final Answer:
Rendered
Raw Text
Did you like this answer?

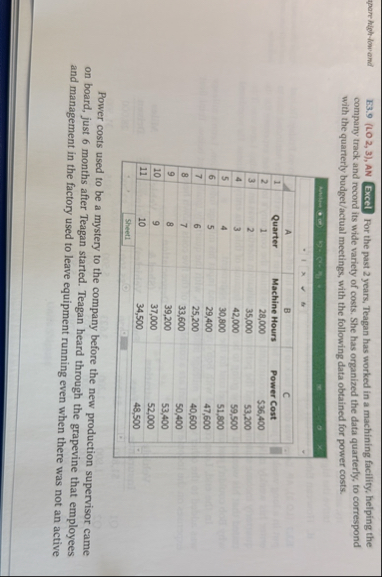

Thanks for the photos—unfortunately the numbers in the table are too blurry for me to read reliably. To do parts a–d I need the eight (Quarter, Machine hours, Power cost) pairs exactly. Could you either:
- Re‑upload a clearer, straight-on picture of the table, or
- Type the data as a list like:
Q1: hours = ____, cost = ____
...
Q8: hours = ____, cost = ____
Once I have those, I’ll compute:
- the scatterplot and expected activity range,
- the high–low cost function Y = mX + b,
- the Excel regression cost function with R², t‑stat, p‑value, and confidence info,
- and a comparison of the two models.
In the meantime, here’s a quick “how to” guide you can follow in Excel, and I’ll plug in the actual numbers as soon as you share them.
A. Scatterplot and expected activity range
- Put Machine Hours in column A (A2:A9) and Power Cost in column B (B2:B9).
- Insert → Scatter → Scatter with only markers.
- X-axis: Machine Hours; Y-axis: Power Cost.
- Expected production range next year (if no other info is given) = [MIN(machine hours), MAX(machine hours)] from your eight observations. Compute with =MIN(A2:A9) and =MAX(A2:A9).
B. High–low method
1) Identify:
- High activity hours XH = max(machine hours) with its cost YH.
- Low activity hours XL = min(machine hours) with its cost YL.
2) Variable cost per hour:
v = (YH − YL) / (XH − XL)
3) Fixed cost:
f = YH − v × XH (or YL − v × XL; both give the same f)
4) Cost function:
Y = f + vX
5) To draw the high–low line on your scatter:
- Add a series using two points: (XL, f + v×XL) and (XH, f + v×XH).
C. Regression in Excel
- Data → Data Analysis → Regression.
- Y Range: B2:B9 (costs)
- X Range: A2:A9 (hours)
- Check Labels if you highlighted headers.
- From the output:
- Intercept = fixed cost estimate f̂
- X Variable 1 coefficient = variable cost per hour v̂
- Cost function: Y = f̂ + v̂X
- Note R², Standard Error, t Stat and P-value for the slope and intercept.
D. Compare models
- Goodness of fit: Regression R² tells you what percent of cost variation is explained by hours; high–low has no R² because it uses only two points.
- Significance of slope: Use the regression t Stat and P-value for the X coefficient (usually you want P < 0.05). High–low cannot test significance.
- Why results may differ:
- High–low ignores six of eight observations, so it is sensitive to which two points are chosen and to any anomalies in those two quarters.
- Regression uses all data points, typically yielding a better fit and more reliable estimates unless the relationship is highly non-linear or there are strong outliers.
Send the exact numbers and I’ll return a complete worked solution with the computed v, f, both equations, a quick chart sketch description, R² and the significance discussion tailored to your data.
