This is AI generated Response.
Asked by: Md Israrul Haque
Created at: 2025-10-21 22:51:40
Asked by: Md Israrul Haque
Created at: 2025-10-21 22:51:40
Final Answer:
Rendered
Raw Text
Did you like this answer?

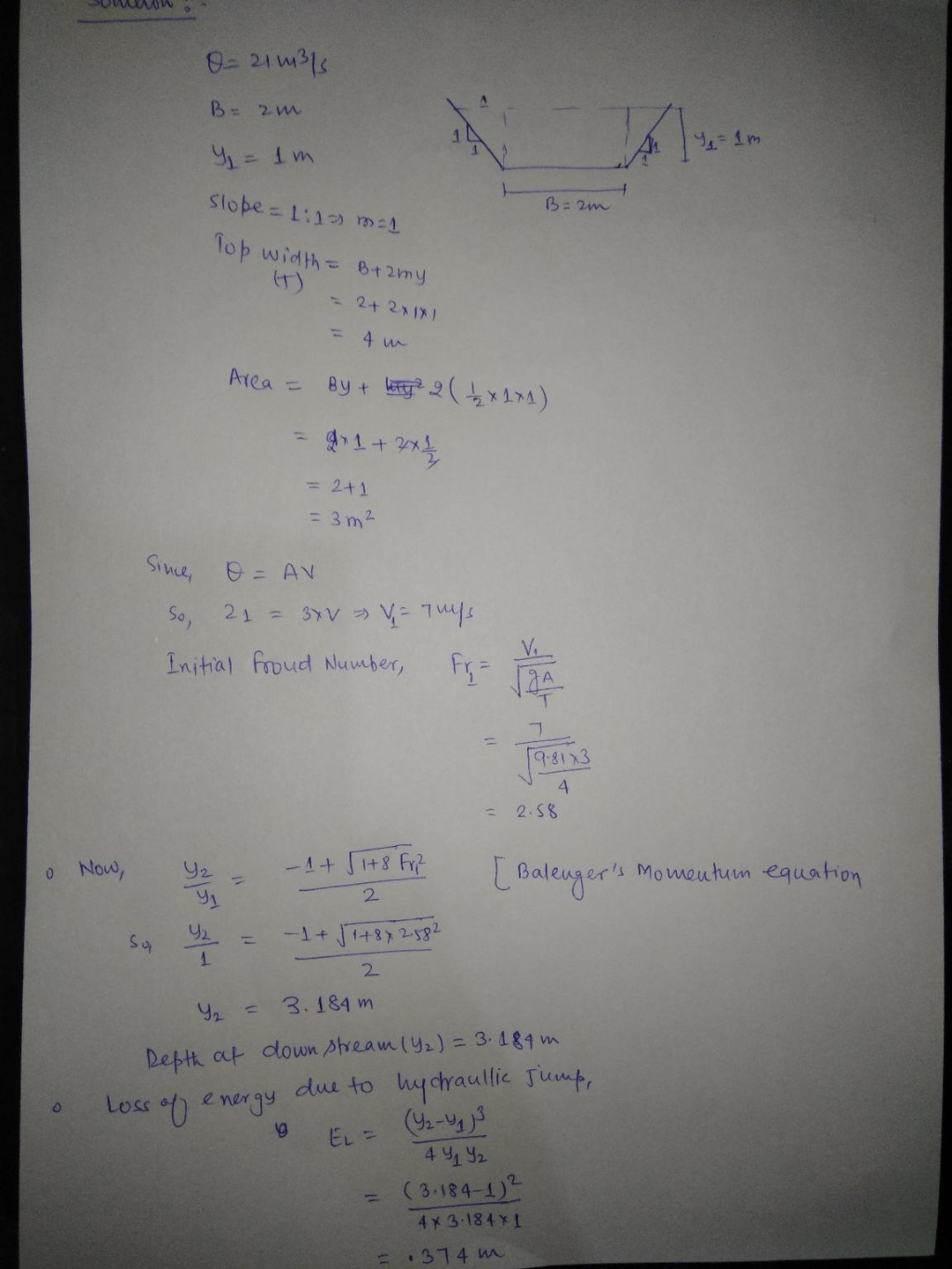

The images contain handwritten notes and calculations related to physics, specifically energy, velocity, and fluid mechanics.
### Summary of Key Calculations
#### First Image:
- **Given Data:**
- \(\theta = 21^\circ\)
- \(B = 2\,m\)
- \(y_1 = 1\,m\)
- Slope = 1:1 (i.e., \(n = 1\))
- **Top width:**
\[
\text{Top width} = B + 2 \times y_1 = 2 + 2 \times 1 = 4\,m
\]
- **Area:**
\[
\text{Area} = B \times y_1 + 2 \times \left(\frac{1}{2} \times y_1 \times x\right) = 2 \times 1 + 2 \times \frac{1}{2} \times 1 \times 1 = 2 + 1 = 3\,m^2
\]
- **Velocity (\(V_1\)):**
\[
s_ = 21^\circ \Rightarrow V_1 = 7\,m/s
\]
- **Initial Froude Number (\(Fr_1\)):**
\[
Fr_1 = \frac{V_1}{\sqrt{gA}} = \frac{7}{\sqrt{9.81 \times 3}} \approx 2.58
\]
- **Froude number ratio:**
\[
\frac{y_2}{y_1} = \frac{-1 + \sqrt{1 + 8 \times Fr_1^2}}{2} \approx 3.184\,m
\]
- **Depth at downstream (\(y_2\)):**
\[
y_2 \approx 3.184\,m
\]
- **Energy loss due to hydraulic jump:**
\[
E_L = \frac{(y_2 - y_1)^2}{4 \times y_2 \times y_1} \approx .374\,m
\]

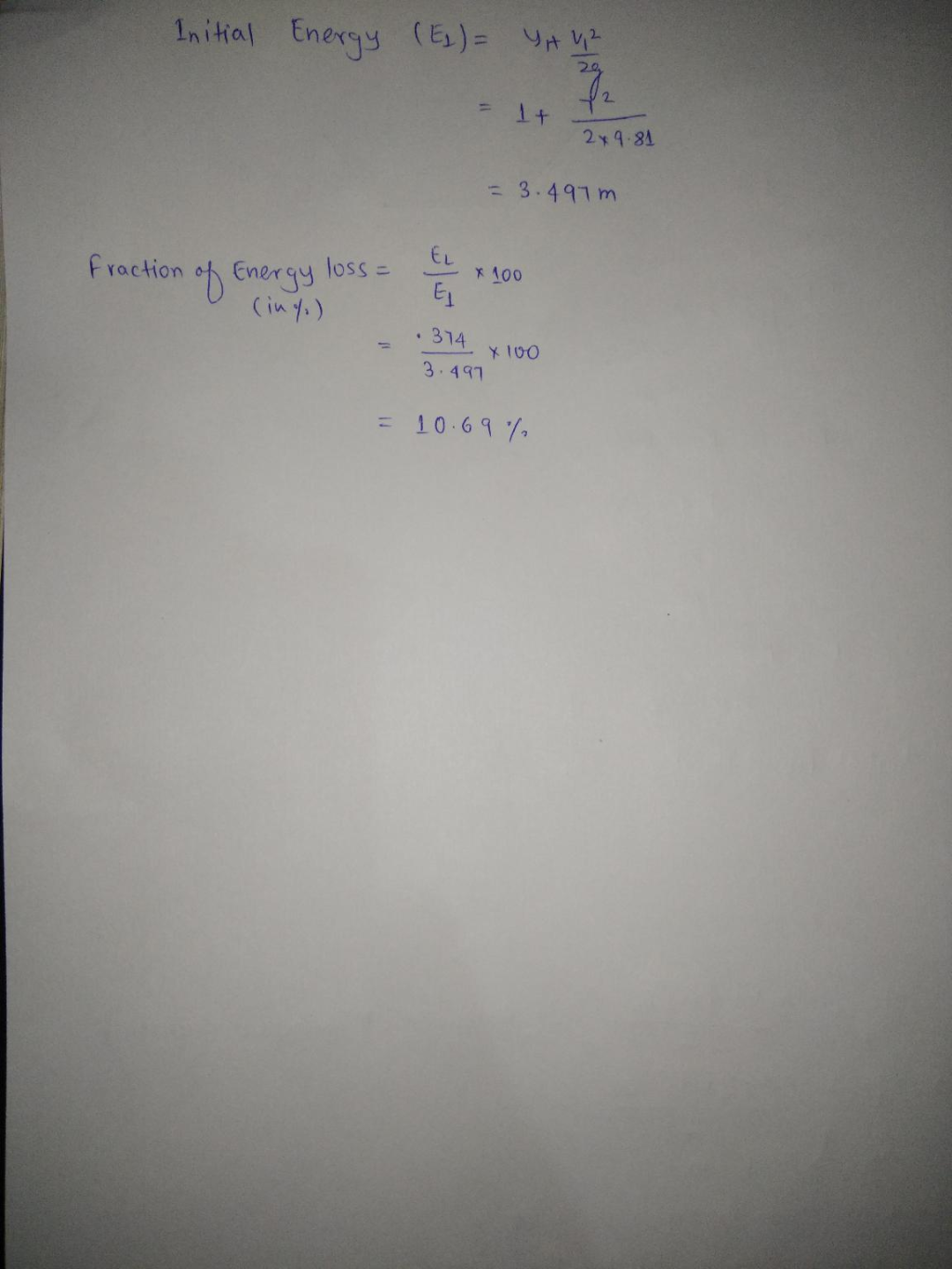

- **Energy loss as a fraction:**
\[
\text{Fraction of energy loss} \approx 10.69\%
\]
---
### Summary of Focus:
- Calculation of flow parameters such as velocity, depth, and energy loss
- Use of Bernoulli's equation and Froude number relationships
- Hydraulic jump analysis
Let me know if you'd like a detailed step-by-step explanation or specific part clarified!
