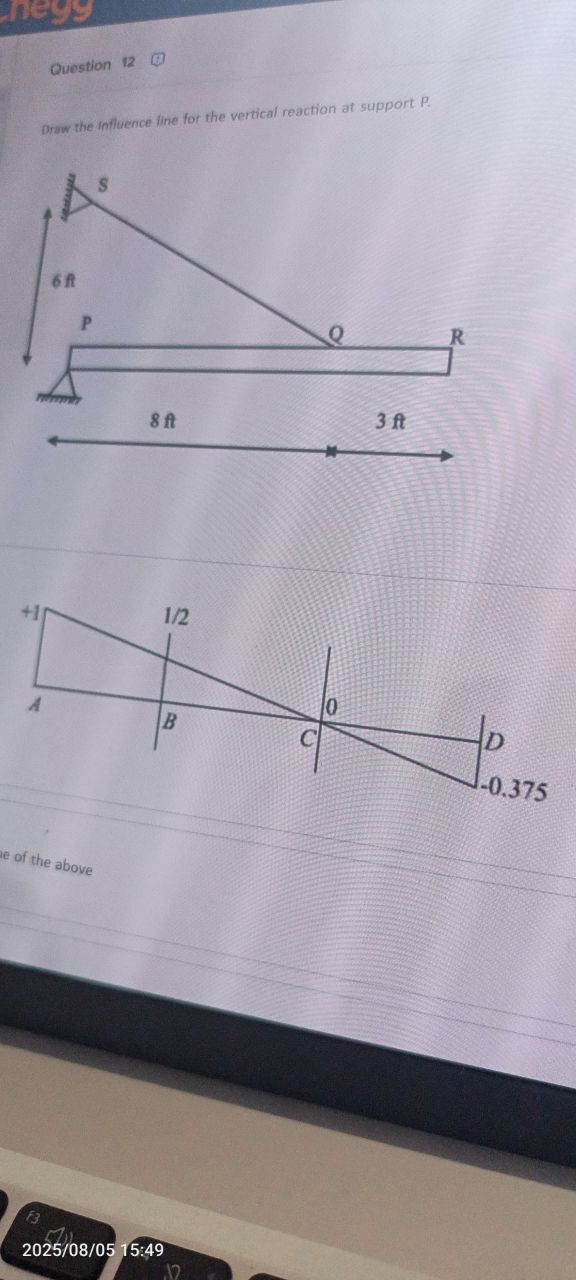

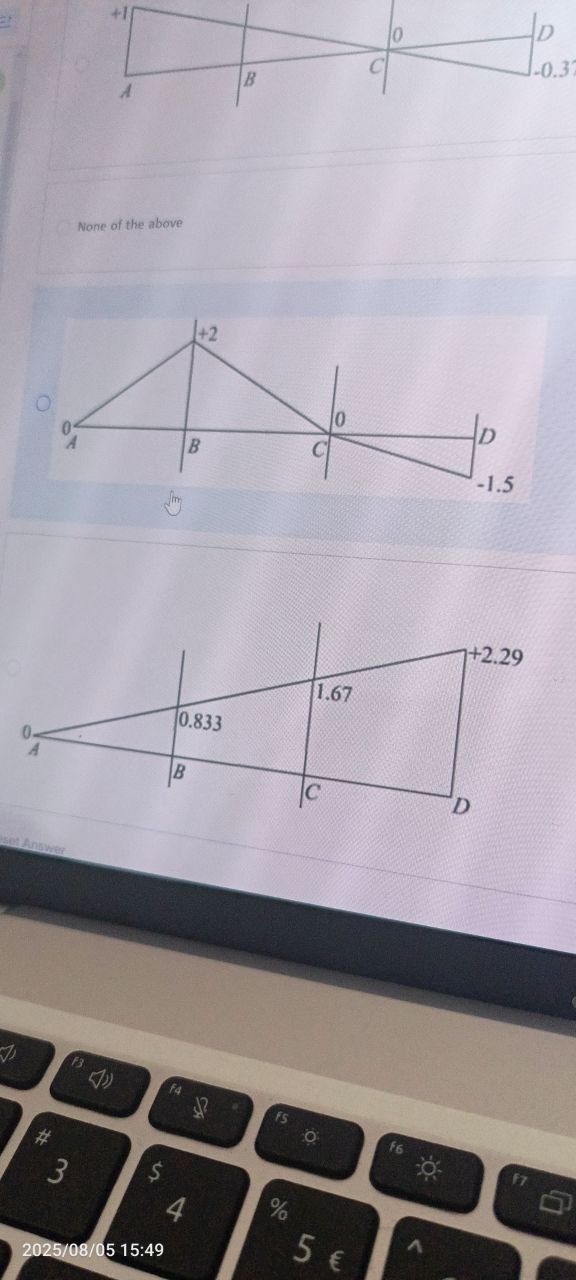

Let's analyze the problem and the options: ### Problem Recap You are asked to **draw the influence line for the vertical reaction at support P** for the given structure. ### Understanding the Structure - **P** is a support (likely a pin or hinge). - **PR** is a horizontal beam (8 ft + 3 ft = 11 ft total). - **S** is above **P** and is connected to **Q** by a link. - **Q** is on the beam, 8 ft from P, and 3 ft from R. ### What is an Influence Line? An influence line shows how a reaction (or internal force) at a specific point changes as a unit load moves across the structure. ### For a Simple Beam (P-R): If P is a pin and R is a roller, the influence line for the vertical reaction at P would start at **1** at P (if the load is at P, all load is taken by P), and drop linearly to **0** at R (if the load is at R, P takes none of it). ### For this Structure: Because of the link from S to Q, the influence line will be altered, especially at Q. ### Reviewing the Options: #### Option 1 (First Image, Top Diagram) - Starts at +1 at A (P), - Drops to 1/2 at B, - 0 at C, - Drops to -0.375 at D. #### Option 2 (First Image, Bottom Diagram) - Starts at +2 at B, - 0 at C, - -1.5 at D. #### Option 3 (Second Image, Bottom Diagram) - Starts at 0 at A, - 0.833 at B, - 1.67 at C, - 2.29 at D. --- ### Correct Answer Considering the structure (a beam with a pin at P, a roller at R, and a link at Q), the influence line for the vertical reaction at P: - Should be **1** at P (A). - Should drop linearly to **0** at R (D), unless the presence of the link at Q changes the distribution, but it should not create values greater than 1 (unless the geometry creates a moment that increases the reaction at P for some positions). - The influence line should typically **cross zero at the location of a roller or free end**. So, **Option 1 (First image, top)** is the most reasonable: - +1 at P (A), - 1/2 at B (somewhere between P and Q), - 0 at C (likely at R), - negative after (D) due to the geometry. #### **Final Answer:** **The correct influence line is the first option (first image, top diagram):** ``` +1 at A, 1/2 at B, 0 at C, -0.375 at D ``` This matches the expected behavior for a reaction influence line at a support, considering the structure's geometry.
